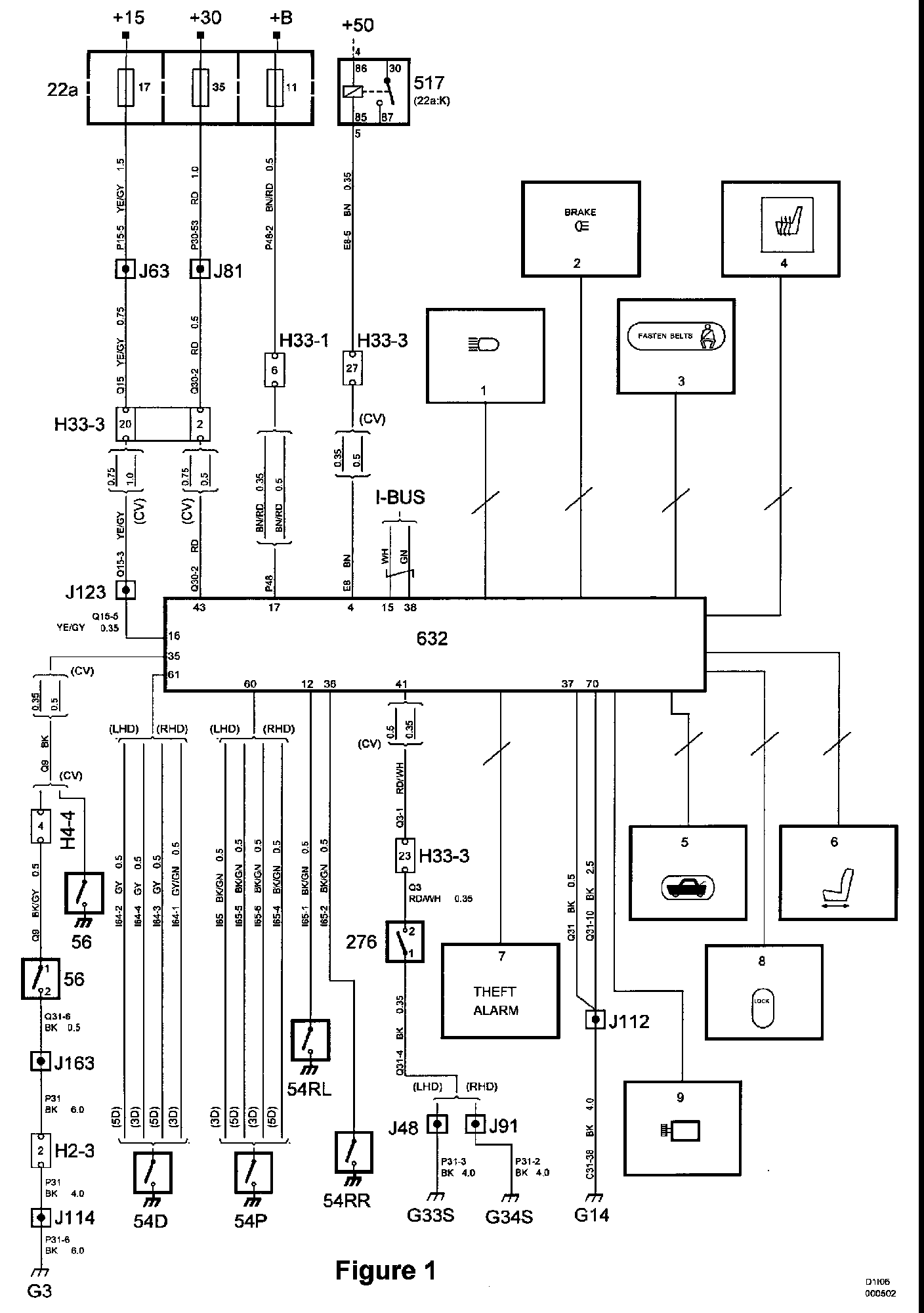

TWICE




TWICE







1. Parking lights
2. Brake light
3. Seatbelt warning
4. Electrically heated rear seat
5. Electric luggage compartment opening
- Electric luggage compartment opening 3D/5D
- Electric luggage compartment opening Convertible
6. Electrically adjustable passenger seat
- Electrically adjustable passenger seat, LHD
- Electrically adjustable passenger seat, RHD
7. Anti-theft alarm
- Anti-theft alarm 3D/5D
- Anti-theft alarm, Convertible
8. Central locking
- Central locking system 3D/5D LHD
- Central locking system, 3D/5D RHD
- Central locking system, Convertible LHD
- Central locking system, Convertible RHD
9. Starting system with immobilizer


Part 1:






Part 2:






Part 3:
