9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Main Instrument Unit For Petrol Cars (540D)
Main Instrument Unit For Petrol Cars (540D)
Main instrument unit for petrol cars (540d)

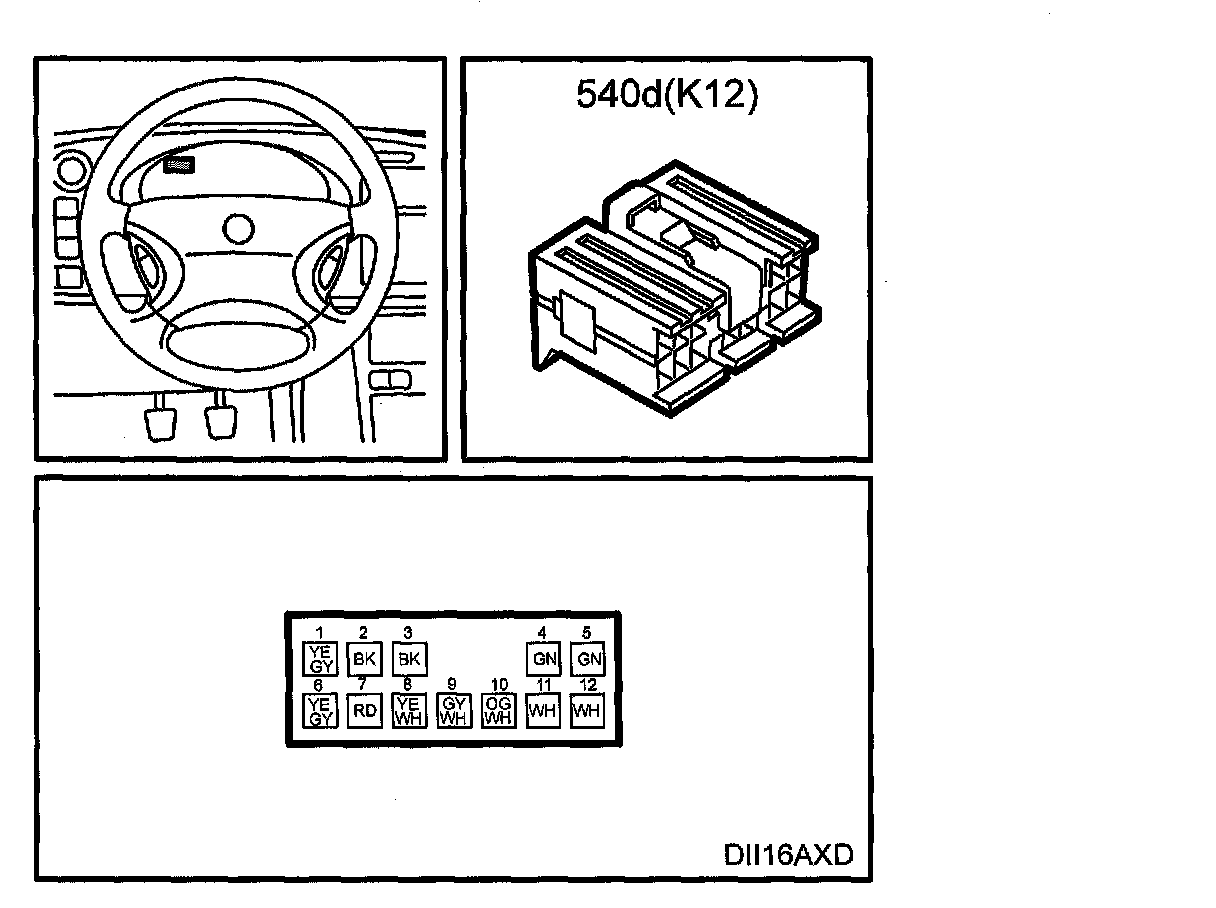

K12

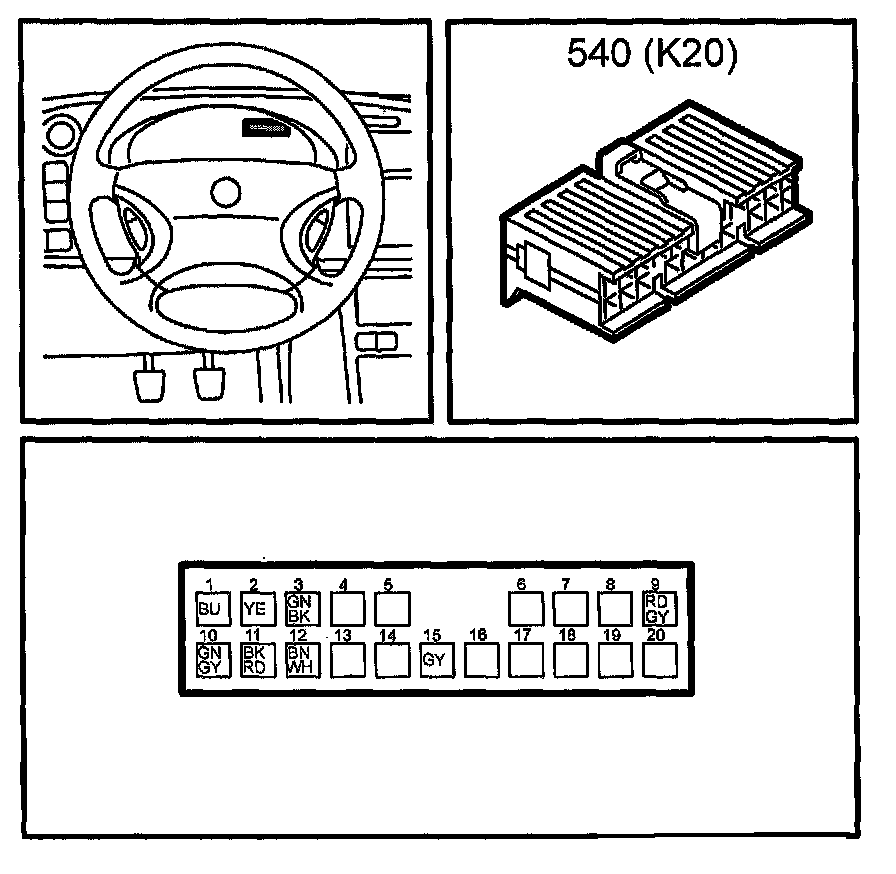

K20
