TC/ABS 5.3

Anti-lock Brakes with Traction Control TC/ABS 5.3

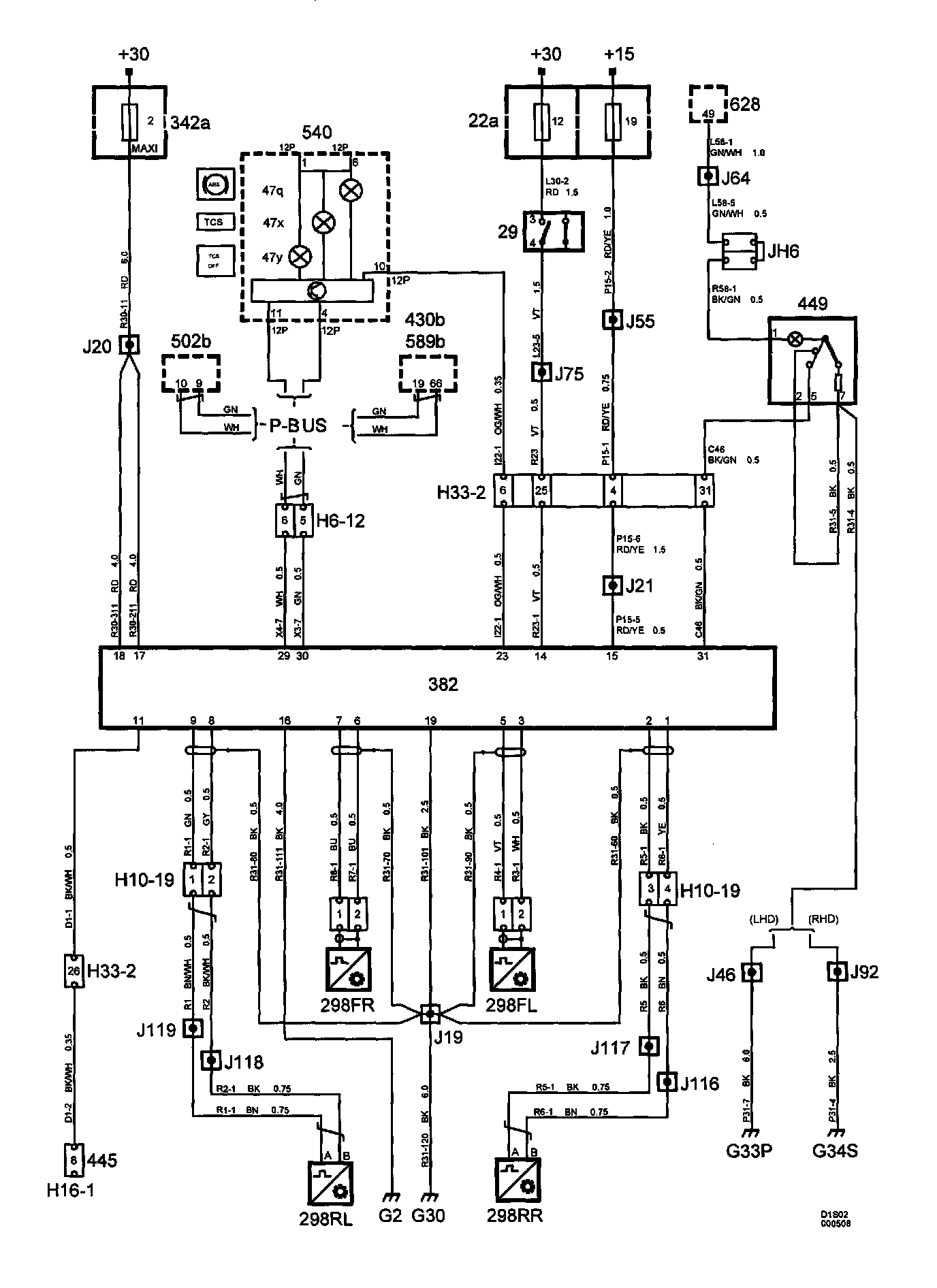

Diagram

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

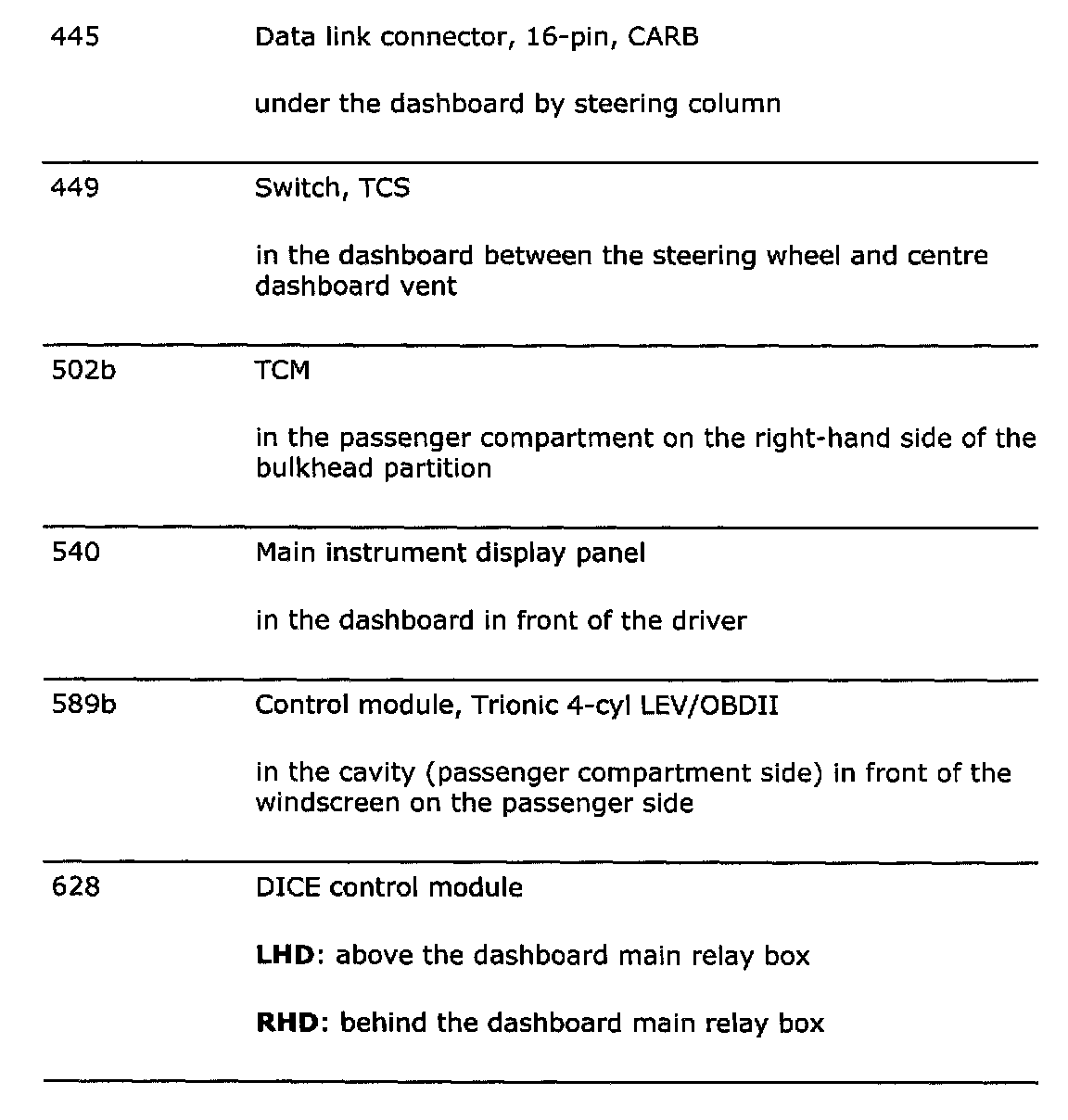

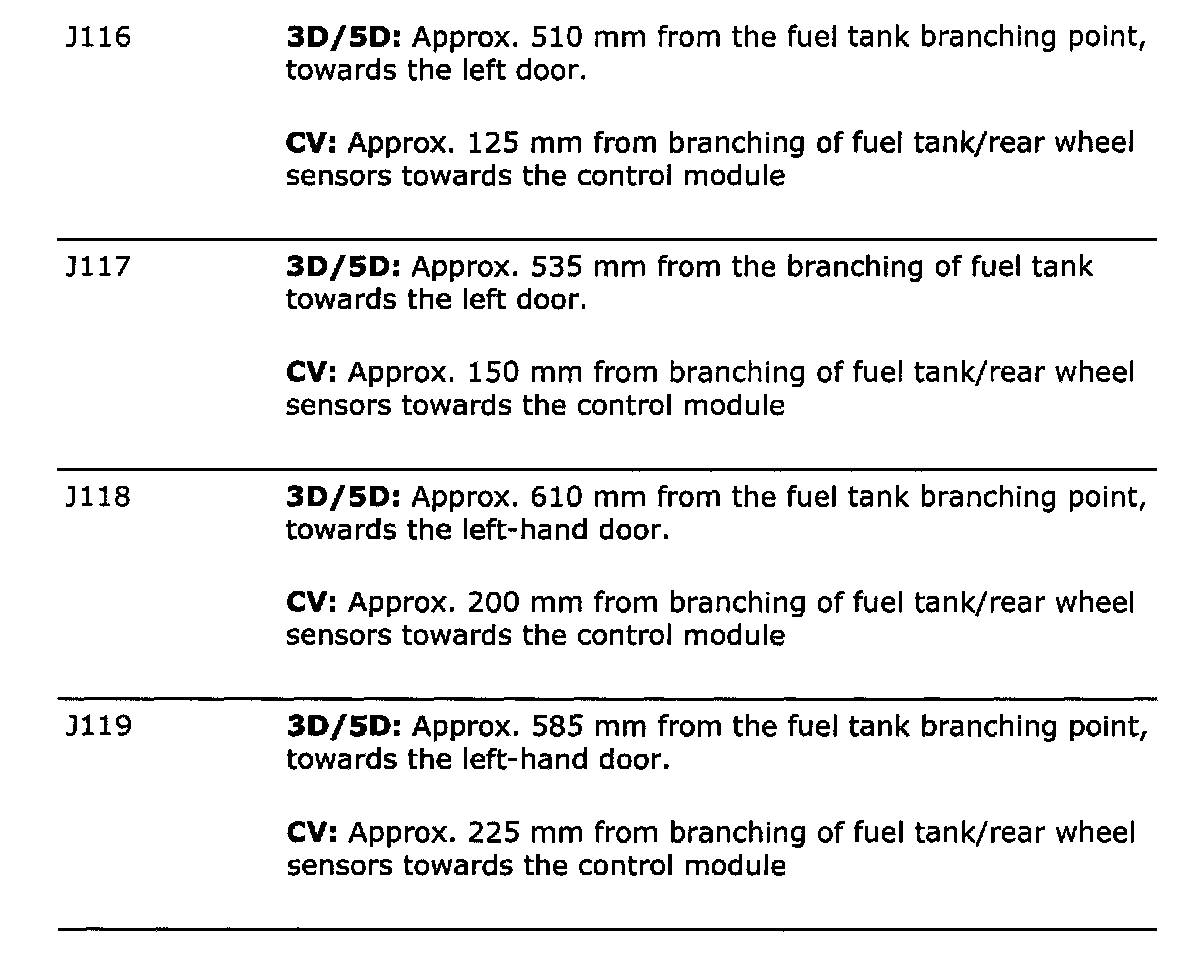

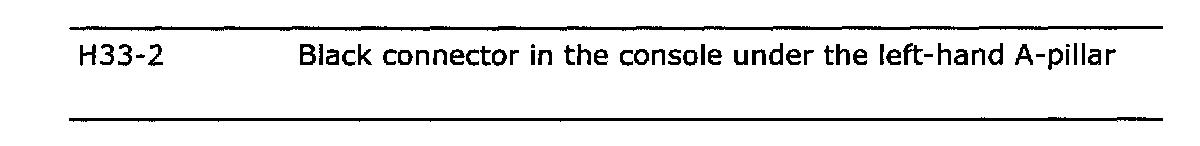

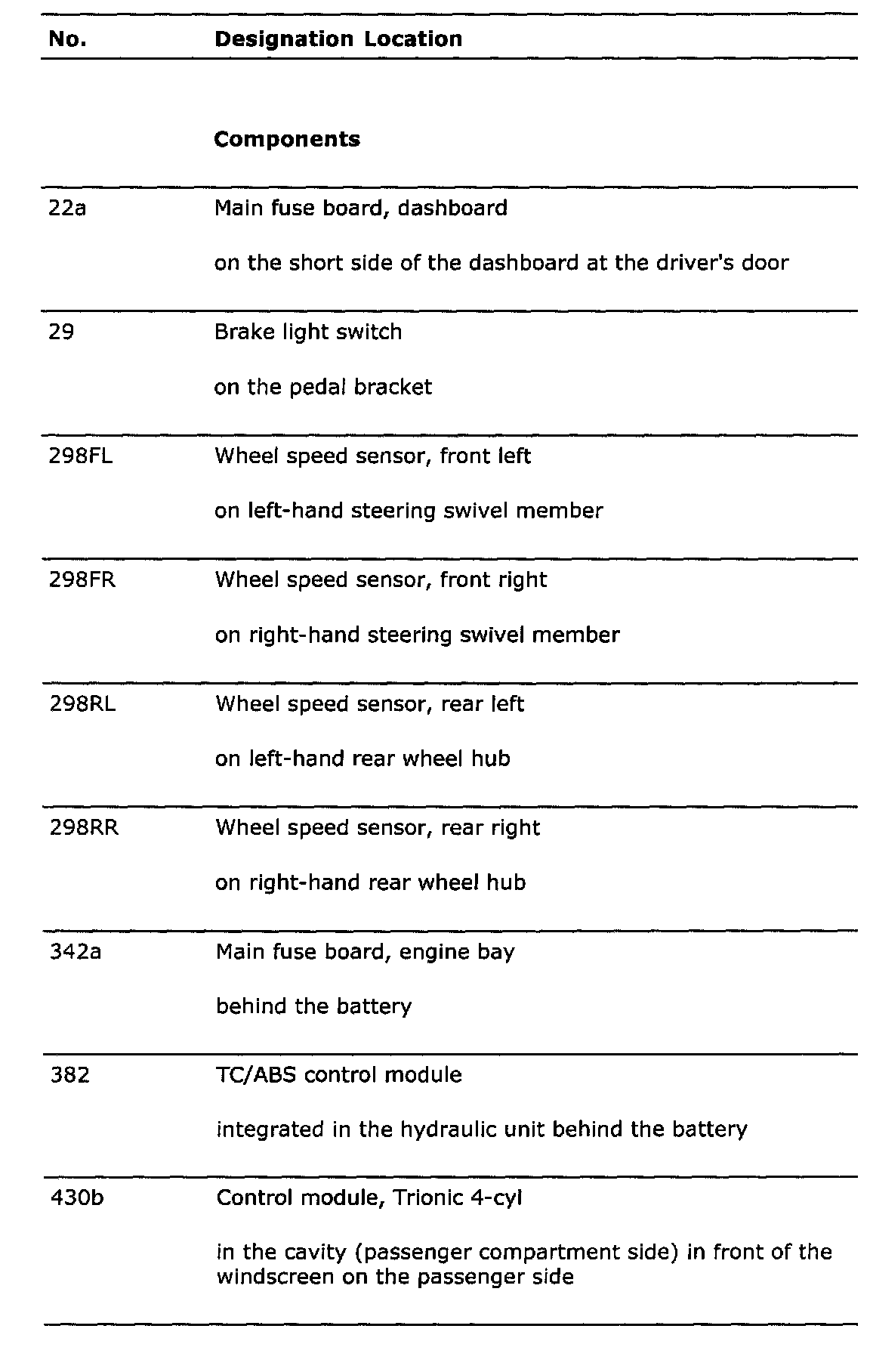

List of components
