Grounding Point G34S

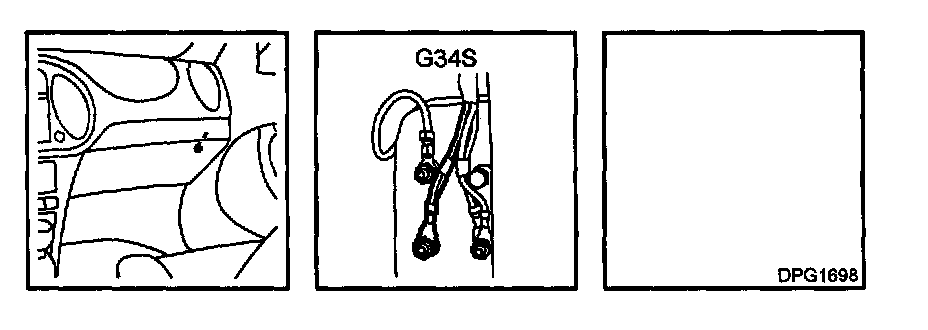

Grounding point G34S







Location: in cabin below right A-pillar.

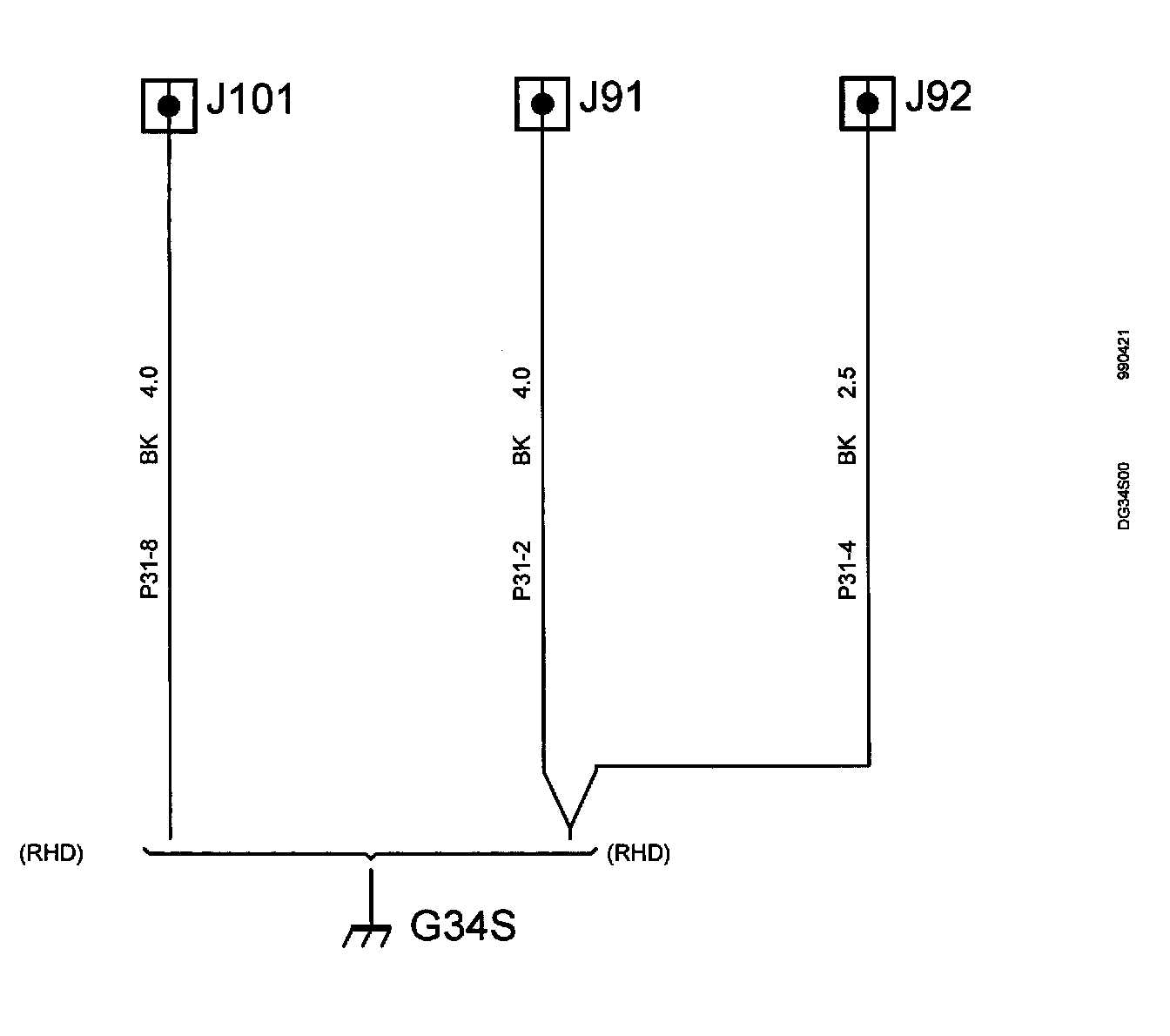

A. Connected components on LHD cars

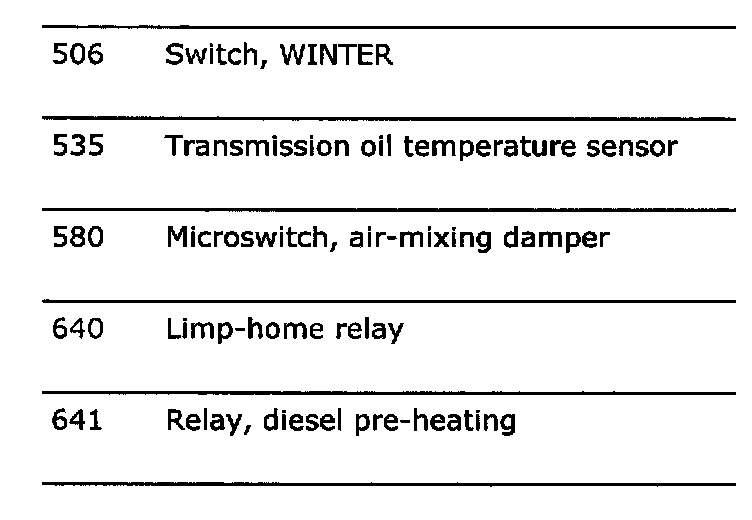

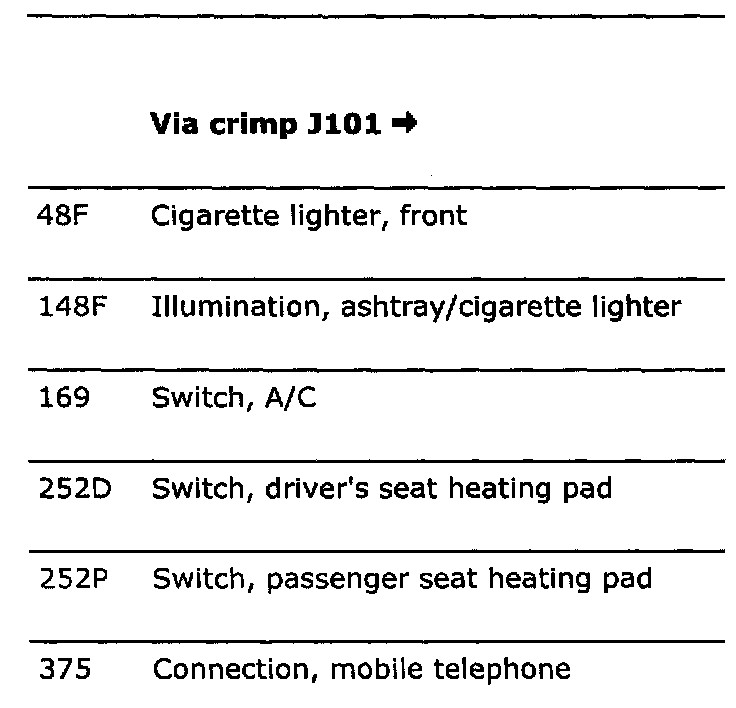

Components Connected Part 1:






Components Connected Part 2:






Components Connected Part 3:
