Grounding Point G34P

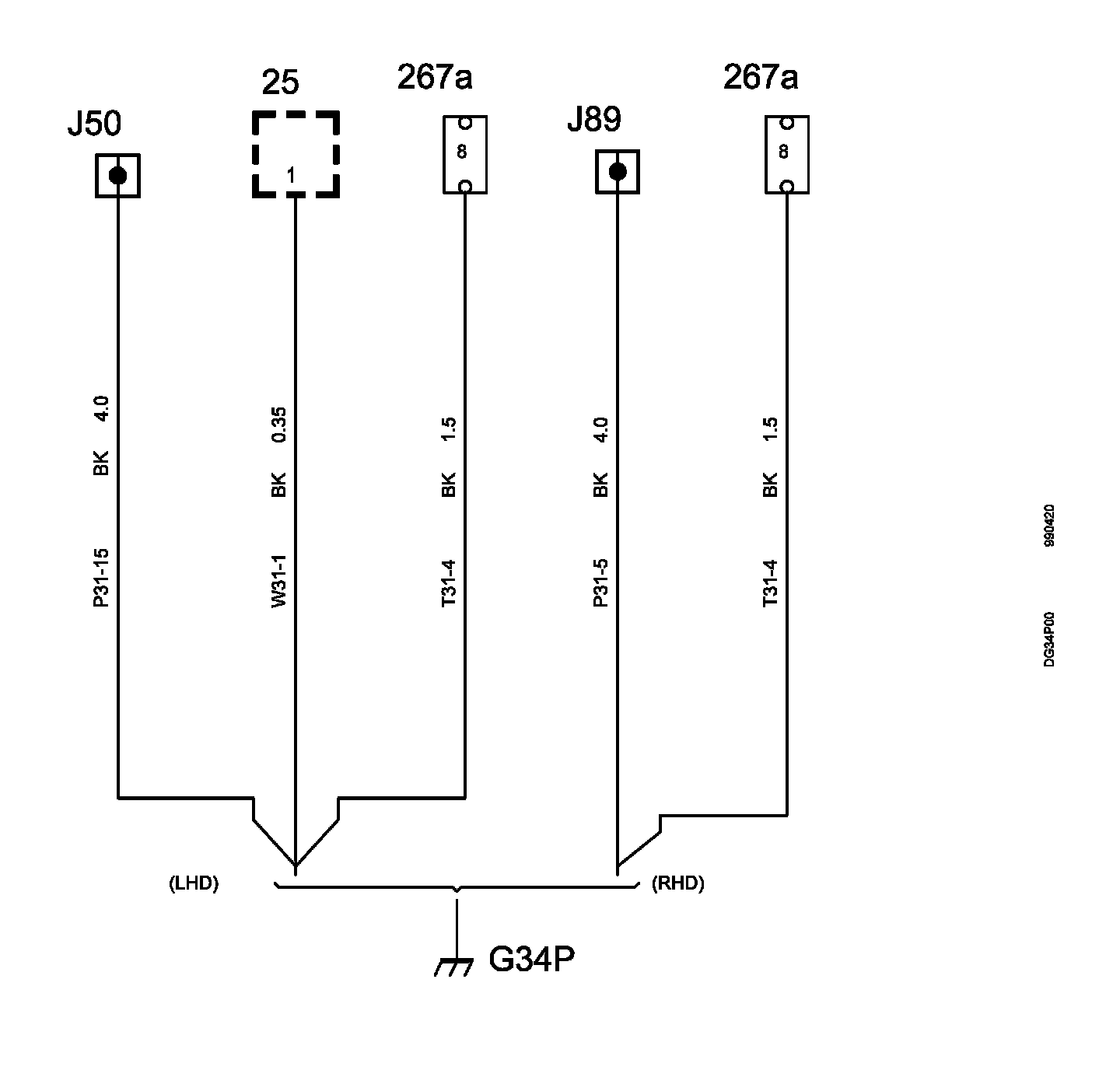

Grounding point G34P

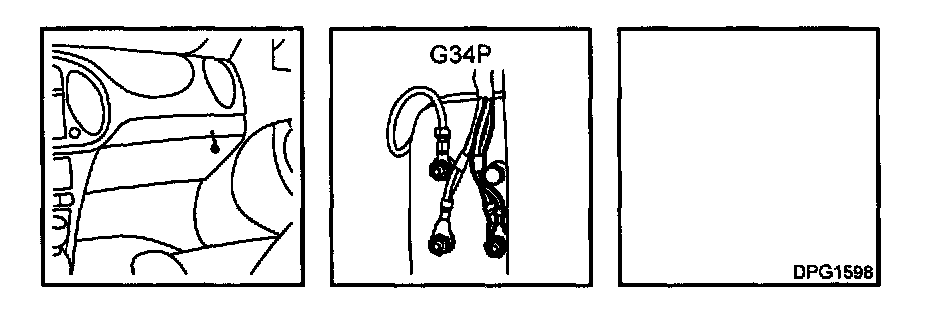

Location: in cabin below right A-pillar.


A. Connected components on LHD cars

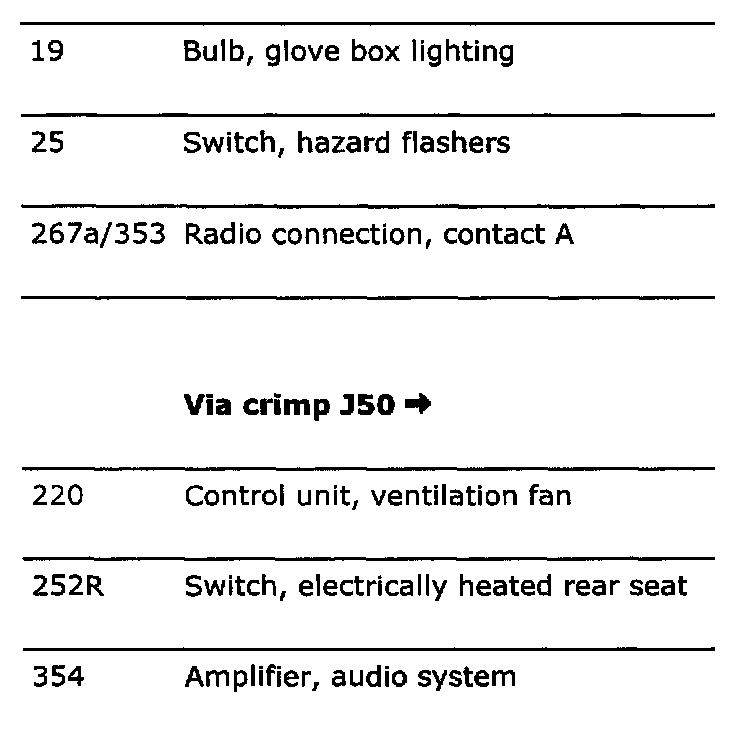

Components Connected Part 1:

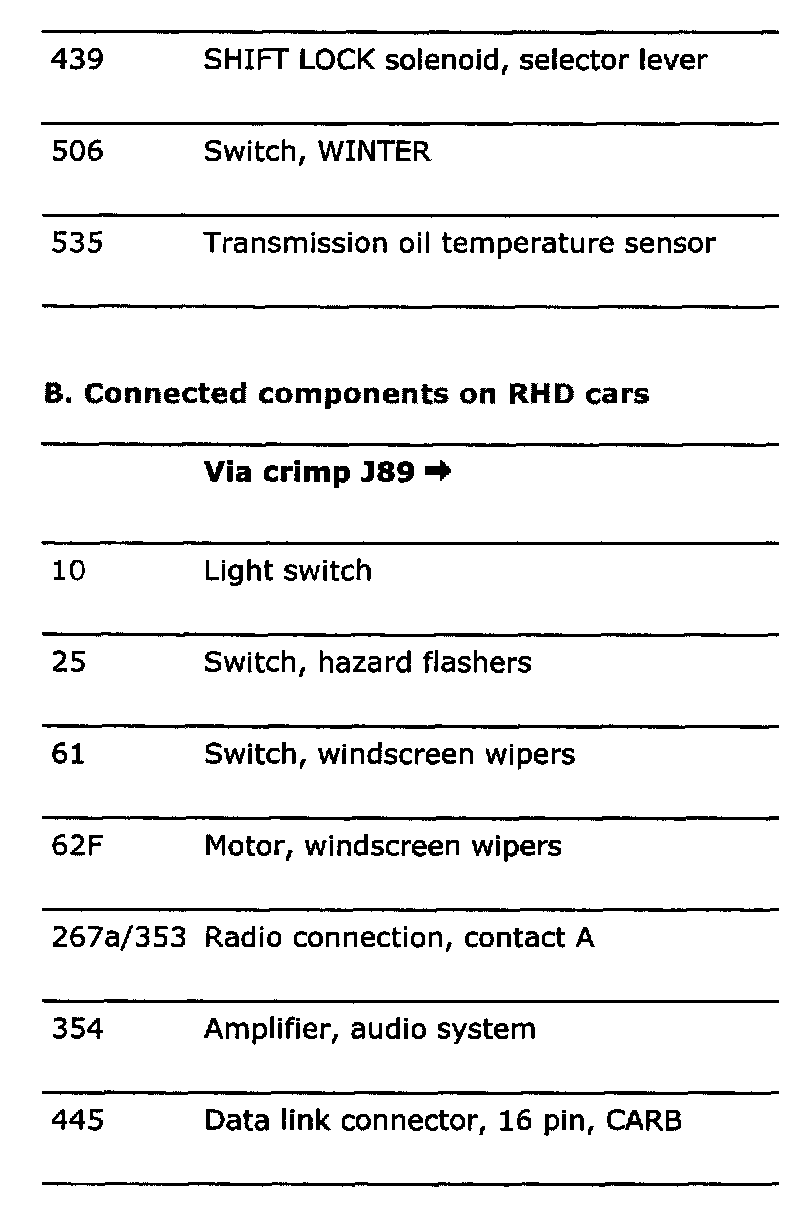

Components Connected Part 2:
