Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Diagrams >> Electrical Diagrams

Electrical Diagrams

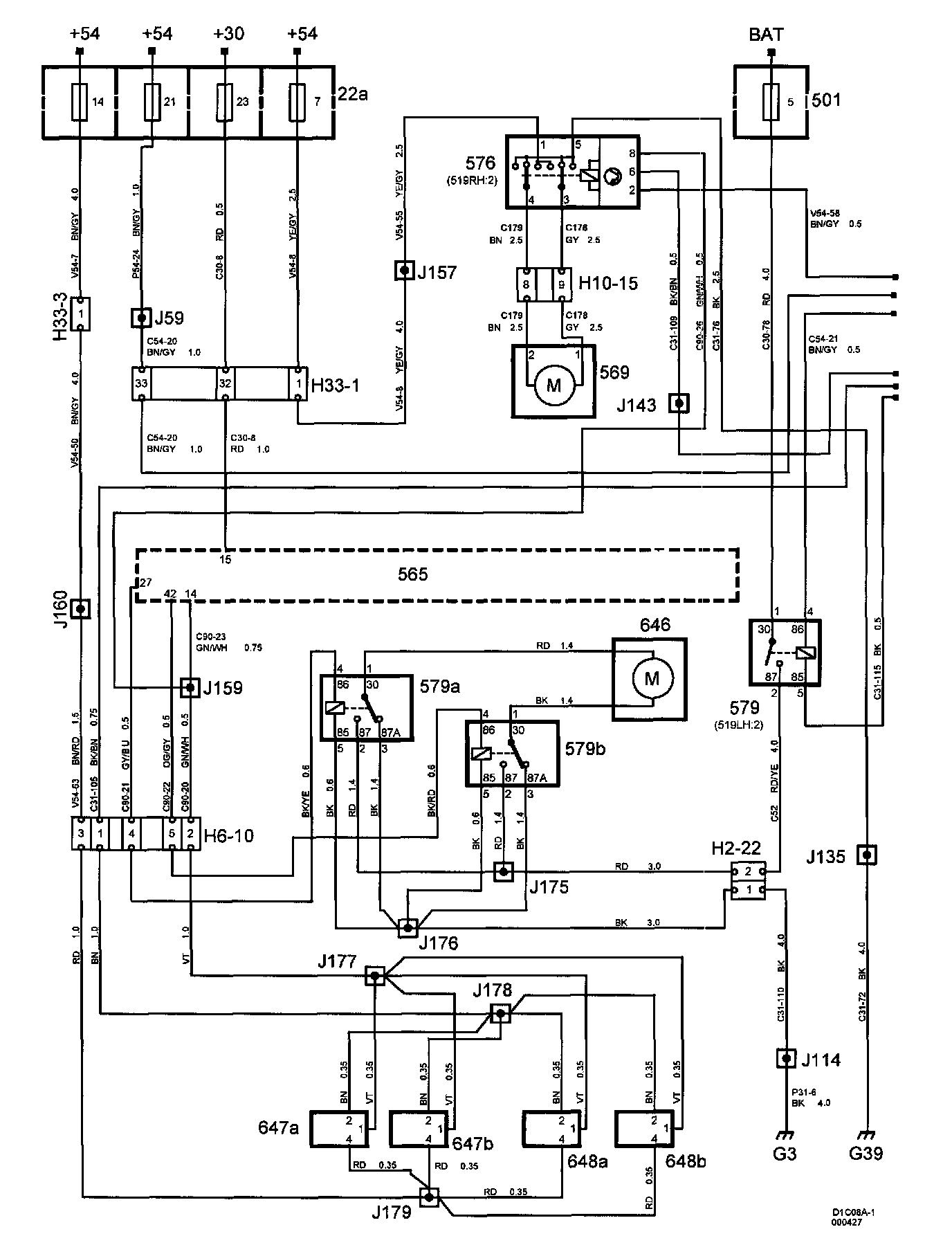

Electrically Operated Soft Top Opening (Part 1/2)







Part 1:






Part 2:






Part 3:






Part 4:






Electrically Operated Soft Top Opening (Part 2/2)







Part 1:






Part 2:






Part 3:
