Gluing Inner Door Mirror Base

Gluing inner door mirror base, CV

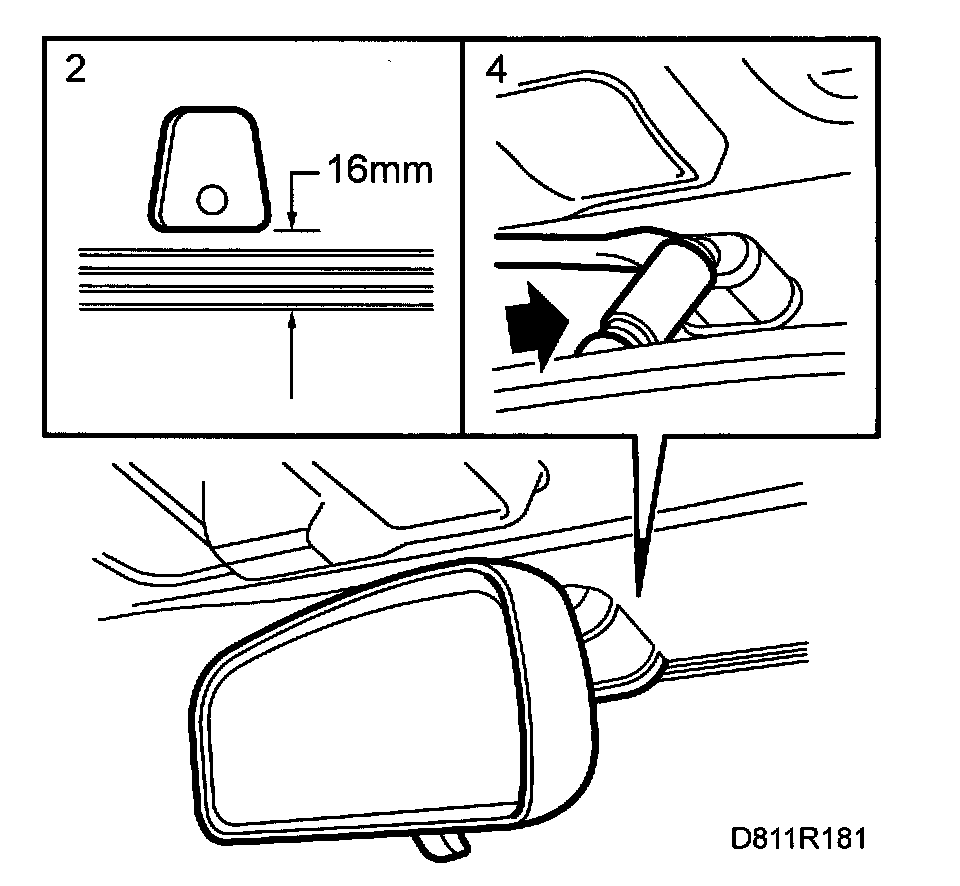

1. Mark the position on top of the windscreen, in the middle of the blackened area.





2. Measure 16 mm from the lower line and mark the position of the door mirror base.
3. Glue the door mirror base using glass adhesive part number (45) 30 06 830.

IMPORTANT: Protect the windscreen under the door mirror base with some fabric-backed tape in case the screwdriver should slip.

4. Push the mirror down on the base. Use a screwdriver to push it all the way down.
