Tech 2 Menu Structure, Read Values, Programming, Sys Info

Tech 2 Menu Structure
Diagnostic Trouble Codes (DTC)
Read Values
Programming
Snapshot
System Information

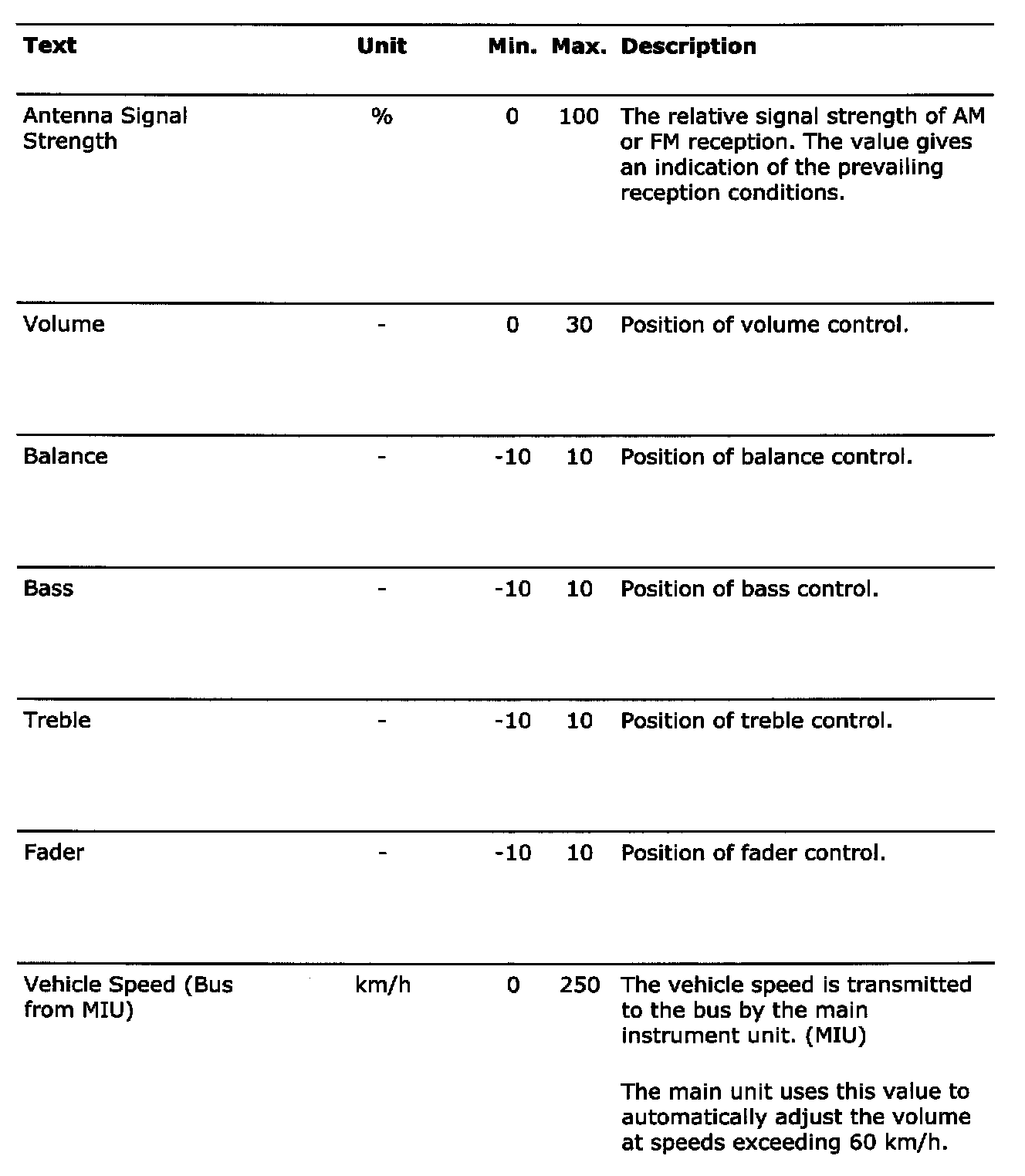

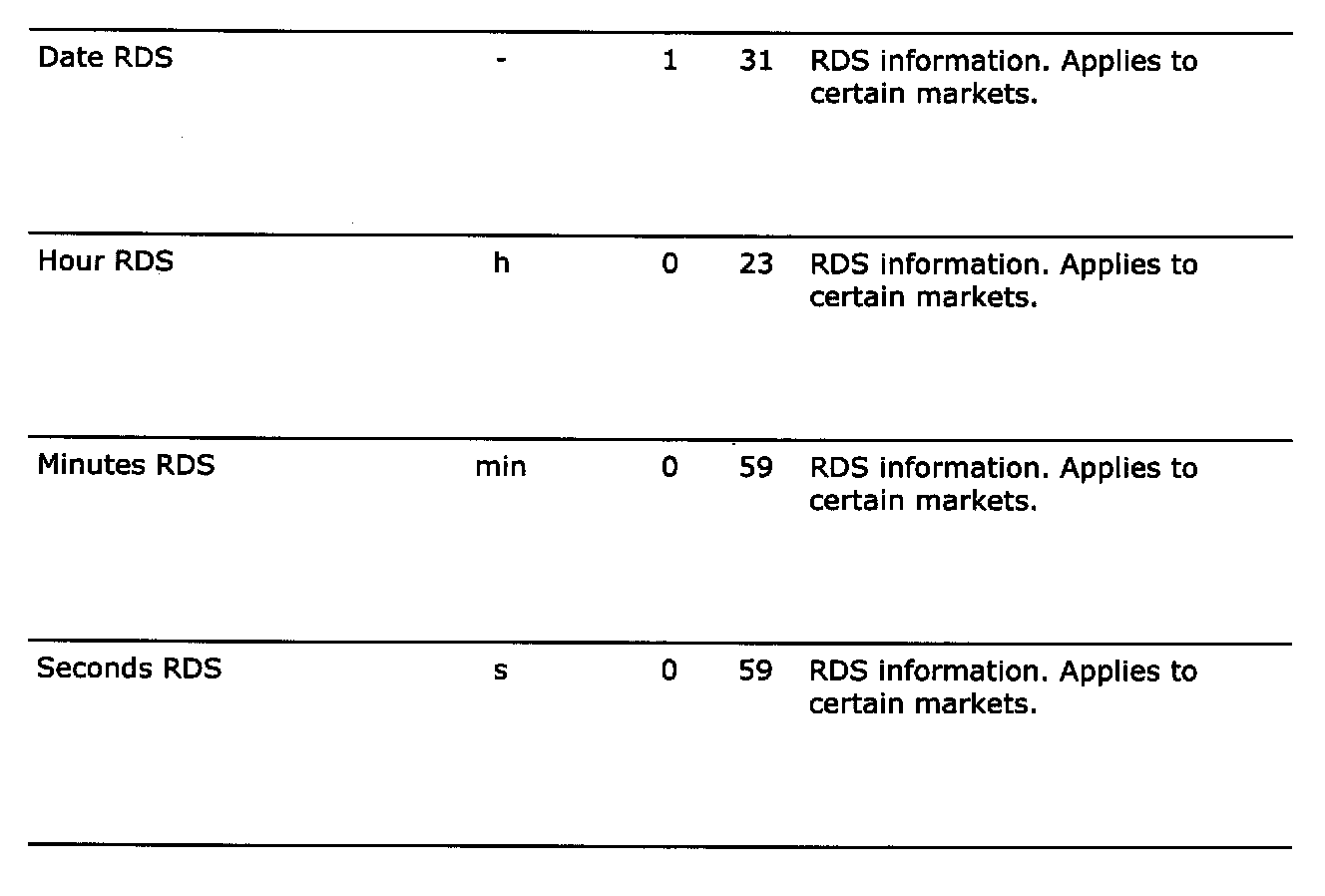

Menu "Read values"

Part 1:

Part 2:

Part 3:

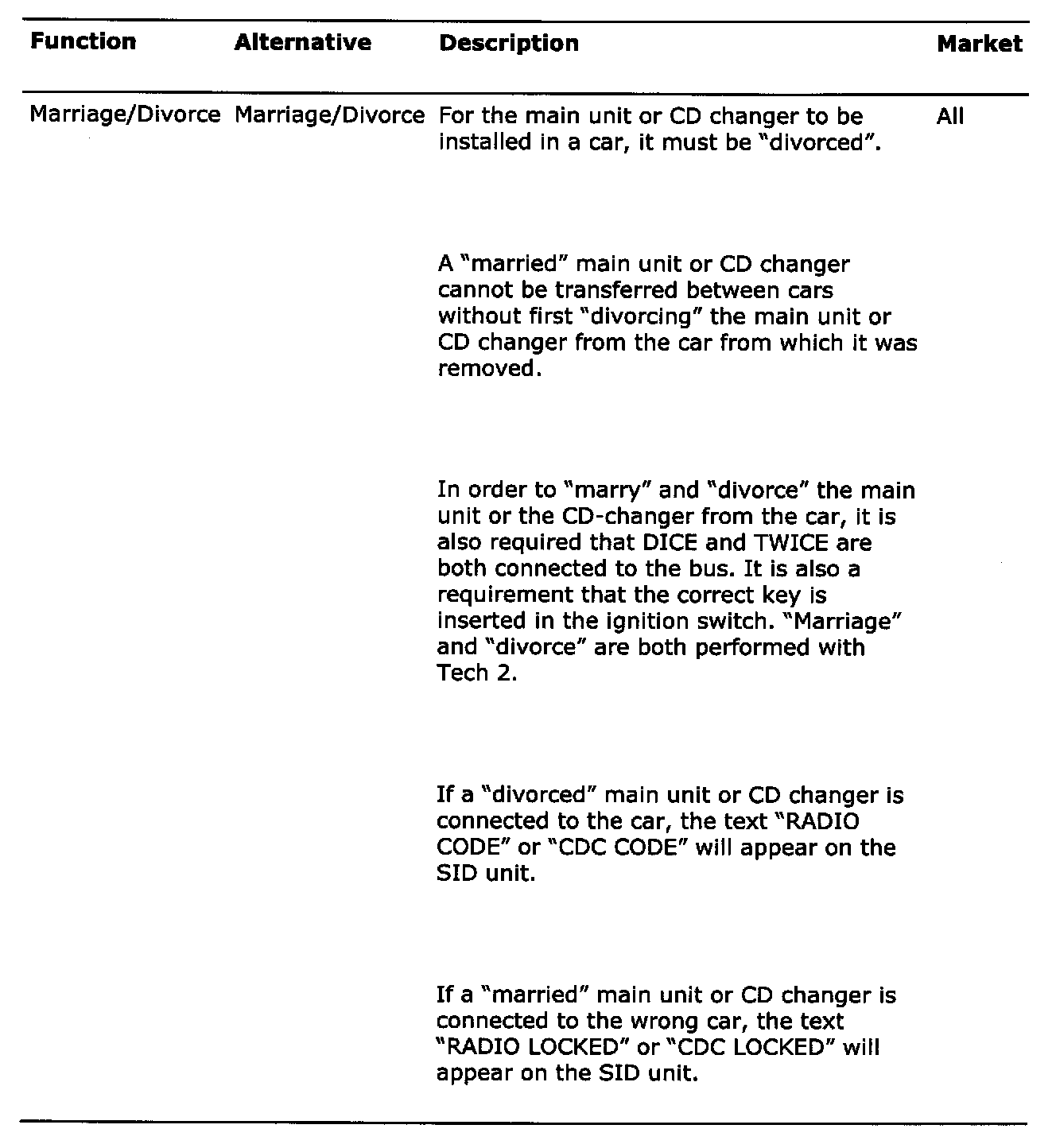

Menu "Programming"







Menu "System Information"

Text Function
SAAB Part Number: Shows SAAB's 7-digit part number for the control module.

Hardware Version Number: Shows the suppliers x-digit part number for the control module.

Software Version Number: Shows the suppliers x-digit part number for the software.
