Loudspeakers, Dashboard (Left/Right), Parcel Shelf, Front Doors

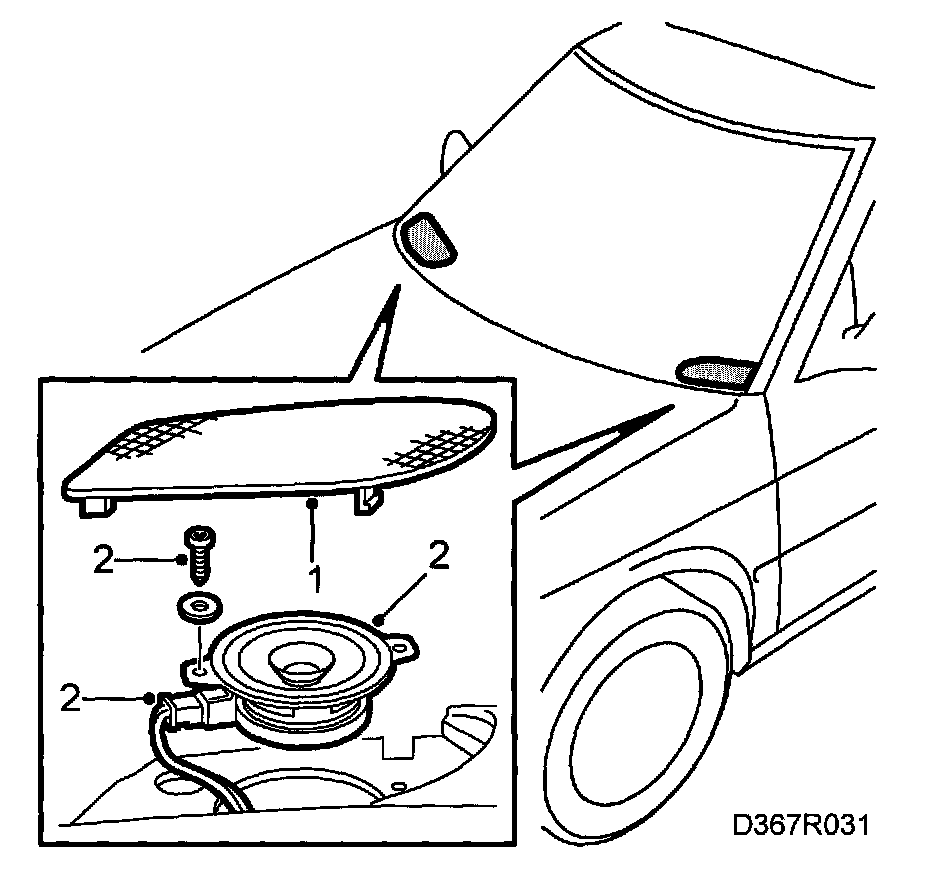

Loudspeakers, Dashboard (left/right)

To remove







1. Remove the loudspeaker grilles on the dashboard.
2. Remove the screws securing the loudspeakers.
3. Take out the loudspeaker and unplug the connectors.

To fit
Fit in reverse order.

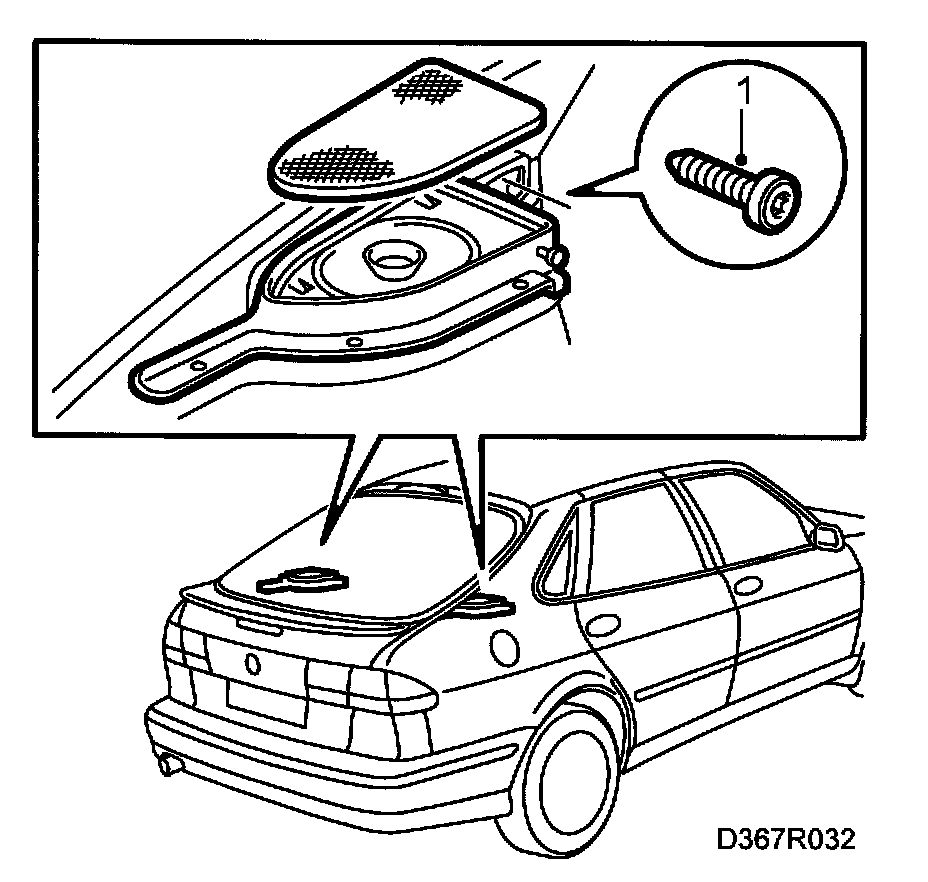

Loudspeakers, parcel shelf

To remove







1. Undo the 6 screws securing the frame for the loudspeaker grille. Two of the screws are located under the loudspeaker grille.


IMPORTANT
One screw is located between the rear backrest and the loudspeaker grille.


2. Remove the parcel shelf support.







3. Remove the 4 screws holding the loudspeaker.
4. Lift out the loudspeaker and separate the connector.

To fit
Fit in reverse order.

Loudspeakers, front doors

To remove







1. Remove the door trim to gain access to the loudspeakers.
2. Remove the screws securing the loudspeakers.
3. Take out the loudspeaker and unplug the connectors.

To fit
Fit in reverse order.


NOTE: To obtain the best sound from the loudspeakers, the doors should be air-tight.
