Steering Wheel Controls




Steering Wheel Controls

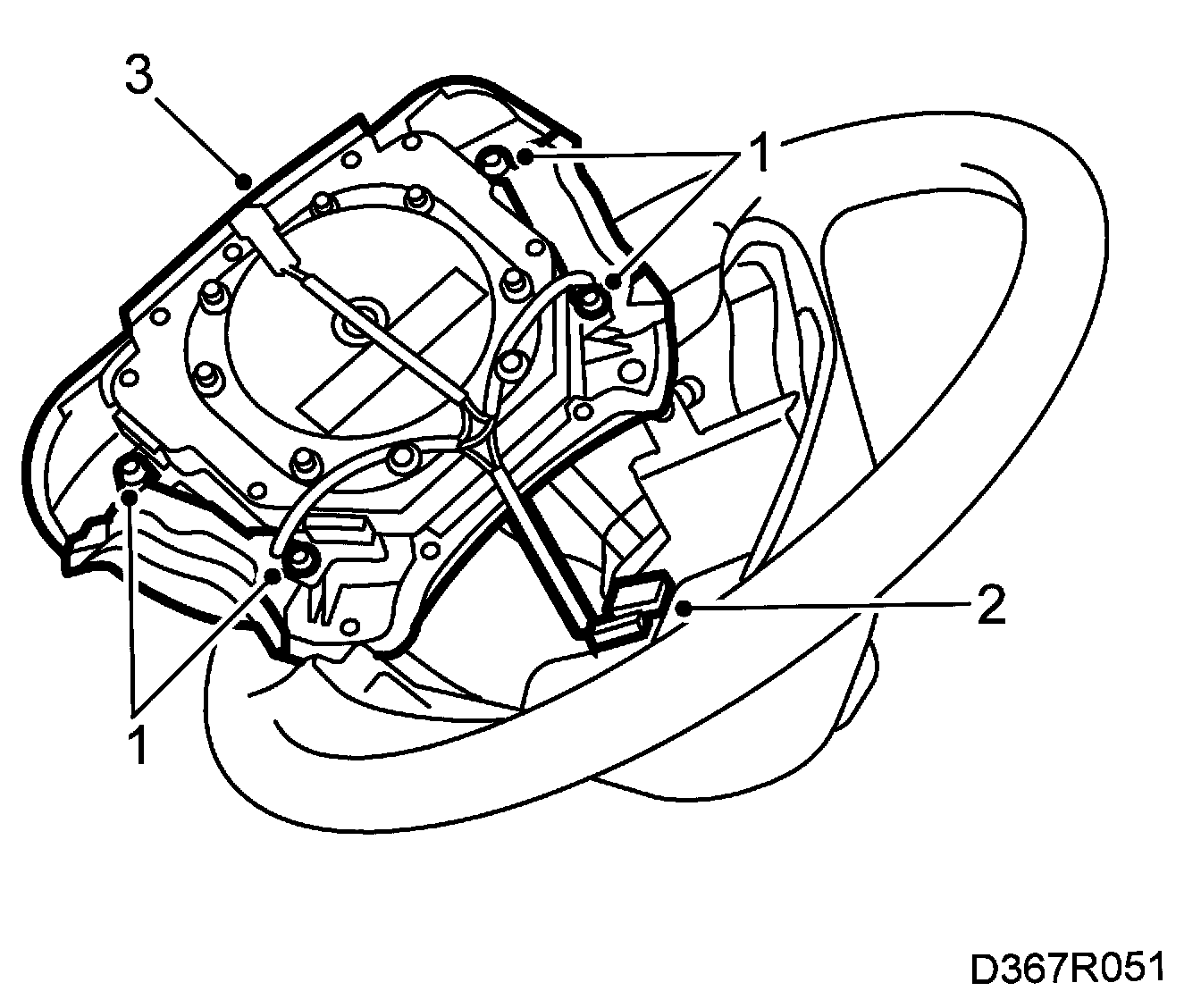

To remove







1. Remove the airbag on the driver's side.
2. Unplug the connector to the steering wheel controls.
3. Remove the steering wheel controls.

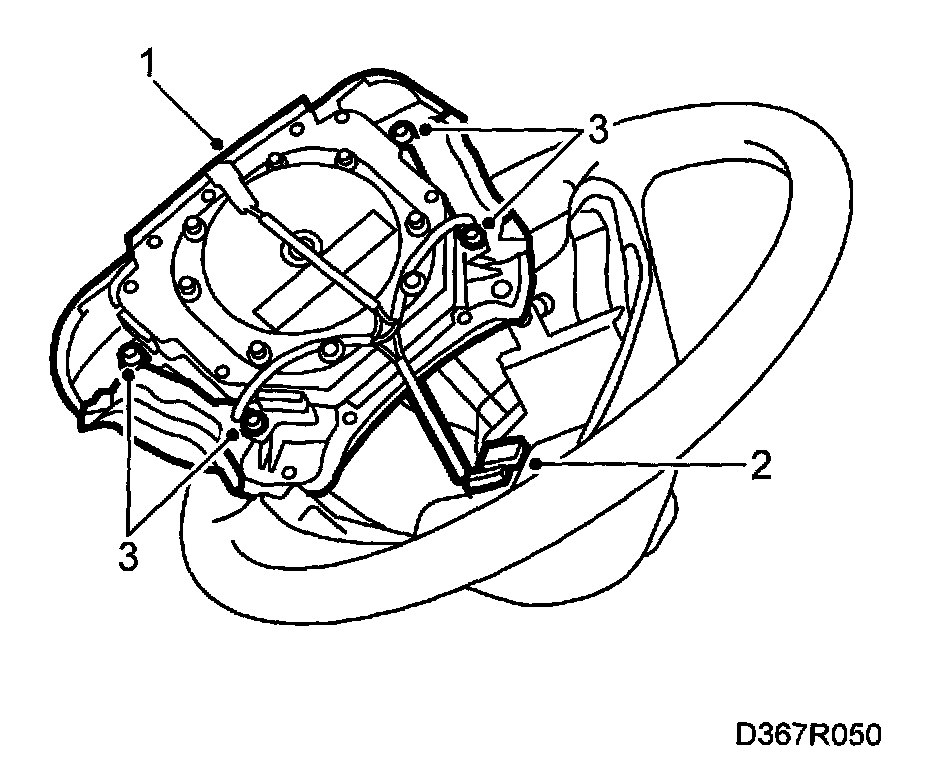

To fit







1. Fit the steering wheel controls.
2. Plug in the connector to the steering wheel controls.
3. Fit the airbag.
