Home >> Saab >> 2001 >> 9-3 SE Convertible (9400) L4-2.0L Turbo (B205) HO >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Ground Locations >> Grounding Point G3

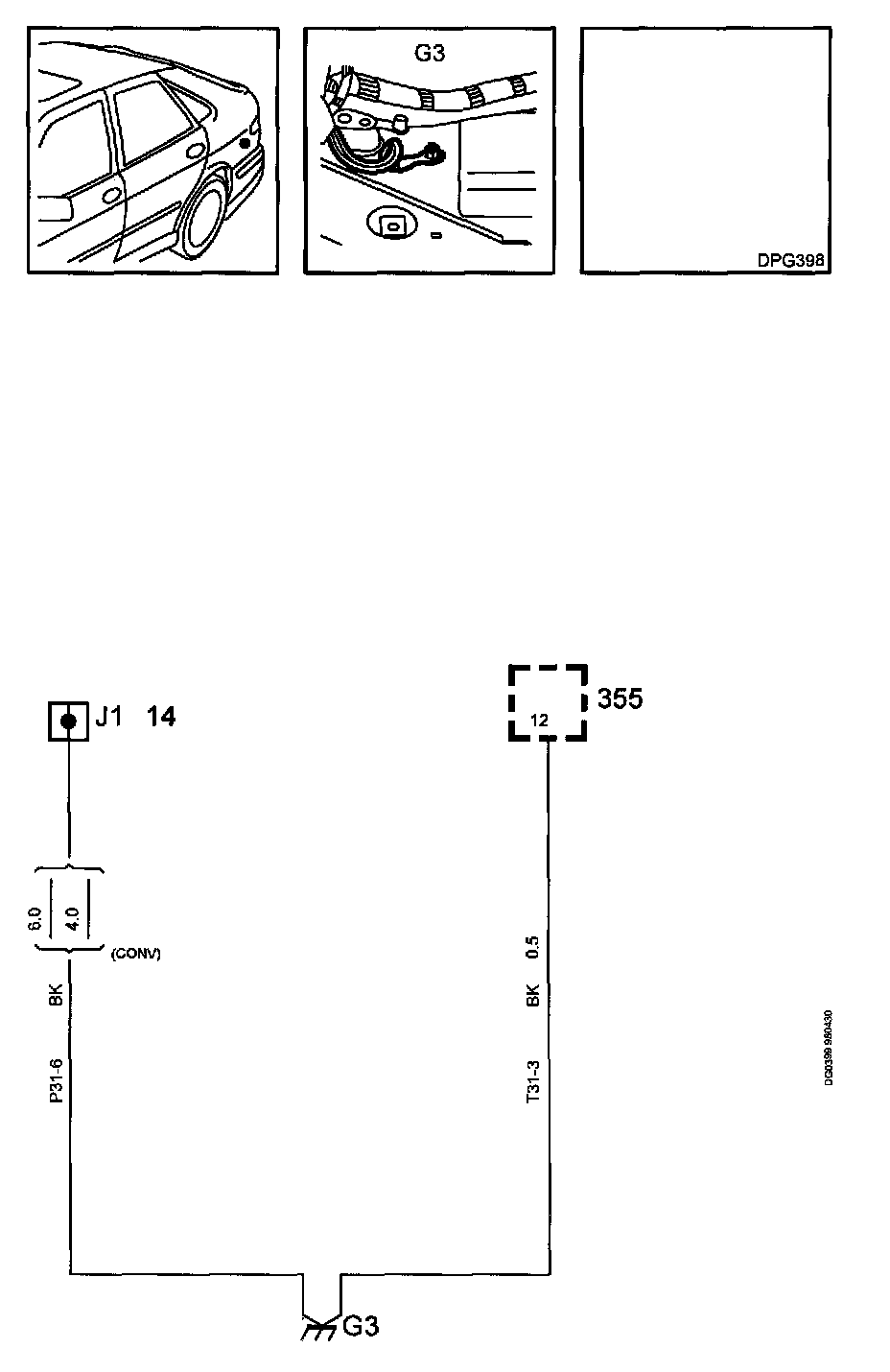

Grounding Point G3




Grounding Point G3







Location: in luggage compartment under LH rear cluster light


Part 1:






Part 2:
