Cellular Phone Microphone: Service and Repair

Microphone, Handsfree

To remove

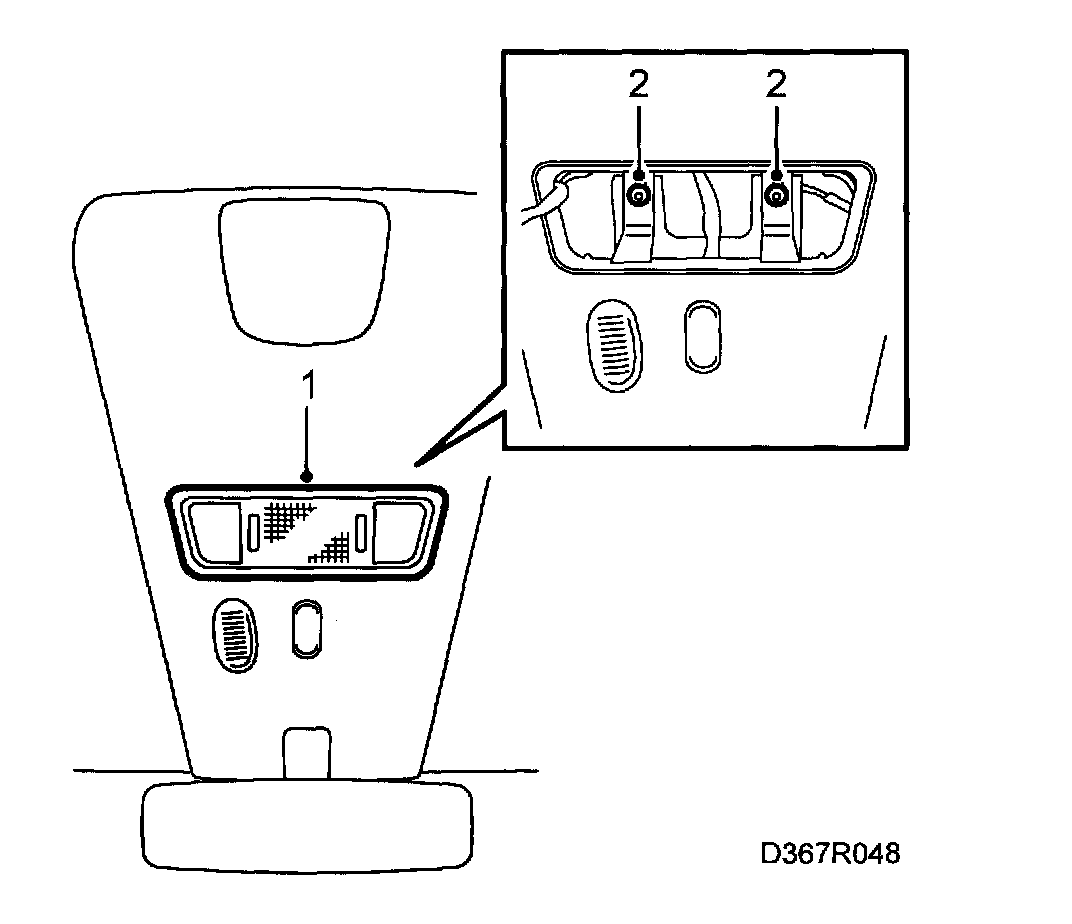

1. Remove the glass from the front roof console.
2. Remove the screws holding the roof console.
3. Remove the roof console (allow it to hang from the wires).







4. Detach the microphone from the console (3 clips).
5. Unplug the microphone connector.

To fit
Fit in reverse order.
