Tech 2 Menu, Read Value, Active, Immob., Adj., Prog., Sys Info.

Tech 2 menu structure

Diagnostic Trouble Codes (DTC)
Read Values/Activate
Immobilizer
Adjustment
Programming
Snapshot
System Information

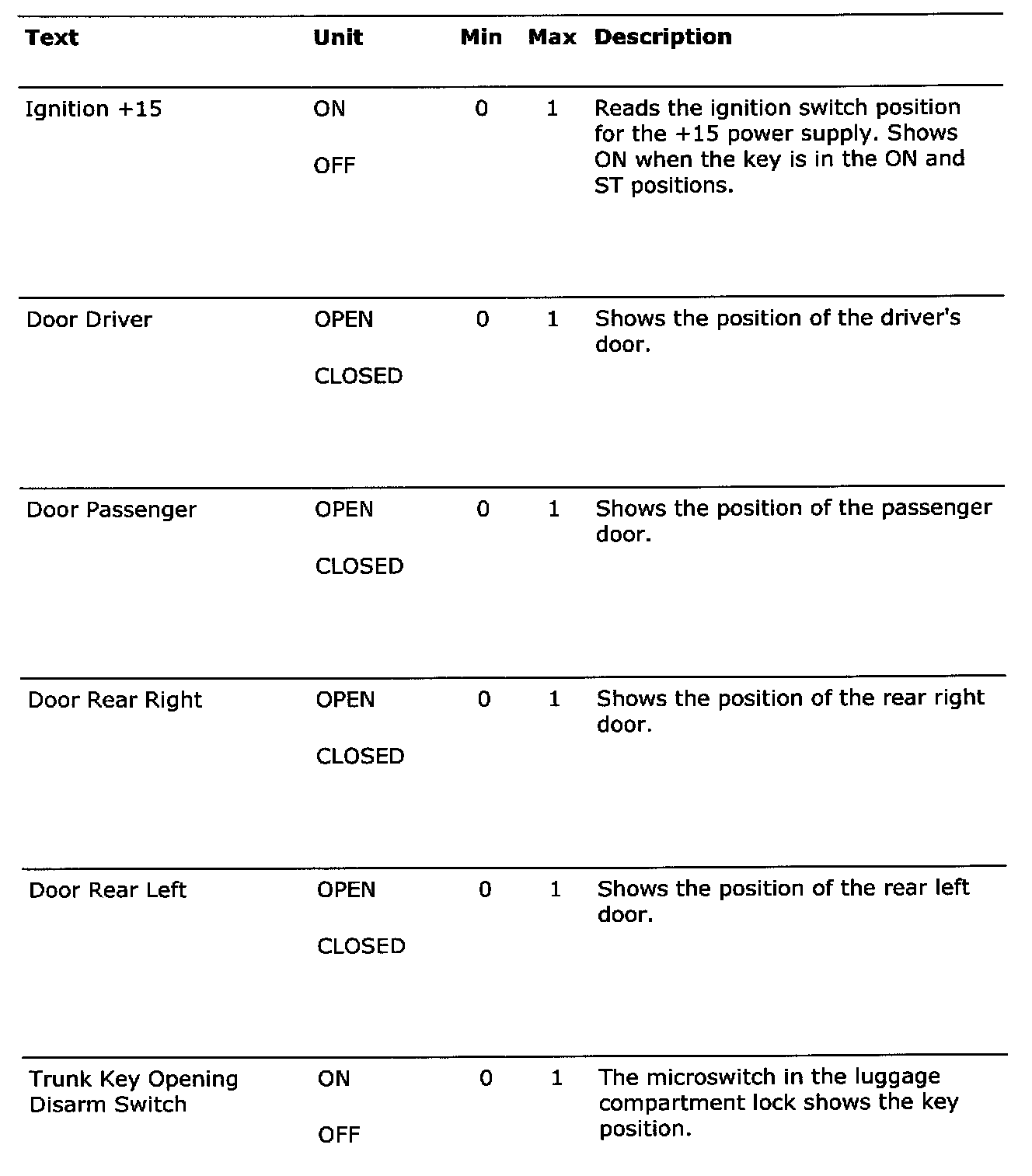

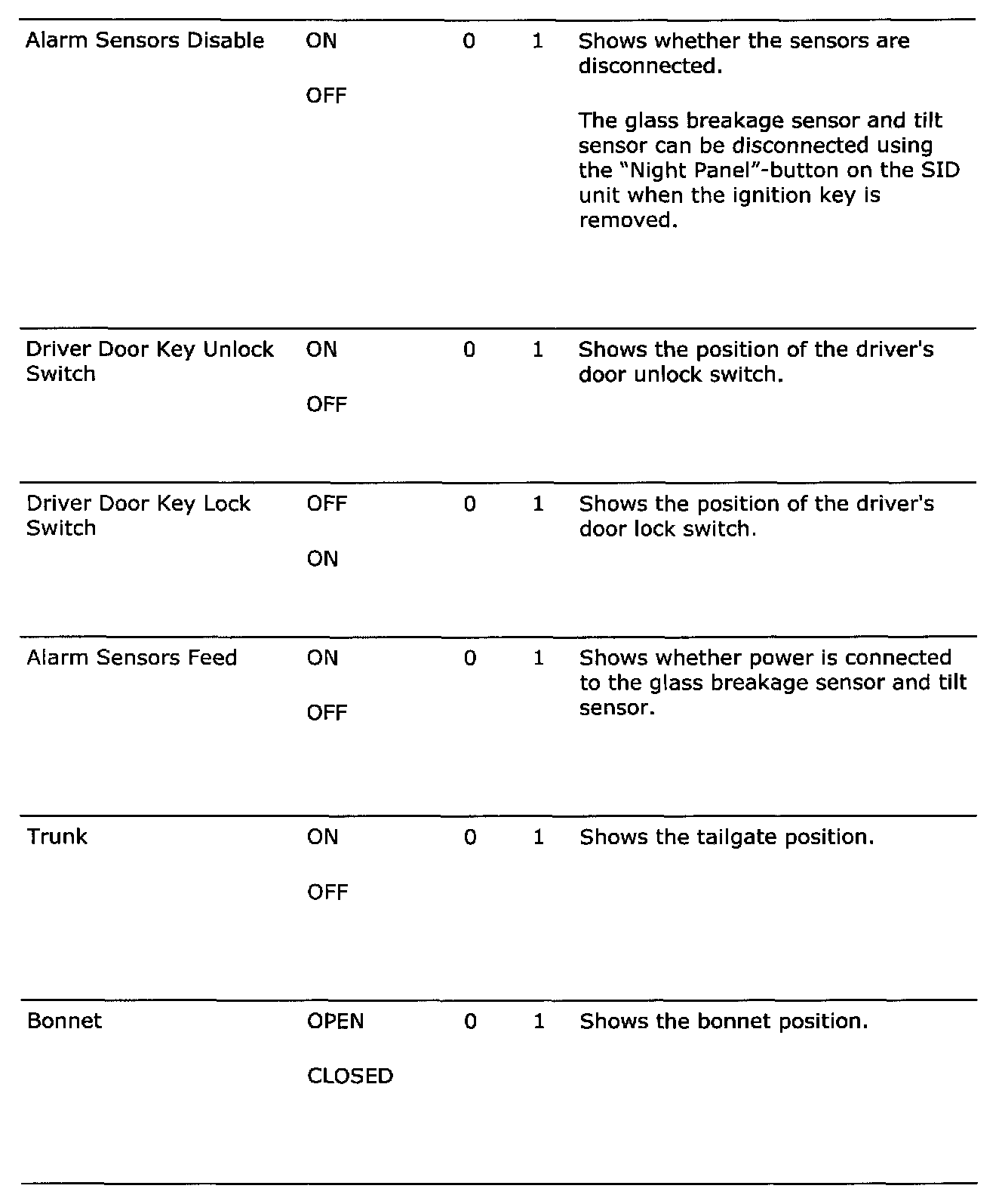

Menu "Read Values"

Part 1:

Part 2:

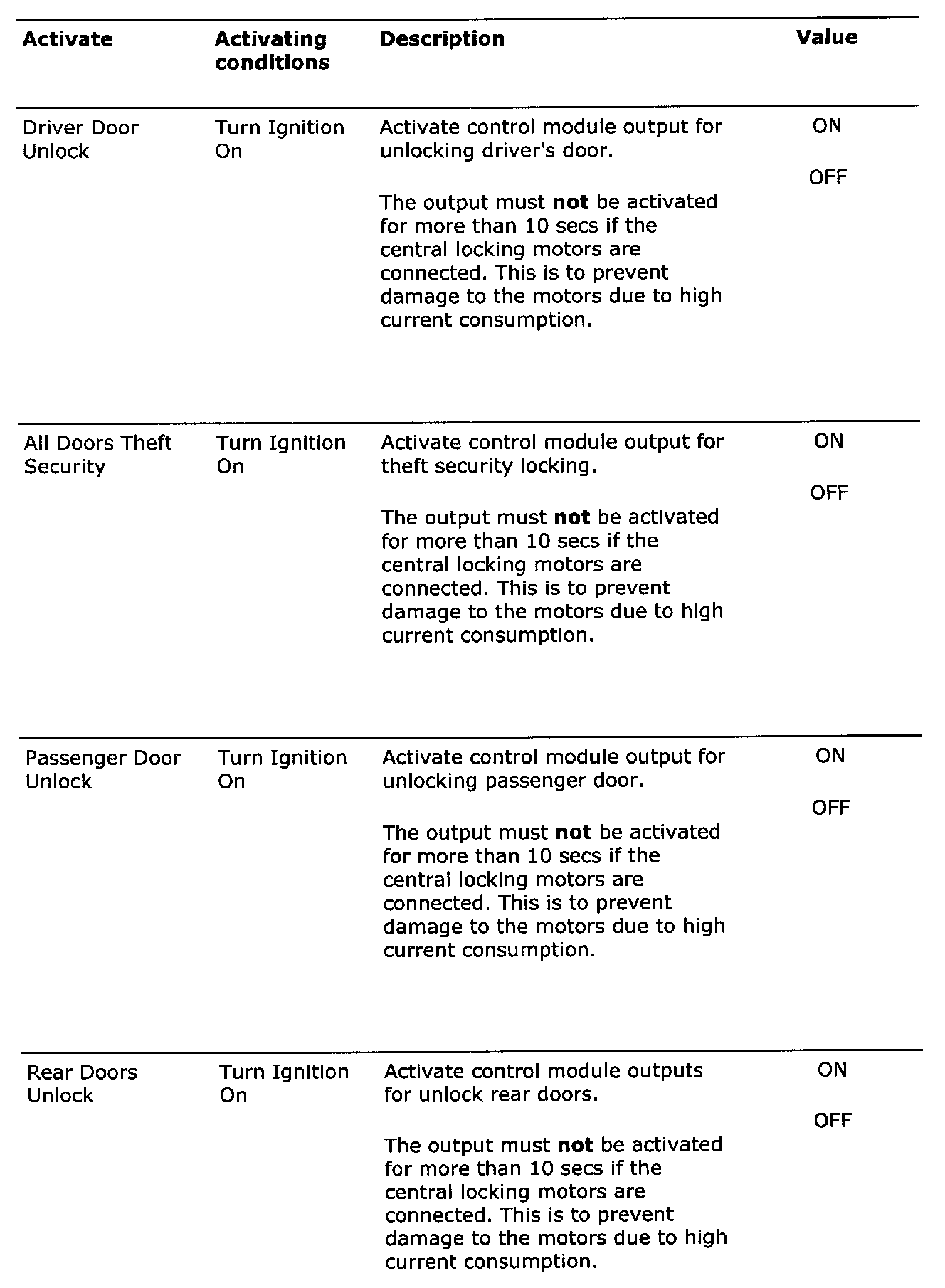

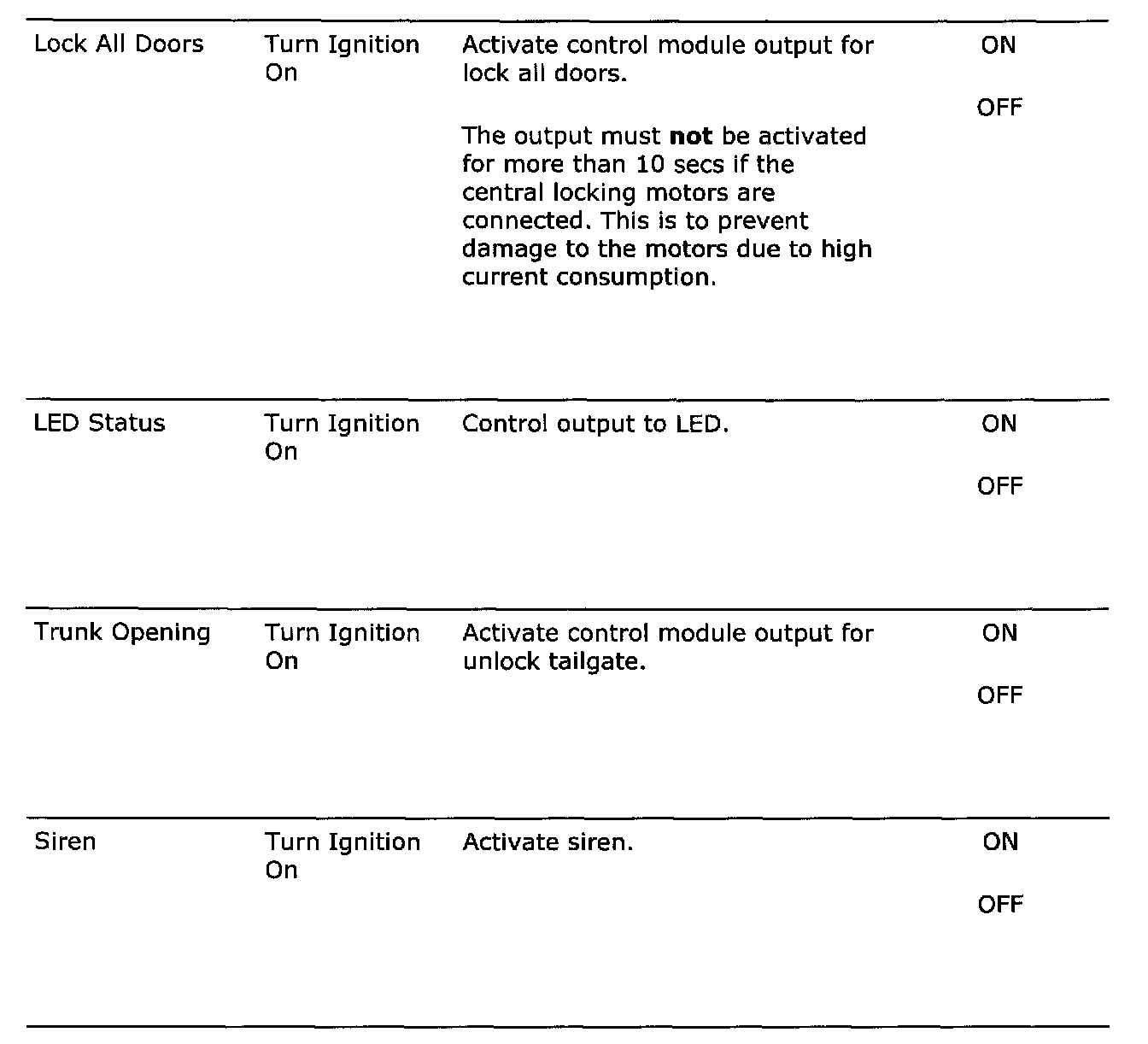

Menu Activate

Part 1:

Part 2:

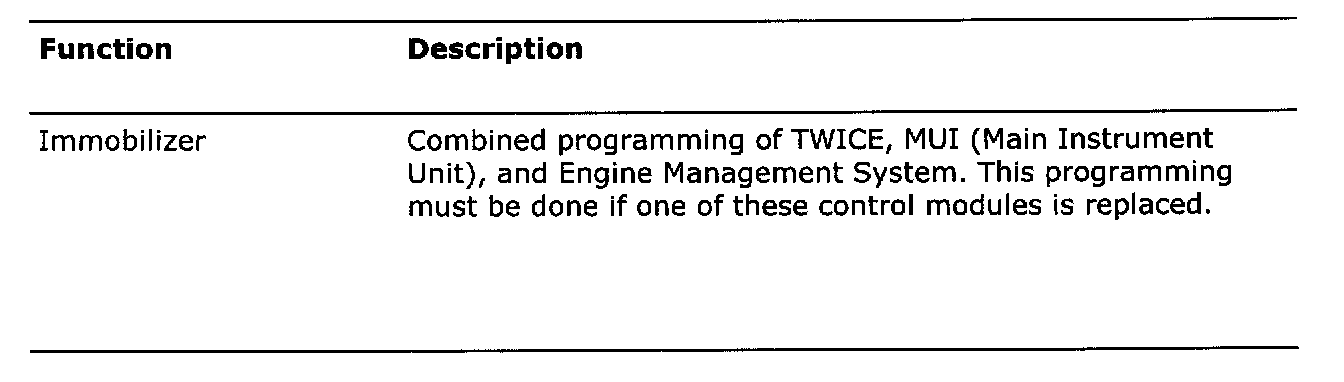

Menu Immobilizer

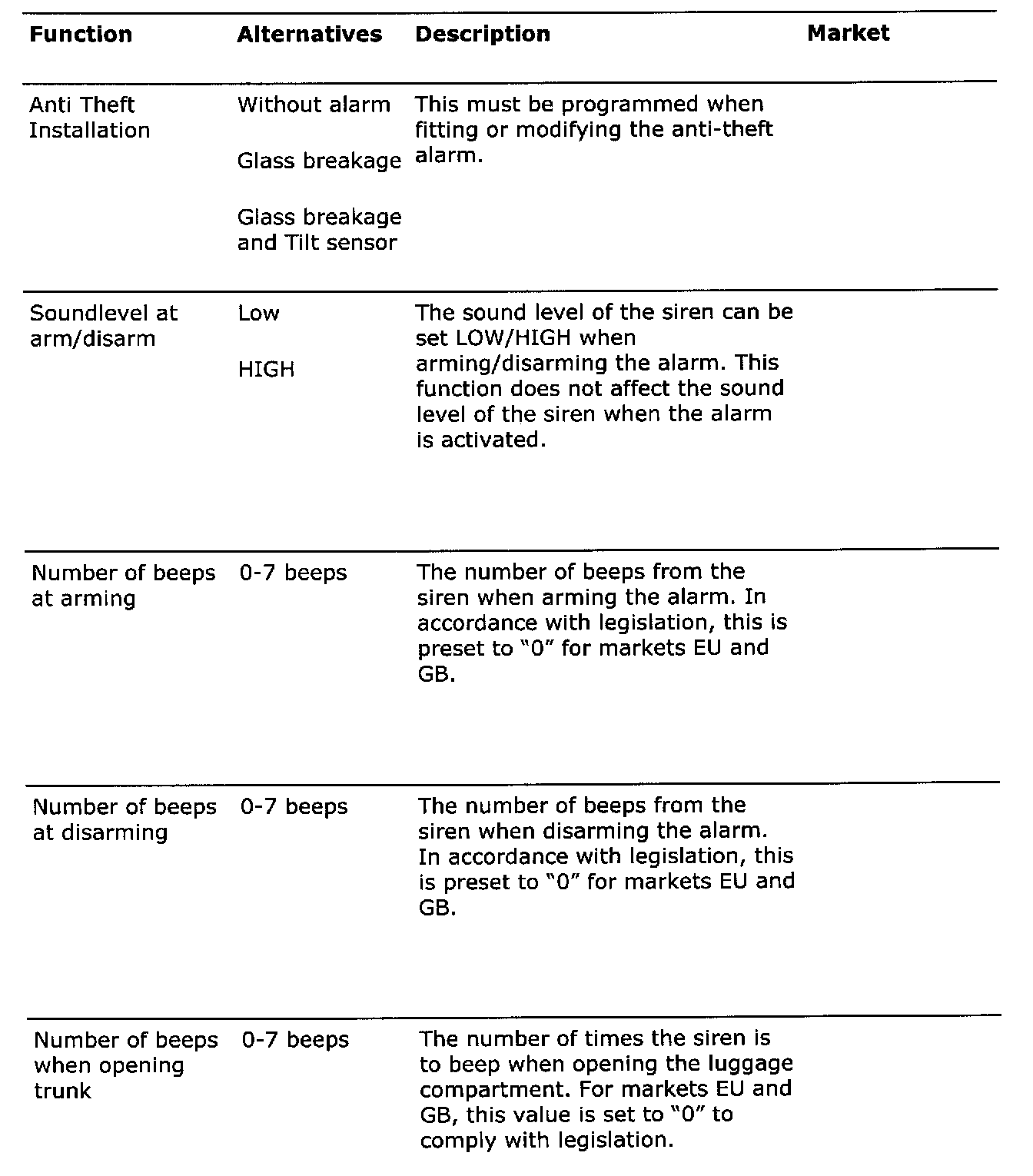

Menu Adjustment

Part 1:

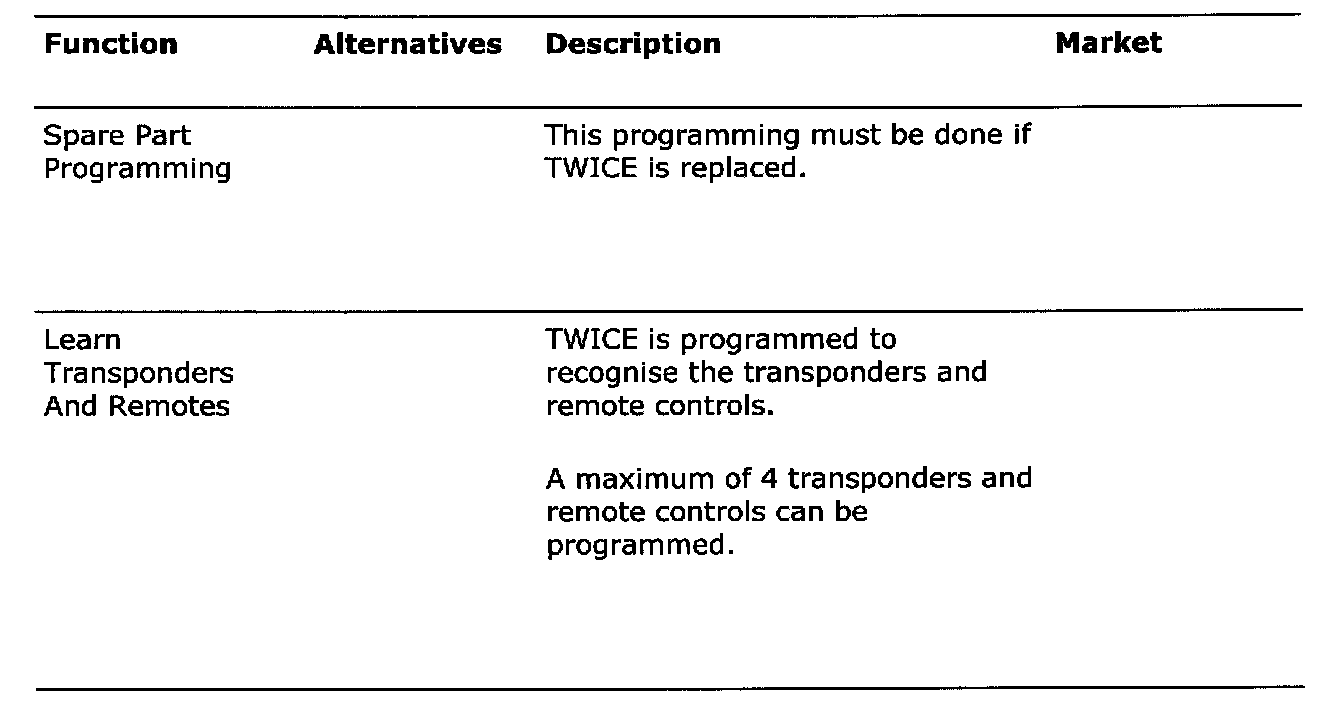

Menu Programming

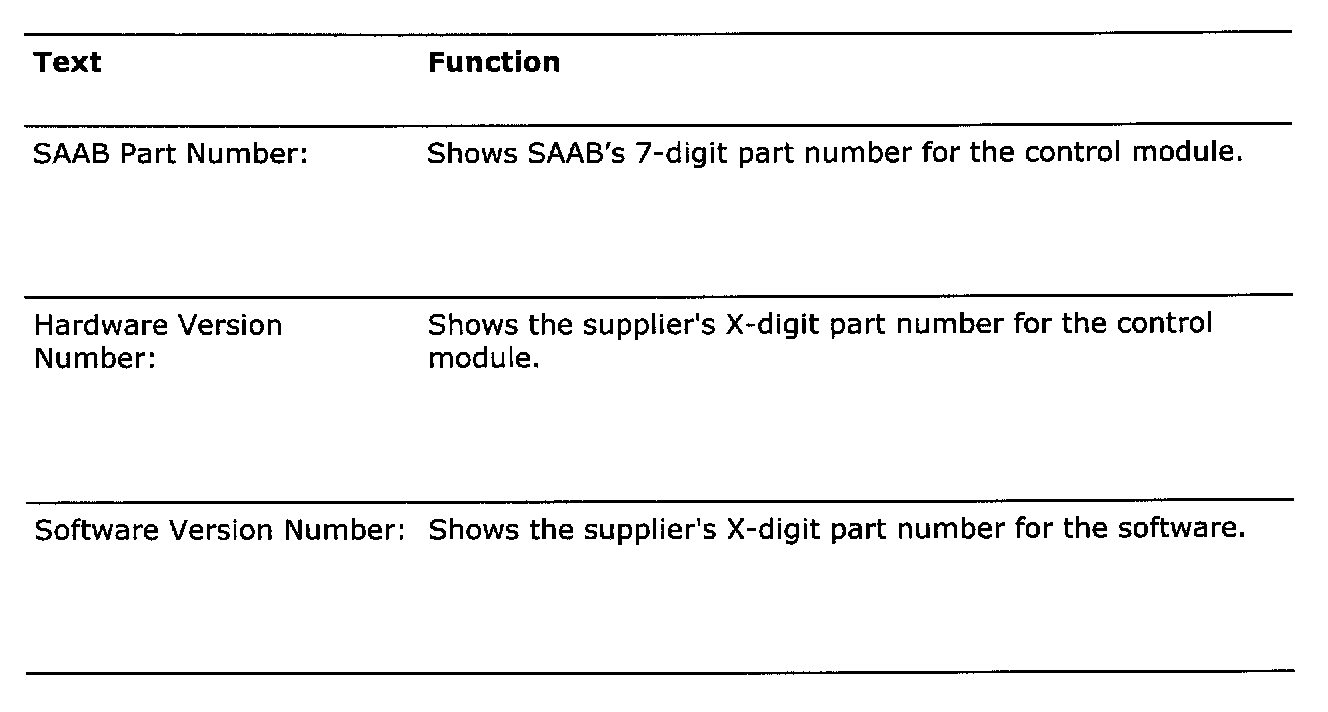

Menu System Information
