Tech 2 Menu Structure

Tech 2 Menu Structure
Diagnostic Trouble Codes (DTC)
Read Values/Activate
Immobilizer
Adjustment
Programming
Snapshot
System Information

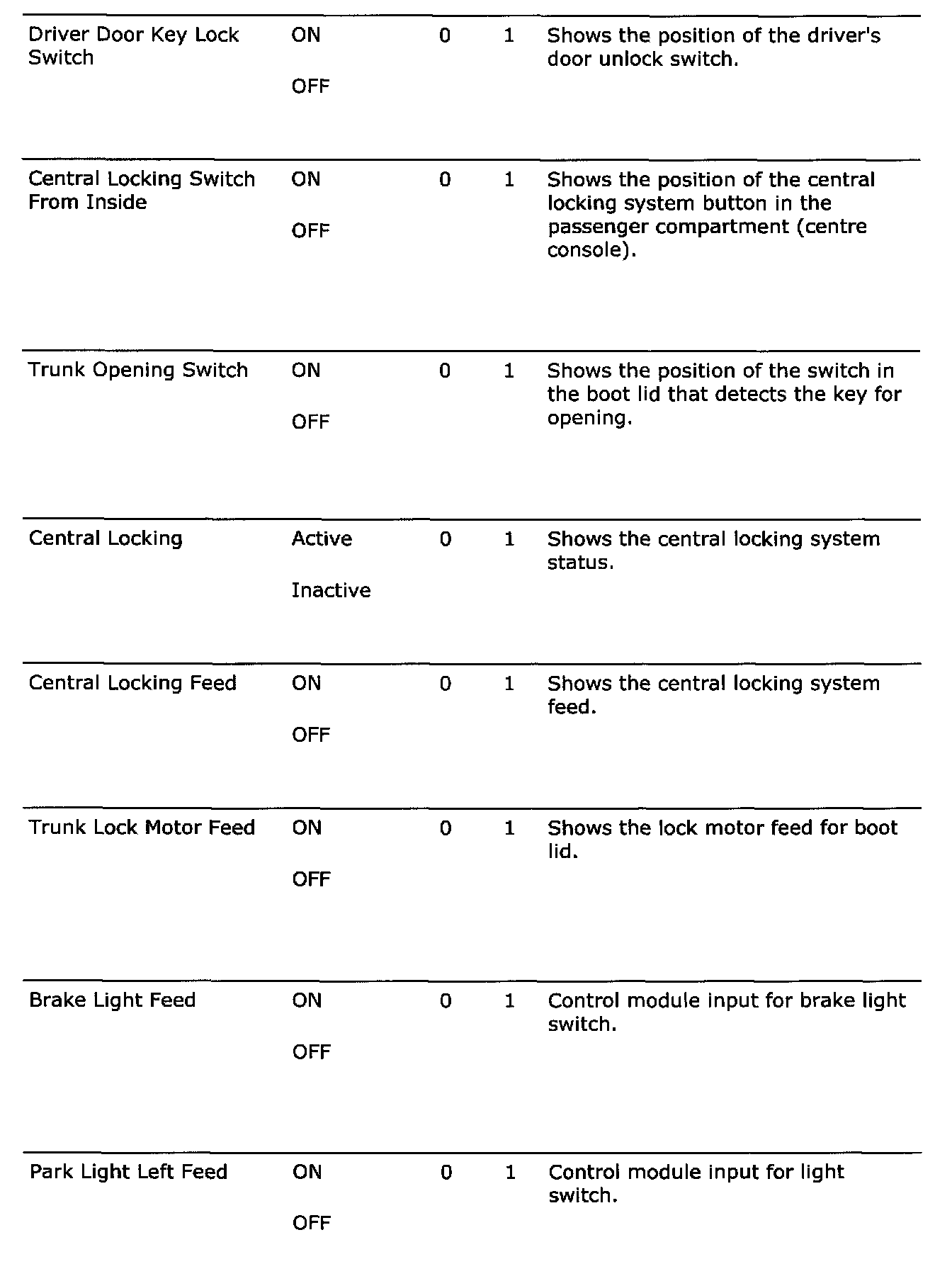

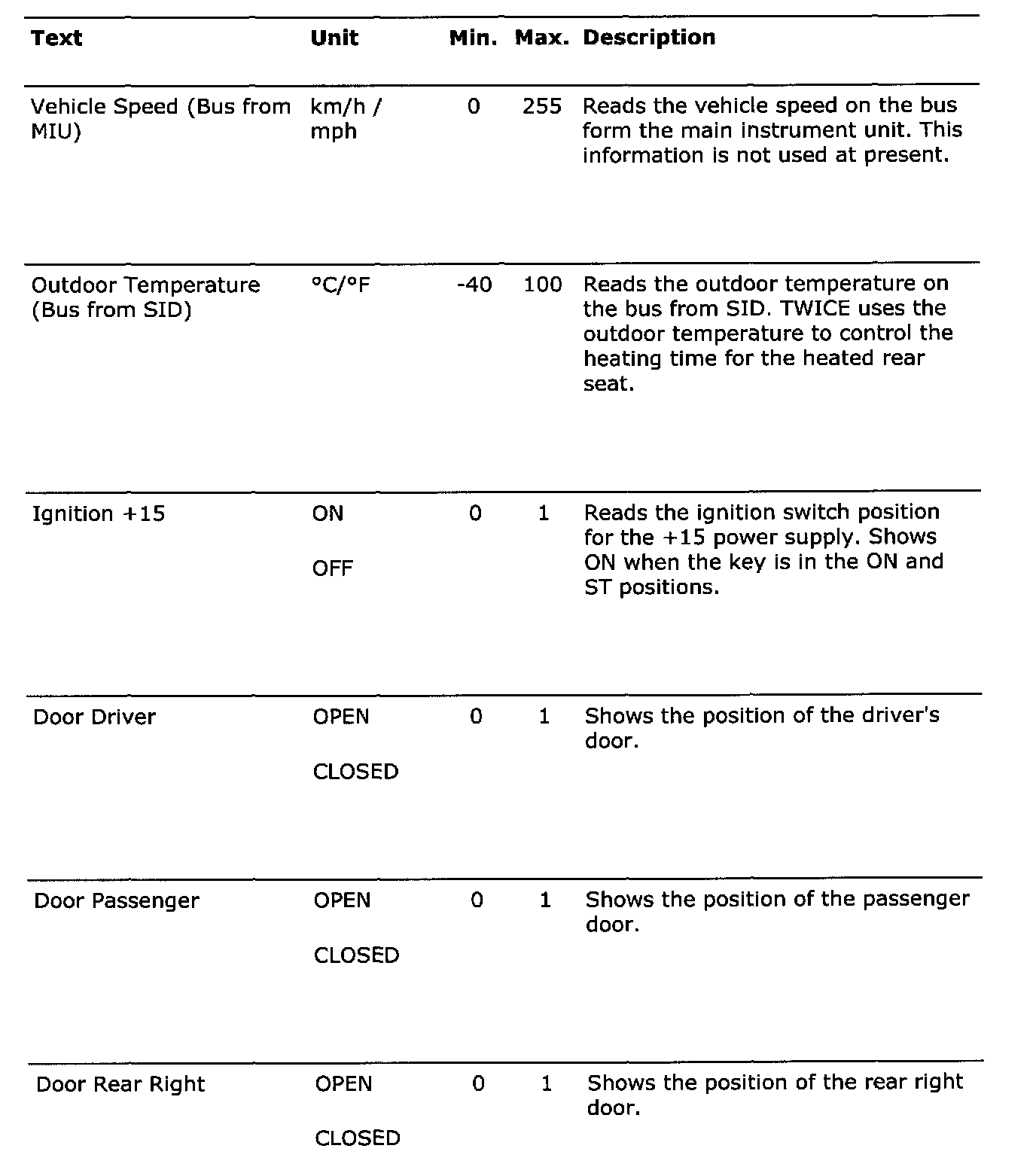

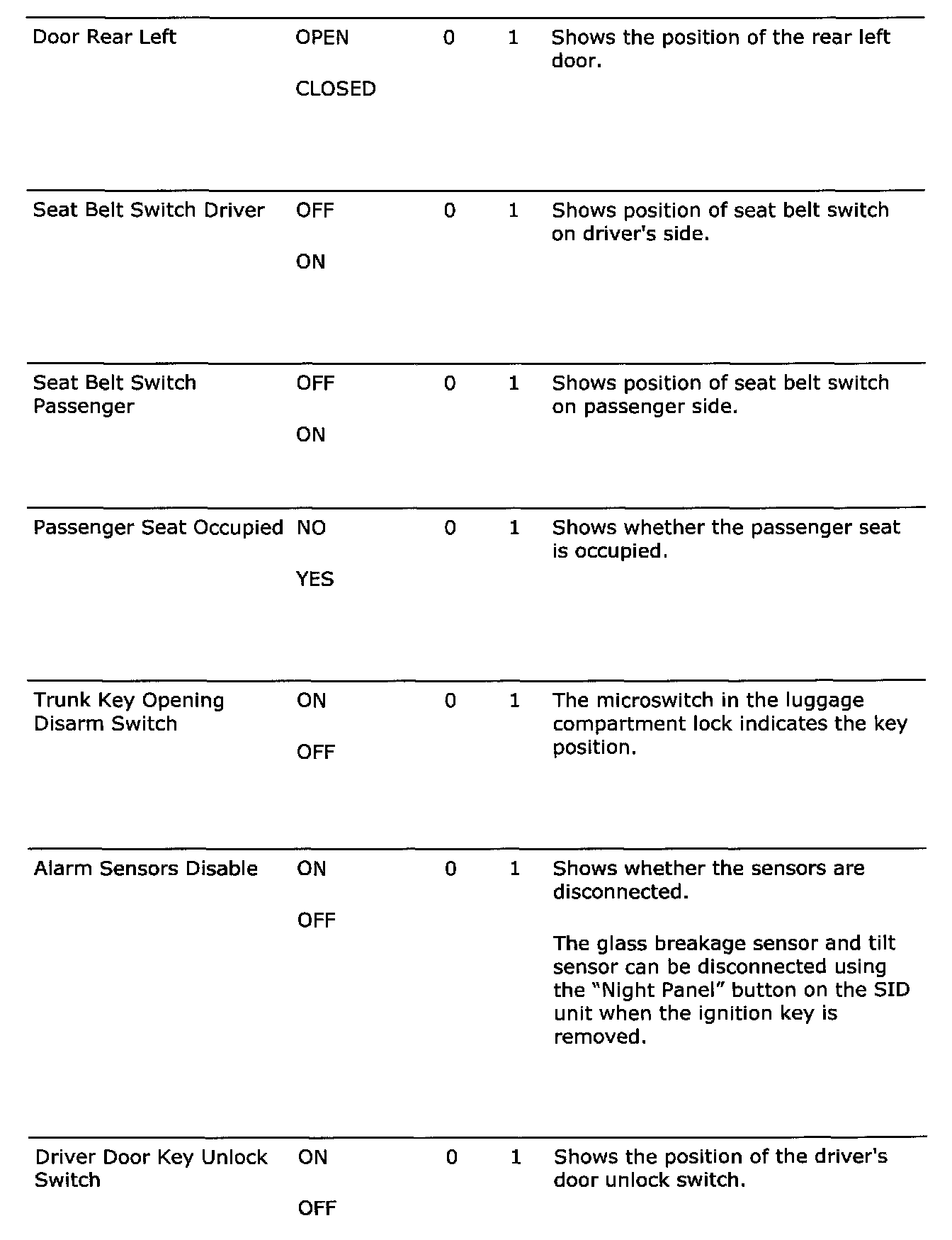

Menu "Read Values"

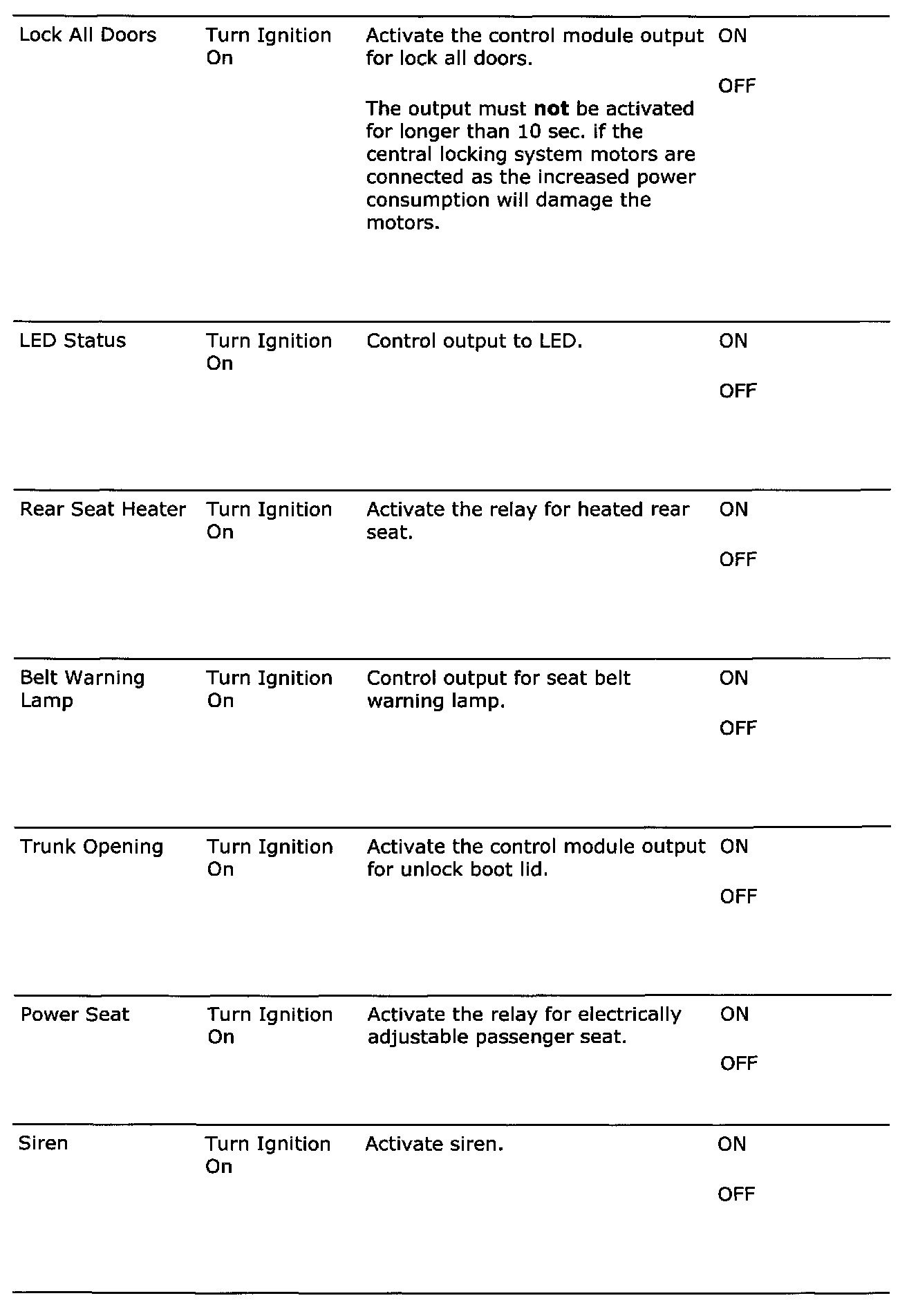

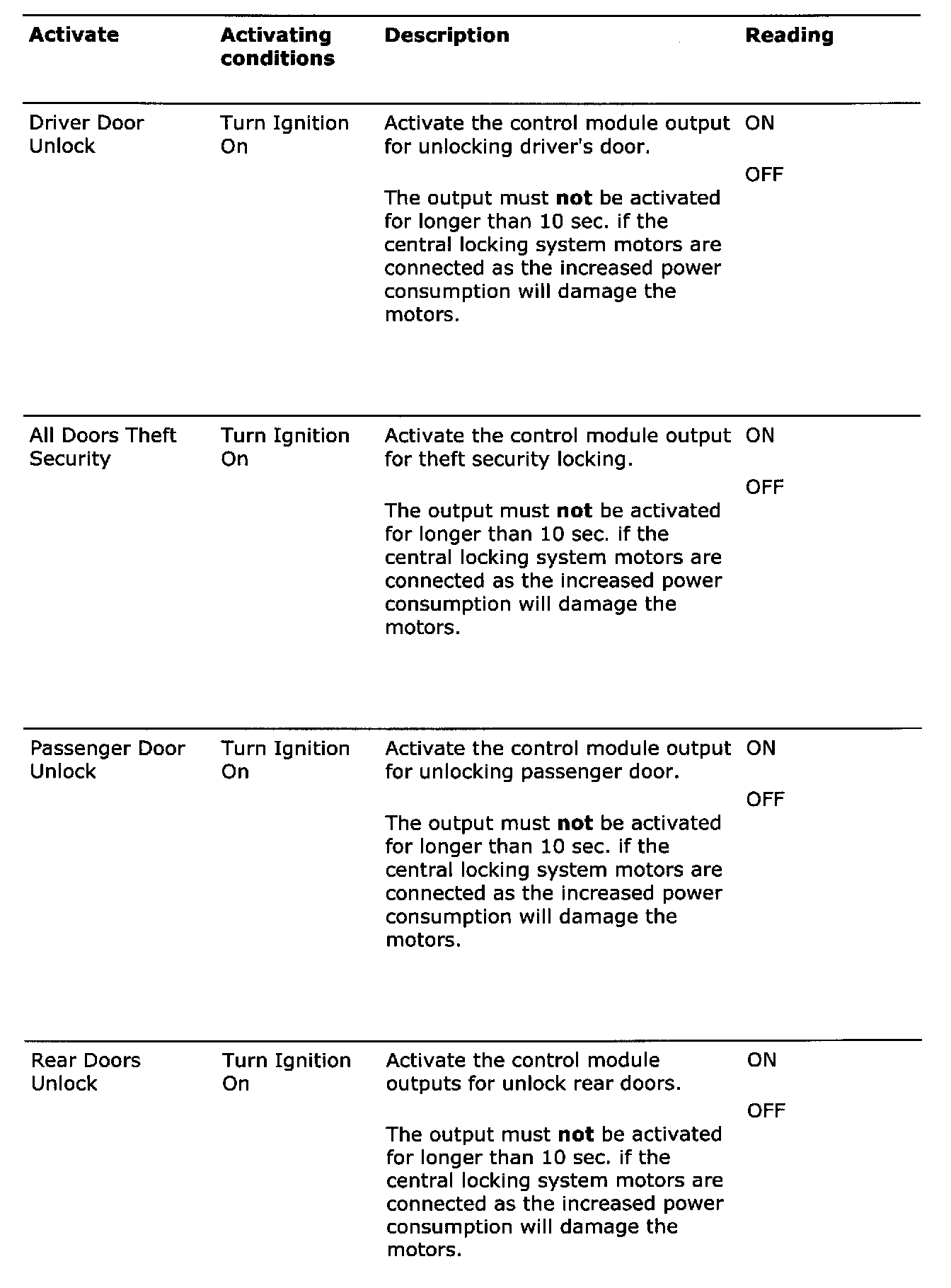

Menu "Activate"

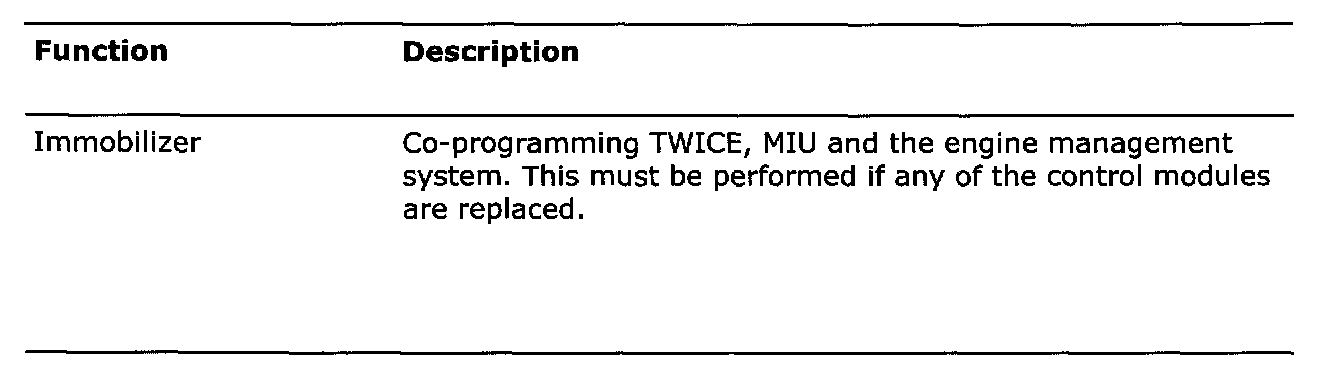

Menu "Immobilizer"

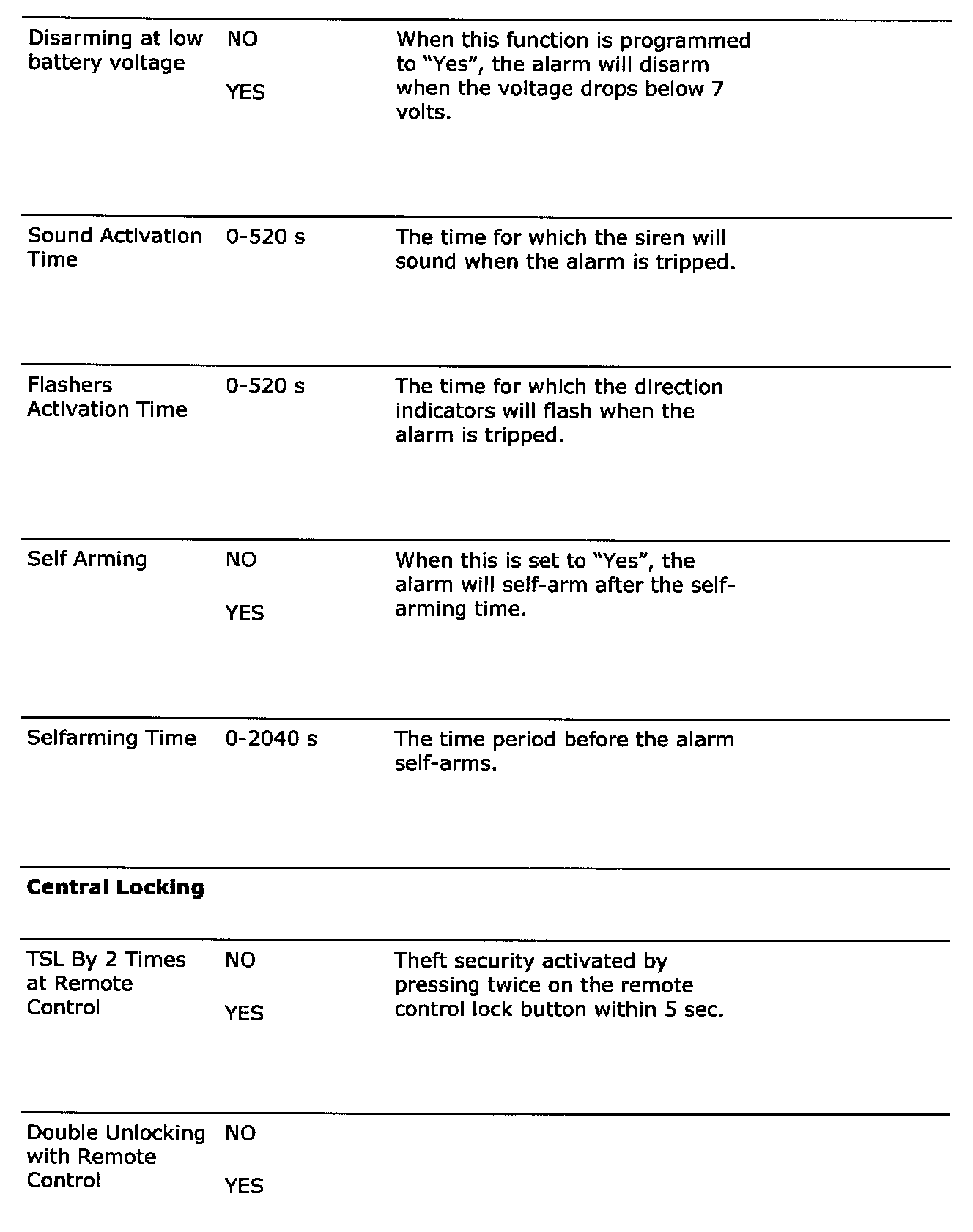

Menu "Adjustment"

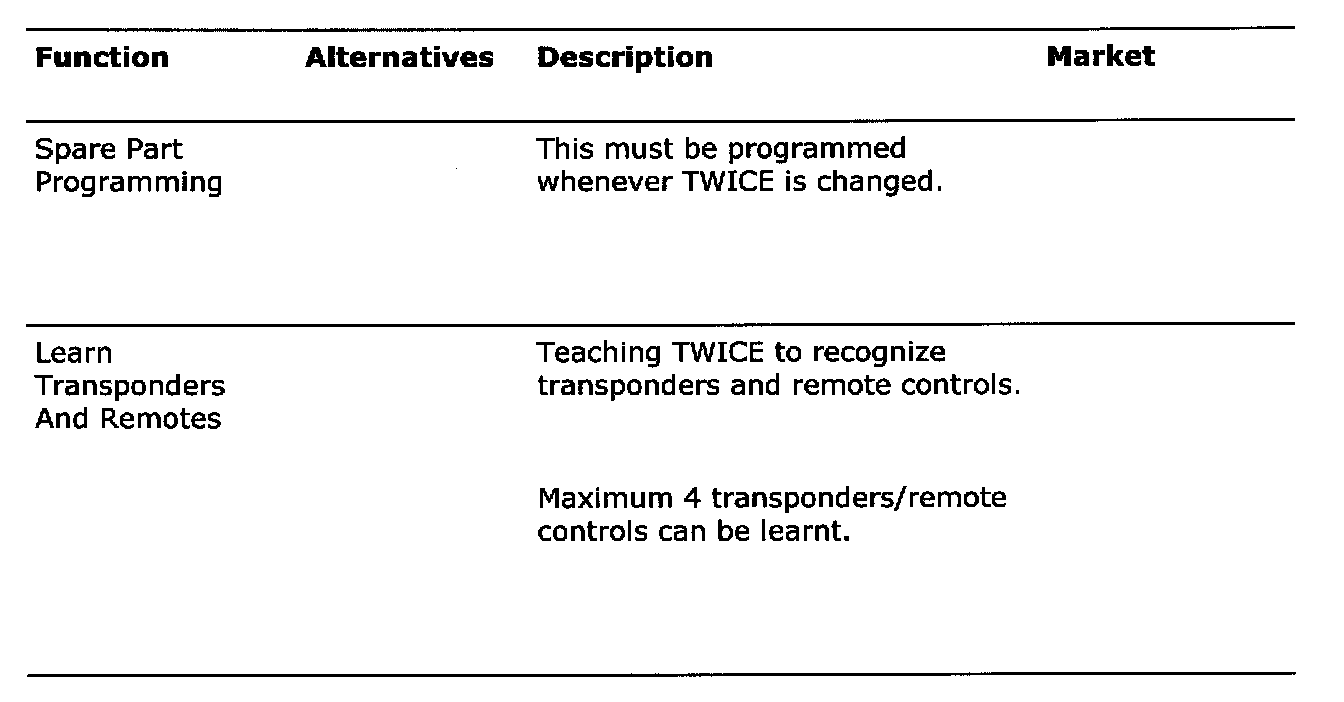

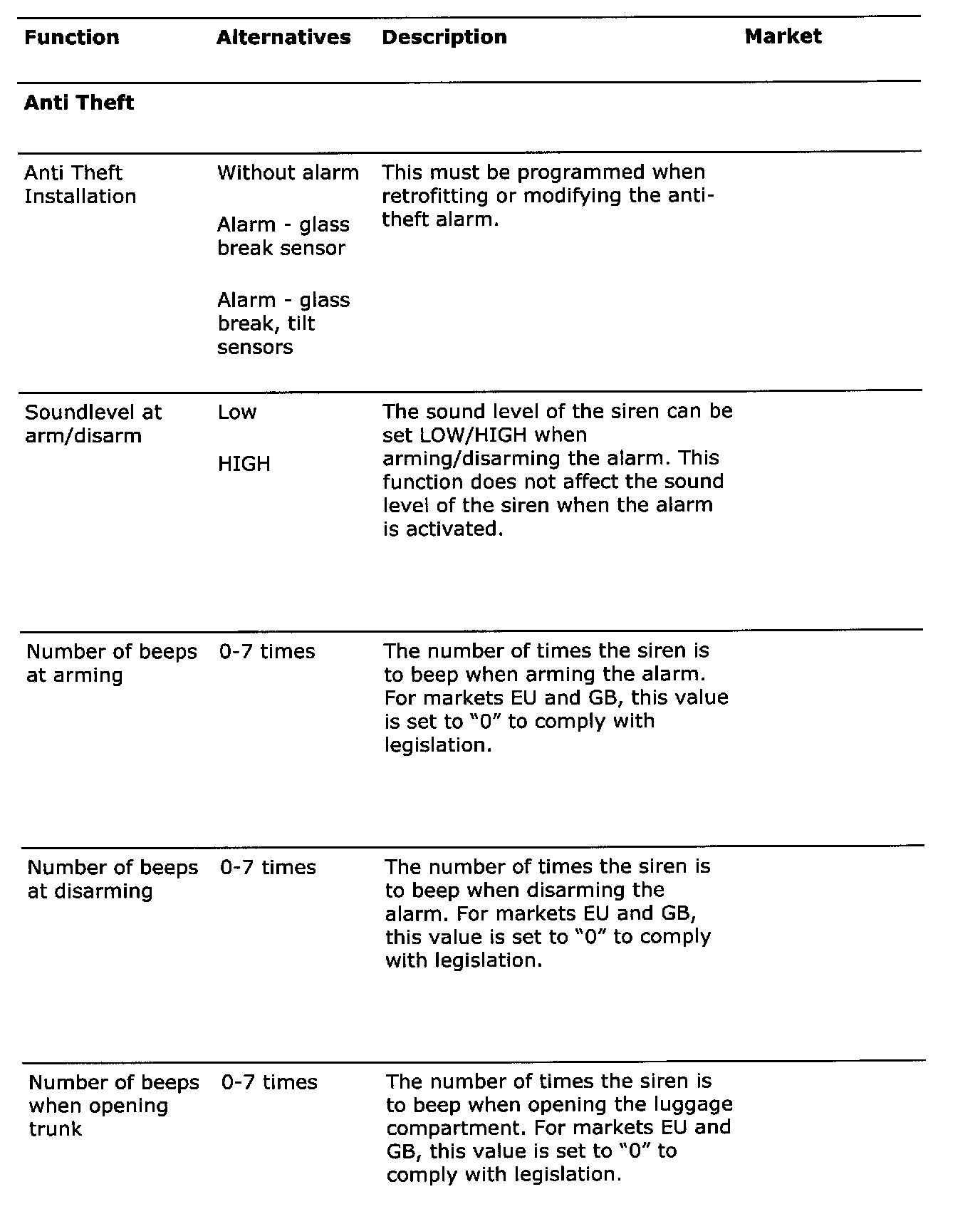

Menu "Programming"







Menu "System Information"

Text Function
SAAB Part Number: Shows SAAB's 7-digit part number for the control module.
Hardware Version Number: Shows the supplier's x-digit part number for the control module.
Software Version Number: Shows the supplier's x-digit part number for the software.
