Alarm Tripped




Alarm tripped

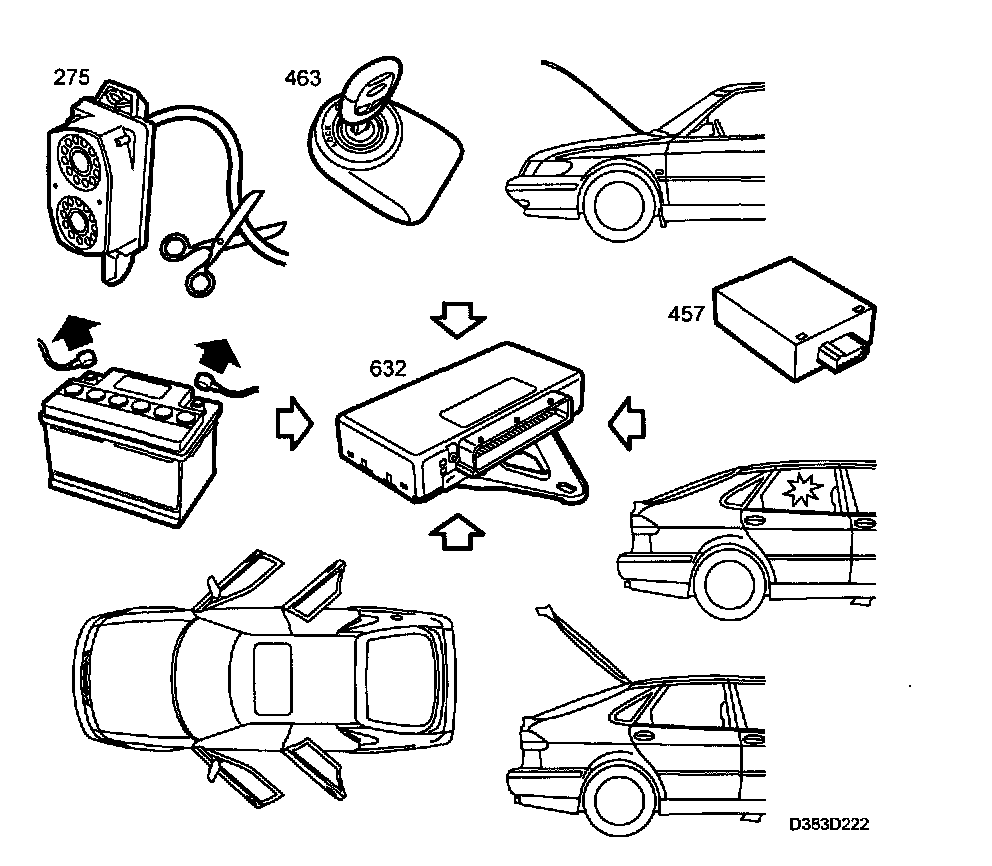

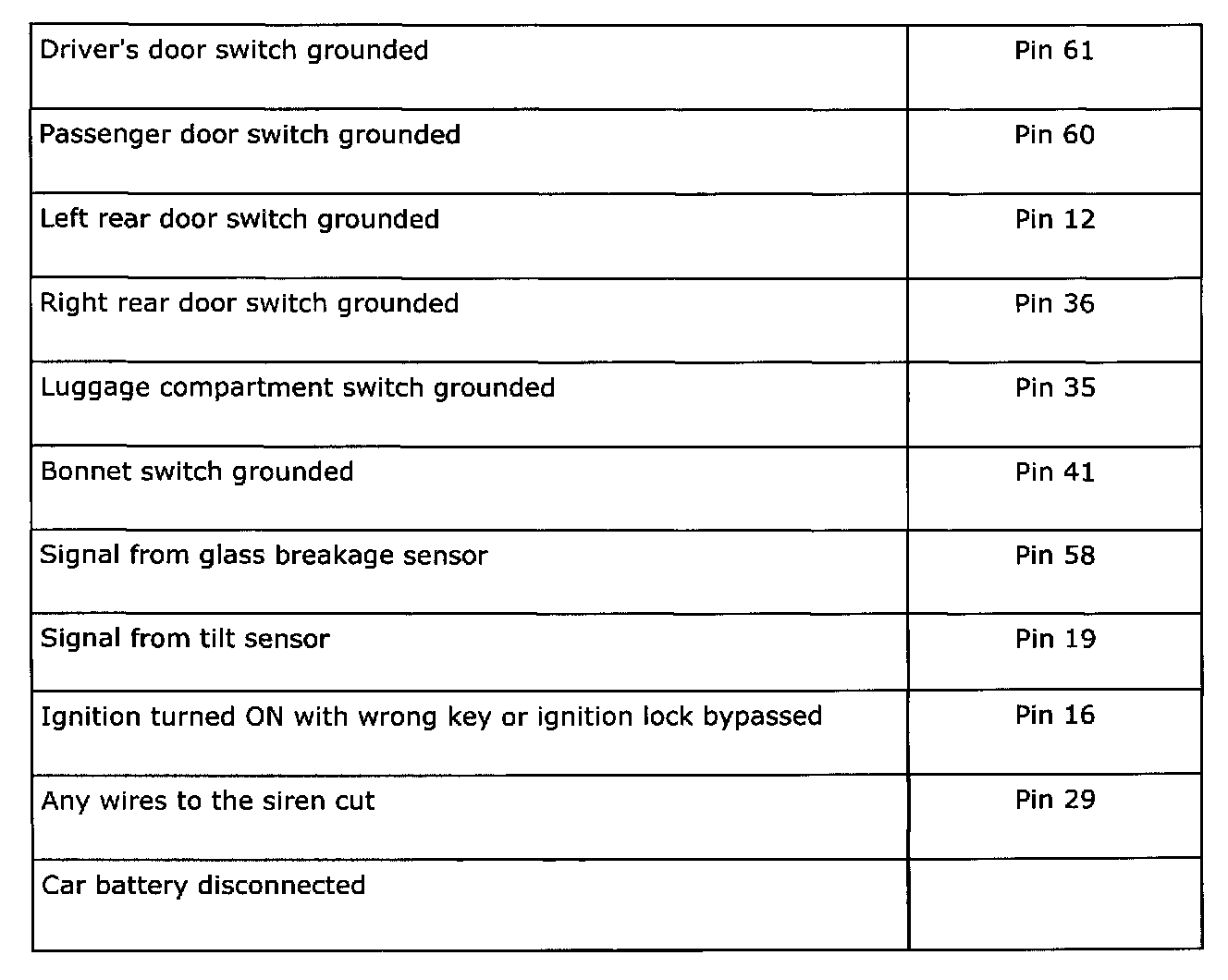

When the alarm is armed, it is tripped if alarm information reaches the TWICE control module at the connections given in the following situations:







When the alarm is tripped, the siren sounds for 30 seconds and the direction indicators flash for 5 minutes. If a door is open, this is repeated 10 times.

To stop an alarm, it must be disarmed with the remote control. This is done by pressing one of the UNLOCK buttons on the remote control or by turning the key in the ignition.


IMPORTANT

This type of alarm tripping is standard (on delivery). The flash and sound times can be reprogrammed as required for the market concerned.
