Alarm Module: Service and Repair

Control Module

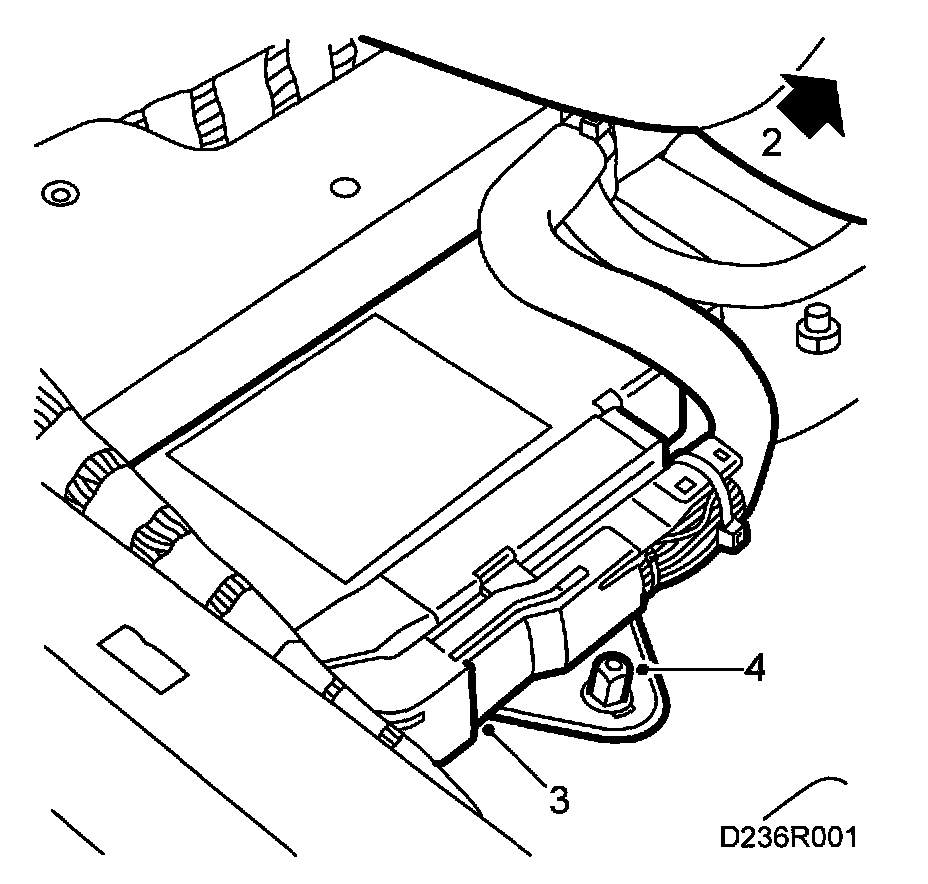

To remove







1. Undo and lift out the left-hand front seat.
2. Detach and fold away the carpet. (3D: the belt guide must be detached first.)
3. Unplug the connector to the electronic control module.
4. Unscrew 1 nut and lift away the control module.

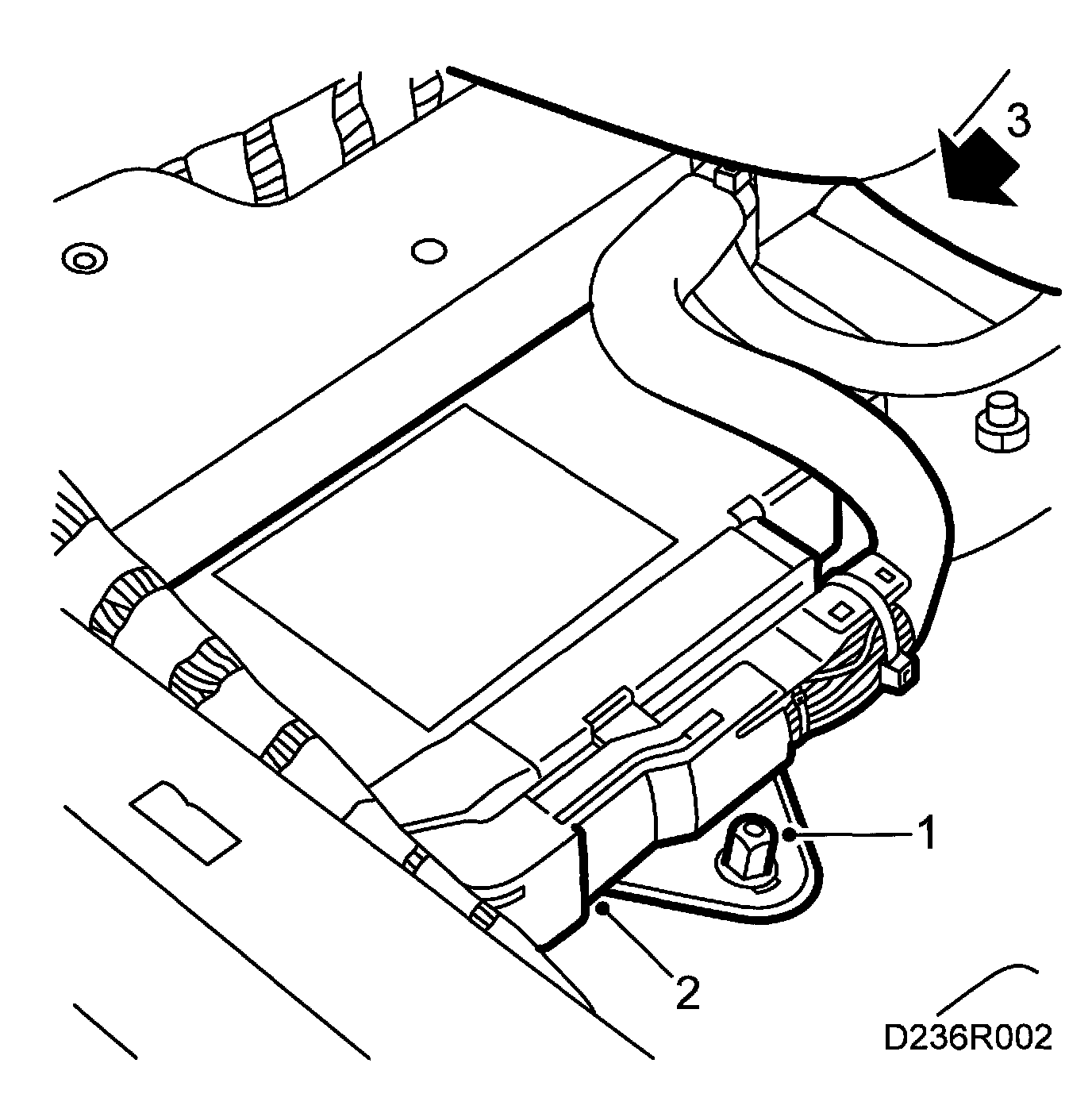

To fit







1. Fit the control module and screw it down.
2. Plug in the connector to the control module.
3. Replace the carpet. (3D: fit the belt guide.)
4. Refit the front seat.
5. Spare parts programming must be carried out after changing the TWICE control module.
