B1115

B1115

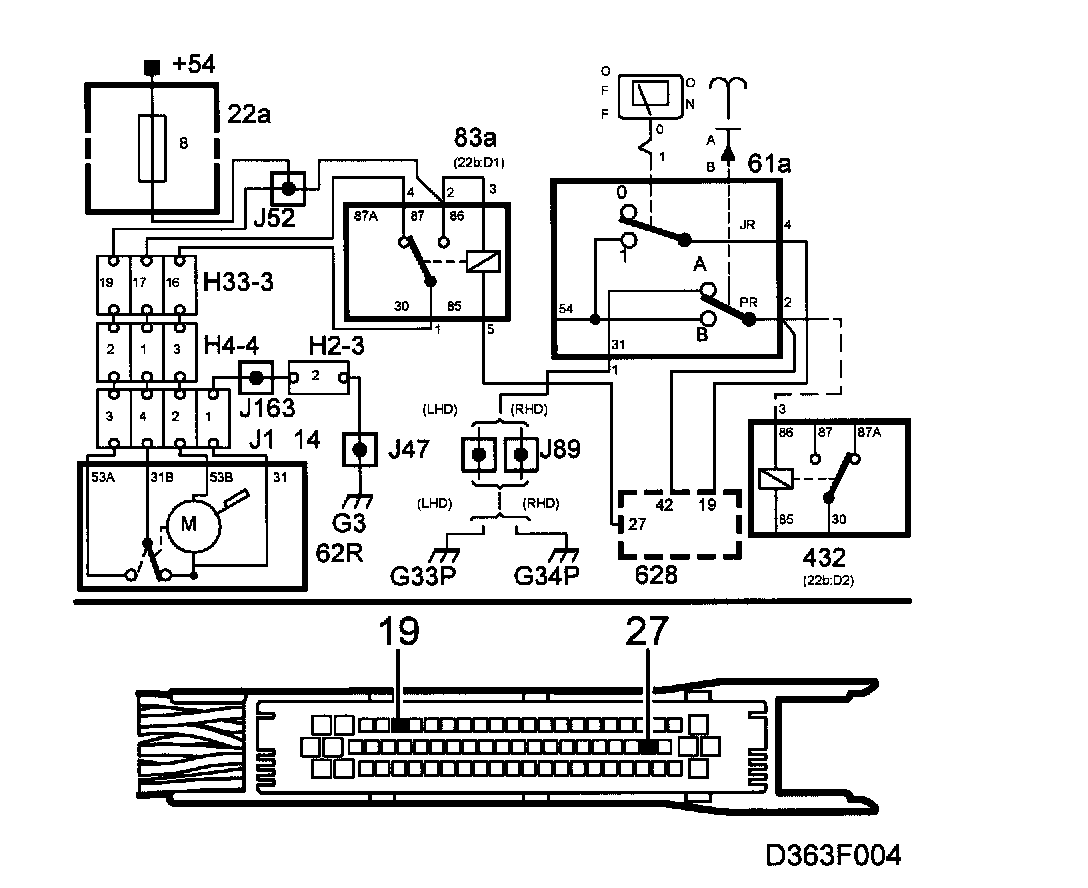

Relay, Rear Window Wiper







Fault Symptoms
The intermittent function for the rear window wiper is not working.

Circumstances
The control module output is monitored and a DTC generated if there is a:
- Break/short circuit to ground.
- Short circuit to B+.

DTCs are not generated when the voltage is below 11 V and the diagnostic communication is in use.

Diagnostic Help
The output from DICE can be activated with the diagnostic tool.
