Home >> Saab >> 2001 >> 9-3 (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams >> Electrical Diagrams

Electrical Diagrams

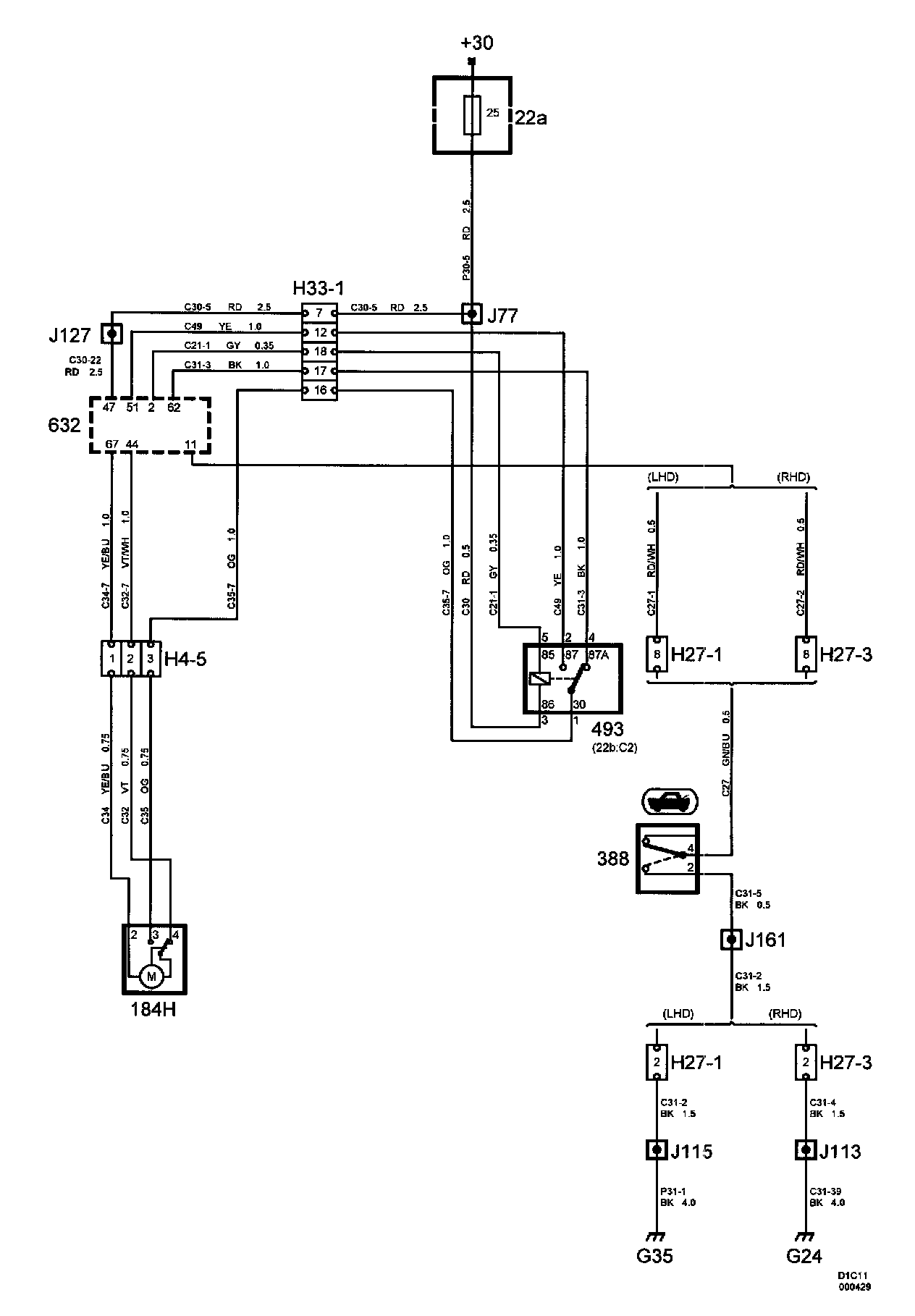

Electrical Opening Of Luggage Compartment Lock 3D/5D

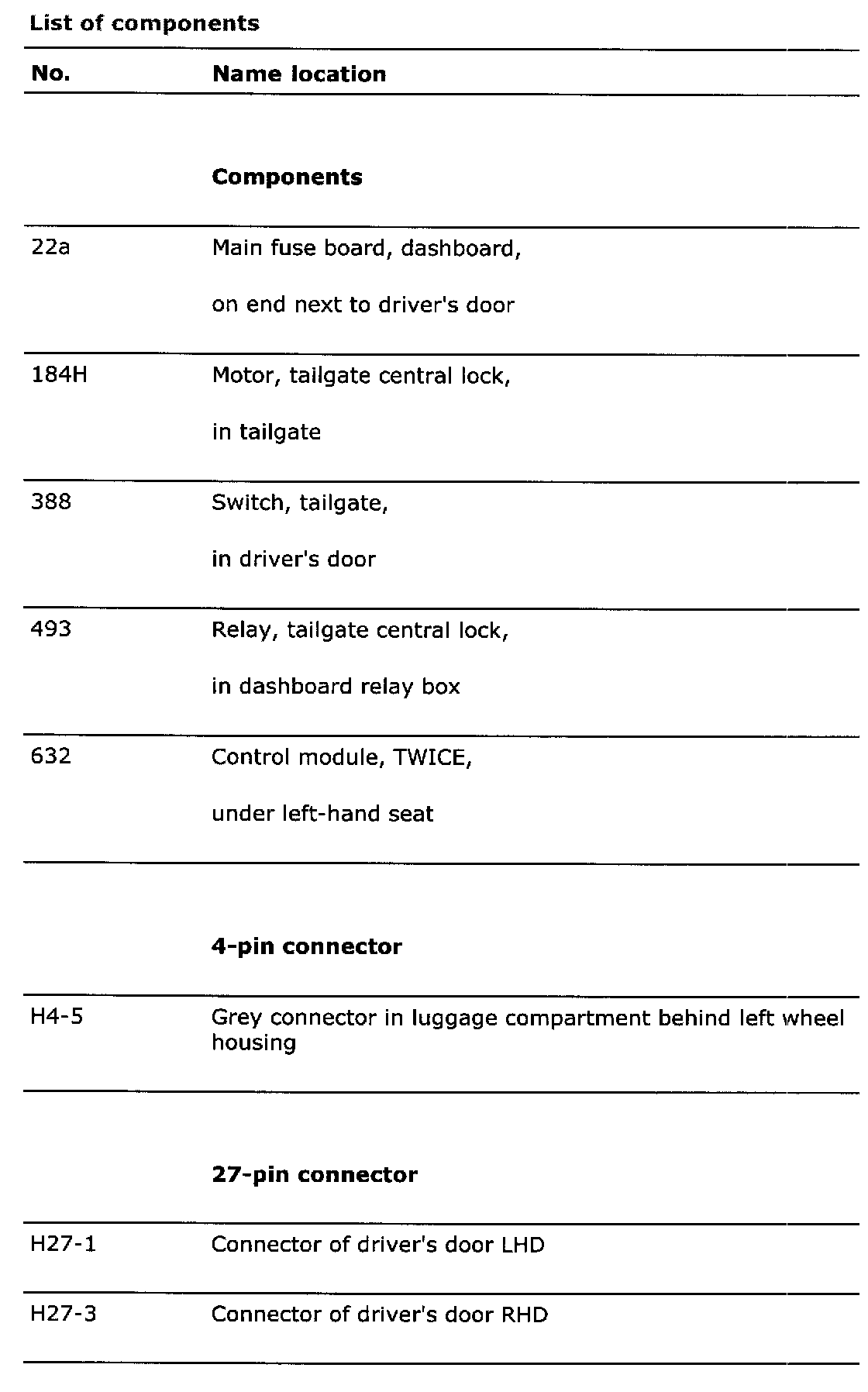

Part 1:

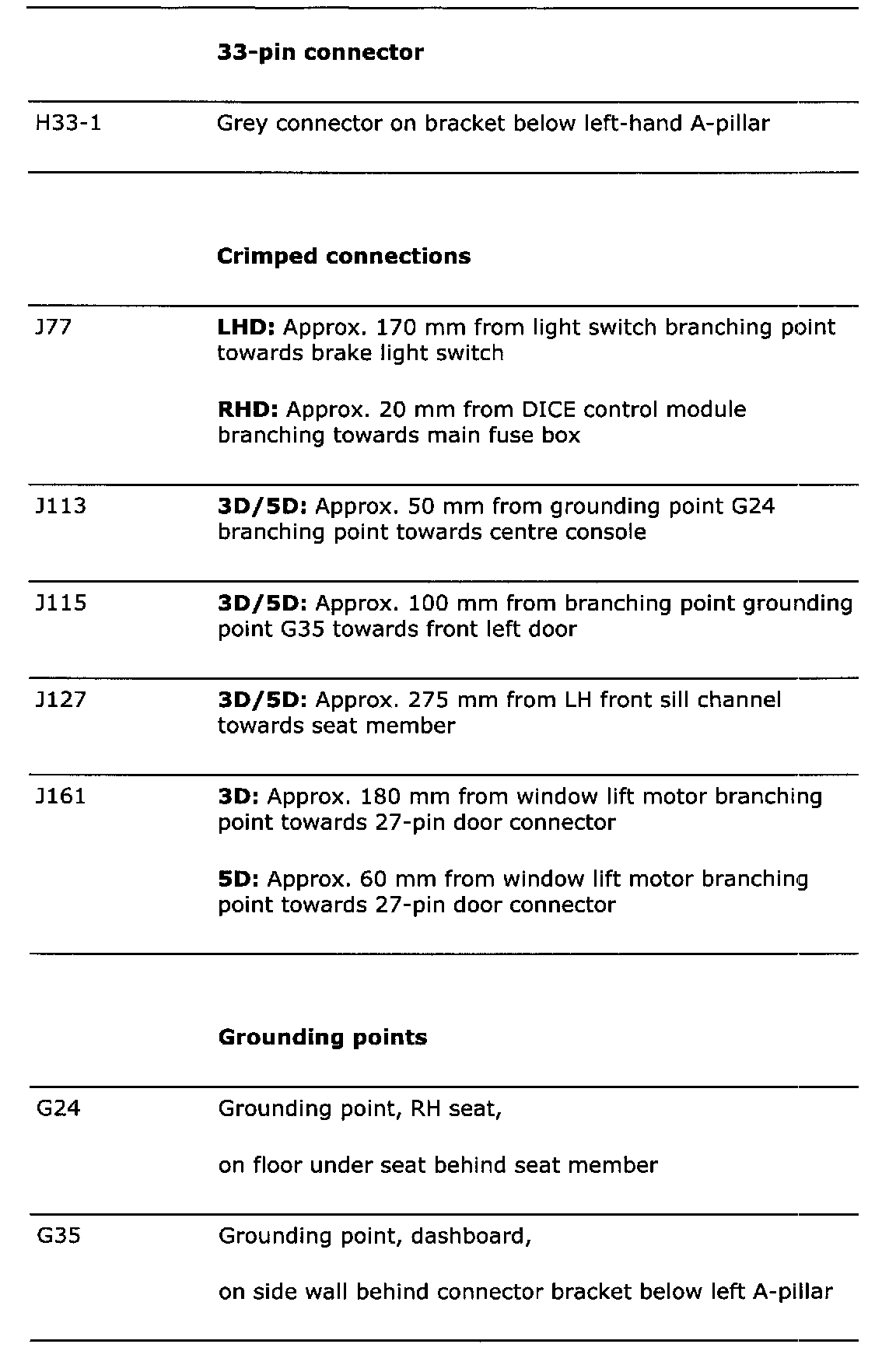

Part 2:
