Home >> Saab >> 2001 >> 9-3 (9400) L4-2.0L Turbo (B205) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> Test Readings, 18-Pin Telephone Connector

Test Readings, 18-Pin Telephone Connector

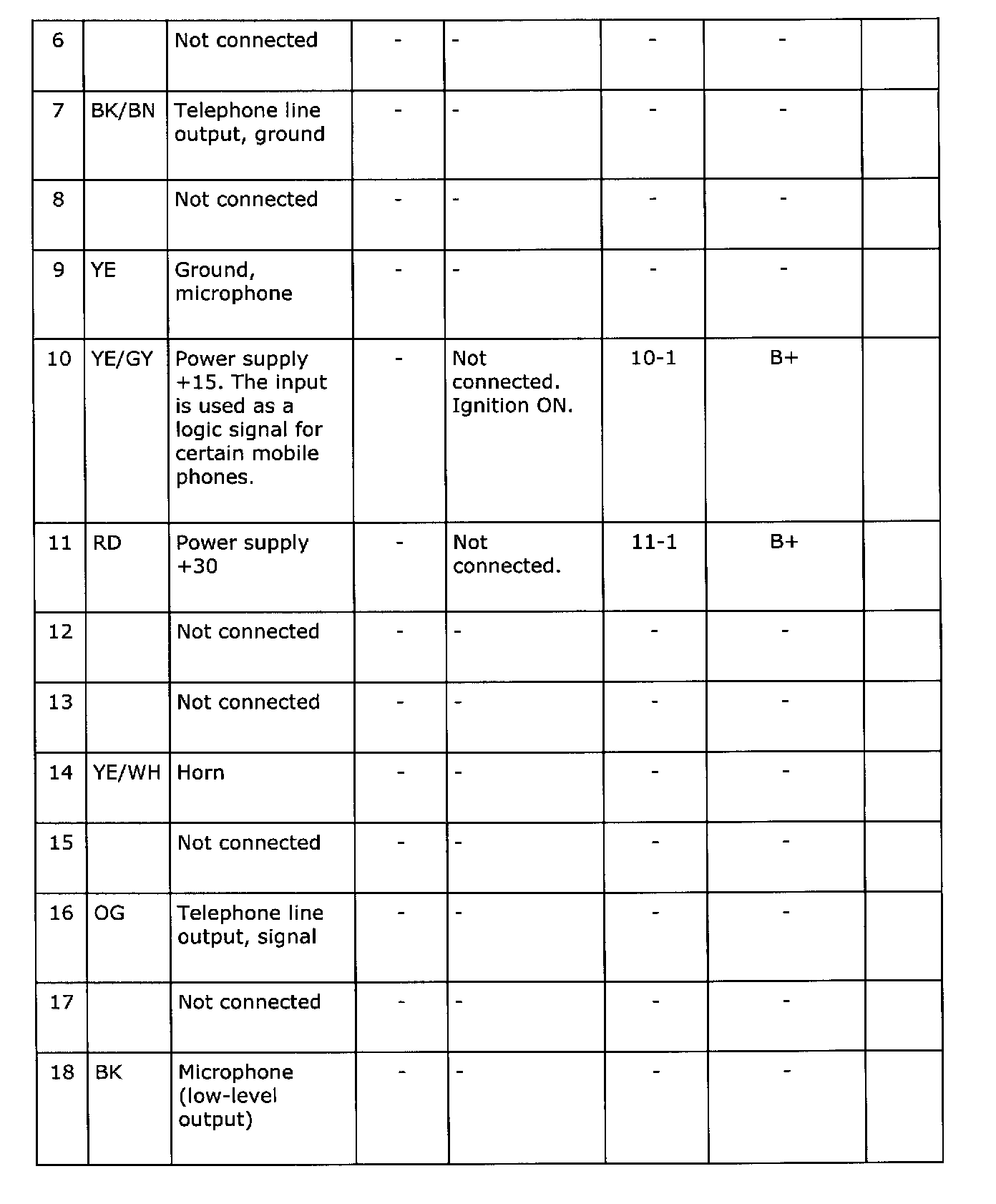

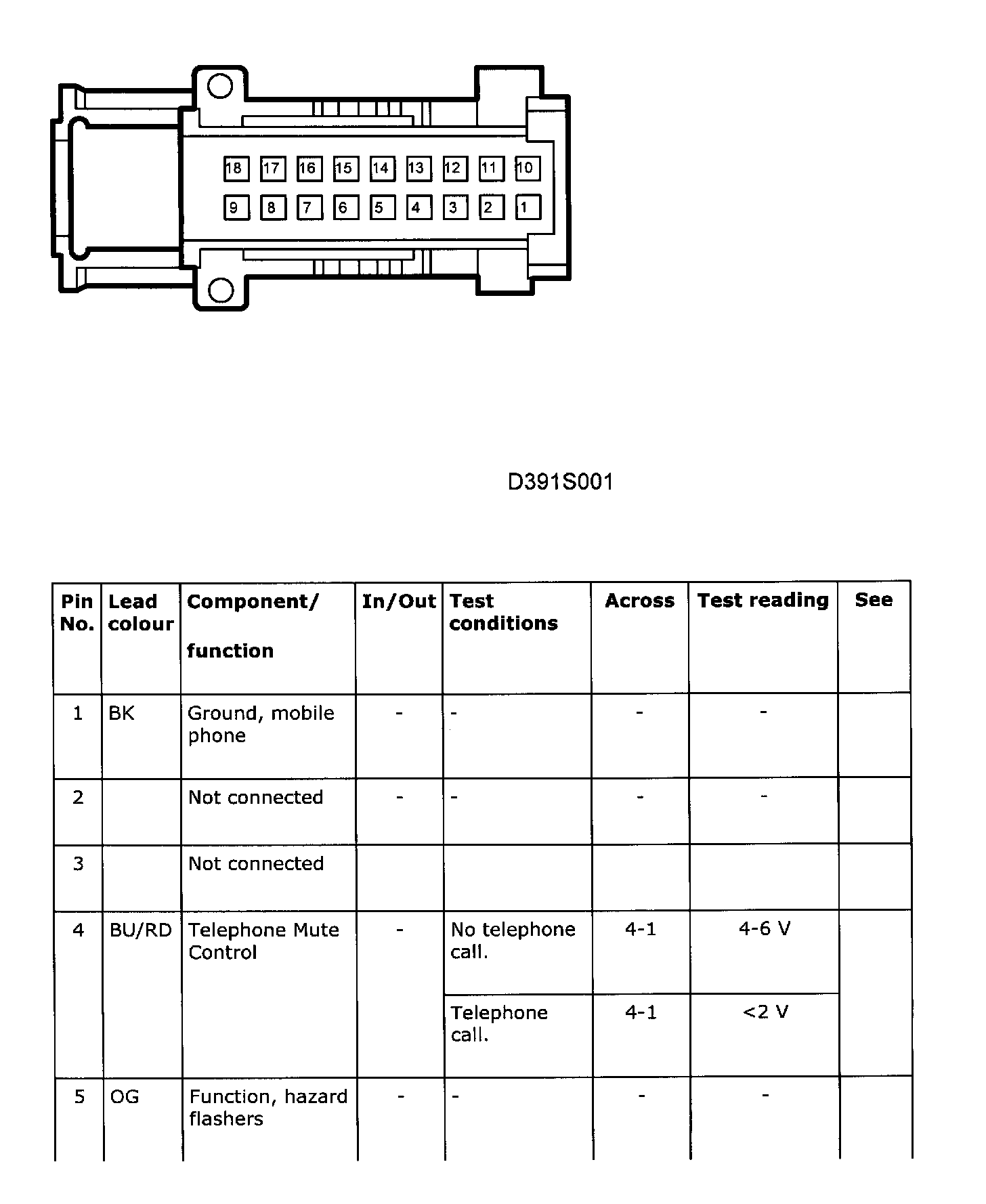

Test Readings, 18-pin Telephone Connector


Part 1:






Part 2:
