Implementation of Driving Cycle

Implementation of Driving Cycle

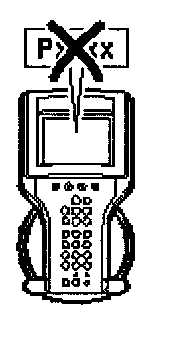

- Clear diagnostic trouble codes

Unplug the connector:
- EVAP canister purge valve (321)
- Connect test lamp 86 11 857 to the female connector.

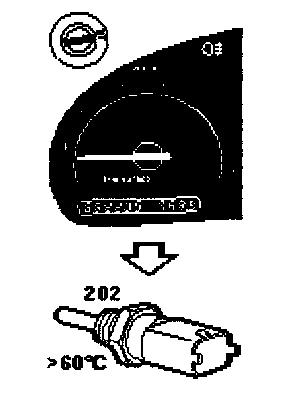

- Start the engine and let it idle until the coolant temperature exceeds 60 °C.

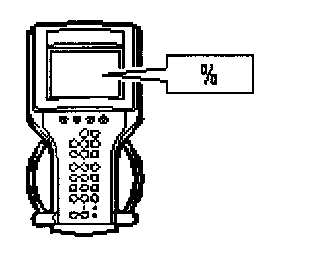

- Read value Purge Adaptation (Trionic).
- State what the diagnostic tool shows:

15% to +15% Performing A Driving Cycle

Other value Fault Not Rectified - I
