Control Module

To remove





1 Remove the blanking-off washers on the wiper spindle nuts and loosen the nuts slightly.
2 Loosen the wiper arms with a puller, special tool (part no.85 80 144). Remove the nuts and wiper arms.
3 Remove the rubber wiper spindle seals.

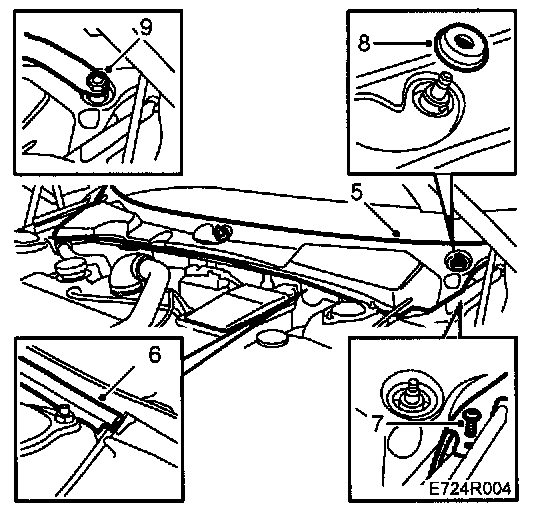

4 Remove the two screw clips on the ends of the windscreen cover.
5 Loosen the rubber seal.
6 Remove the windscreen cover by grasping the front edge and lifting upward/forward. Be careful with the bonnet release wire of the left-hand side.

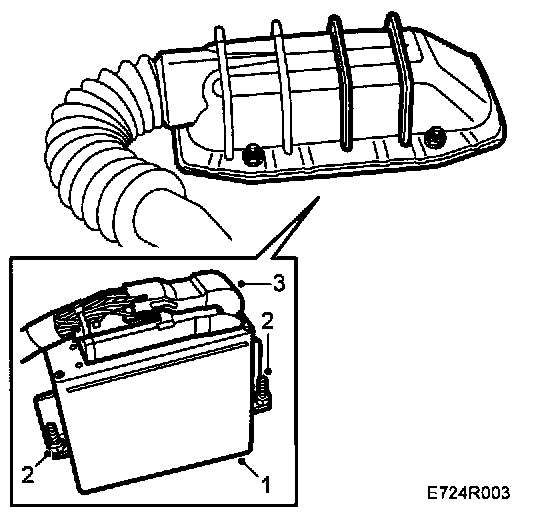

7 Undo the protective cover on the control module.





8 Tilt up the cover and unplug the control module multipin connector by releasing the catch on the right.
9 Undo the 2 control module retaining nuts, a 10 mm magnetic socket can be used
10 Lit the control module straight up.

To fit

1 Position the control module from above.





2 Fit the 2 control module retaining nuts.
3 Spray the control module multiconnector with Kontakt 61 (part no.30 04 520) and plug in the connector
4 Fit the protective cover on the control module.
5 Fit the windscreen cover. Be careful with the bonnet release wire on the left-hand side.





6 Fit the rubber seal.
7 Fasten the screw clips on the ends of the windscreen cover.
8 Fit the rubber wiper spindle seals.
9 Fit the nuts on the wiper spindles with the blanking-off washers on the nuts.
10 Reset immobilization as follows:
- Connect Tech2 and turn the ignition to ON
- Select Body and TWICE
- Select Immobilization. After 10 seconds the immobilizer is programmed.
