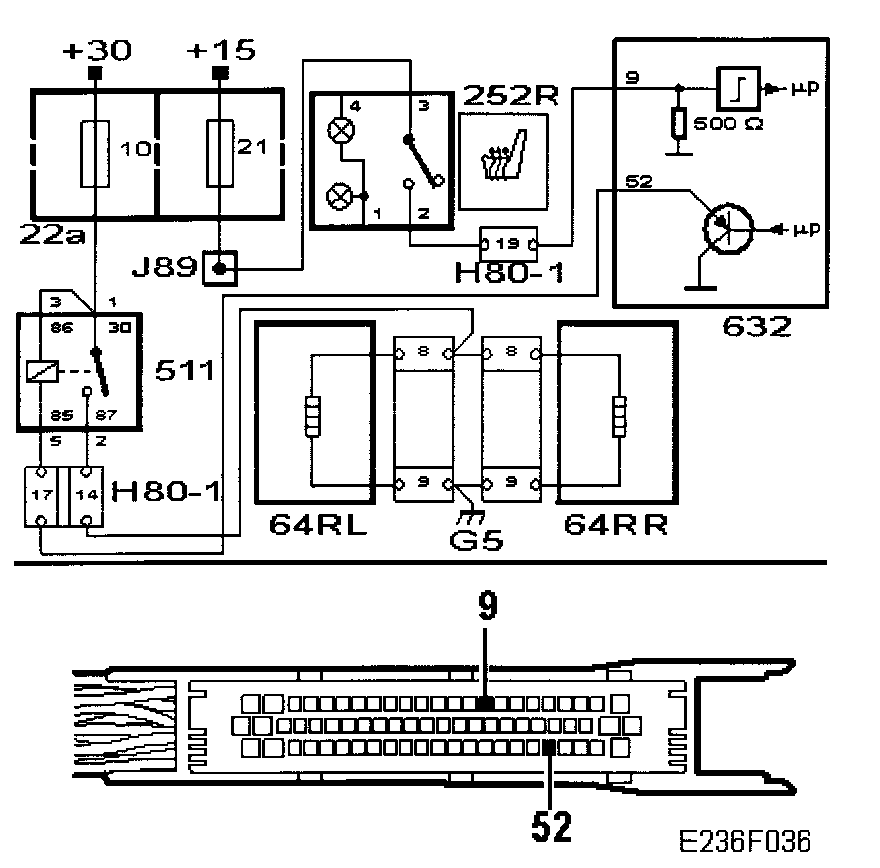

Checking the Ground Lead For the Heating Pads

Checking the Ground Lead For the Heating Pads

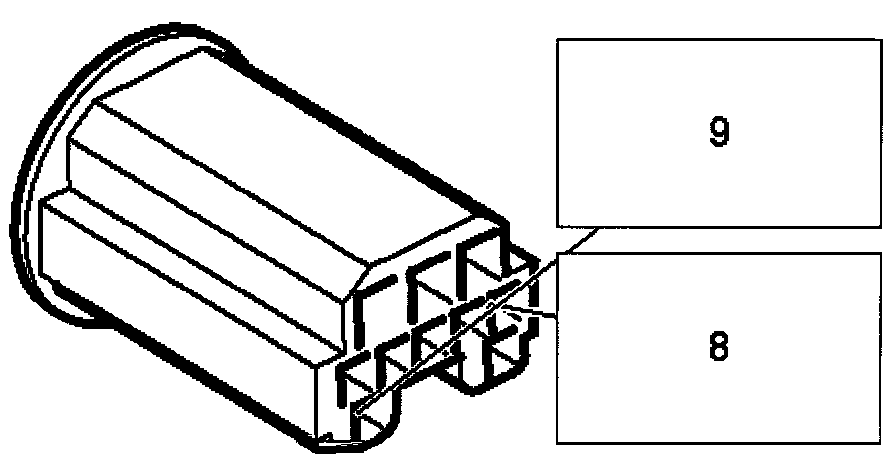

^ Connect test lamp 86 11 857 to pins 8 and 9 of the LH heating pad's female connector.







^ The test lamp should light.

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO ^ Rectifying the Lead - V

YES ^ Repair or replace the faulty heating pad.

After performing this procedure Final Check
