PSM System (Electrically Adjustable Driver's Seat)
PSM System (Electrically Adjustable Driver's Seat)

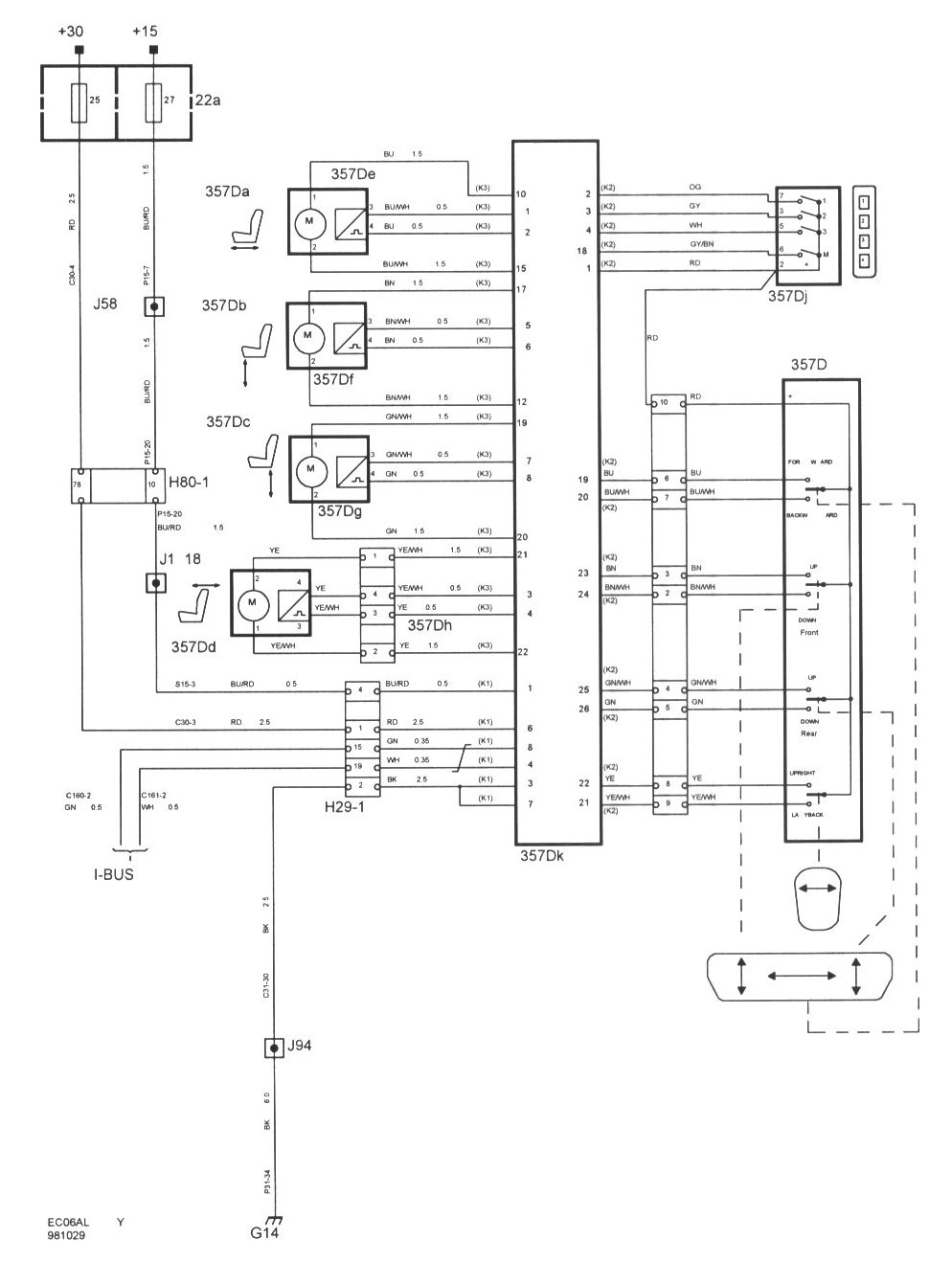

Diagram, LHD:

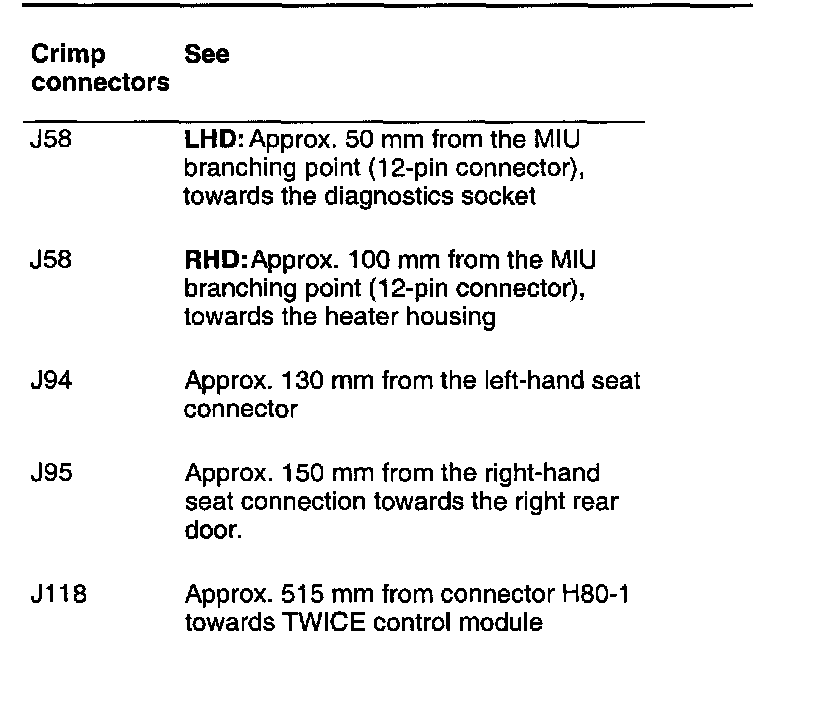

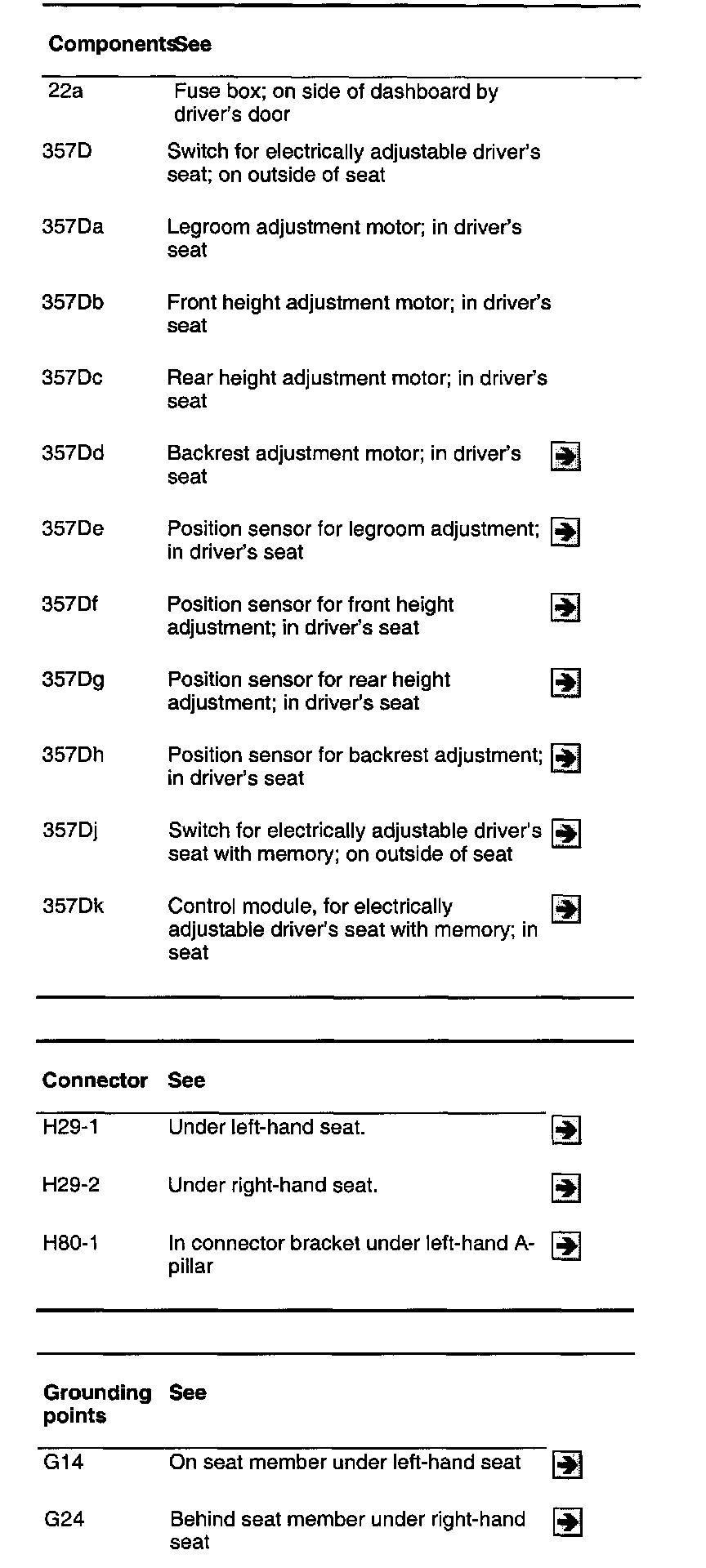

List Of Components, LHD, Part 1:

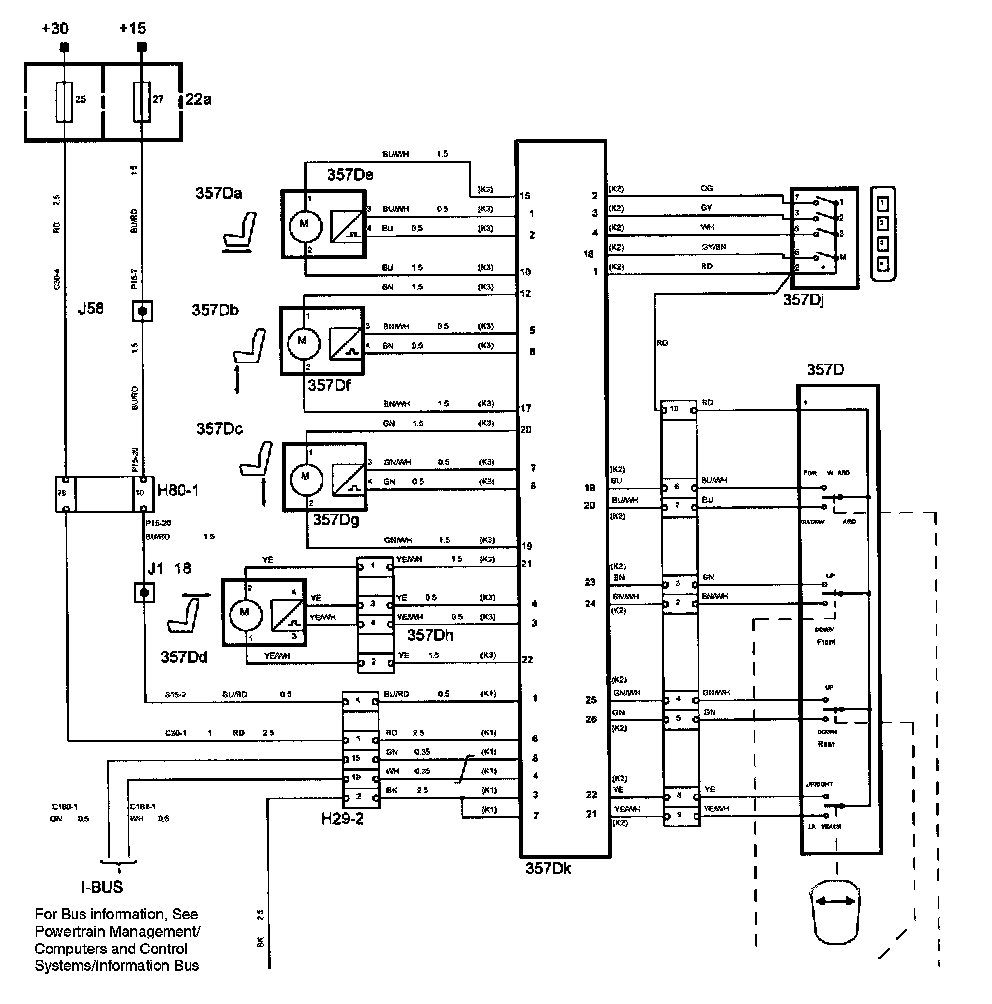

Diagram, RHD:

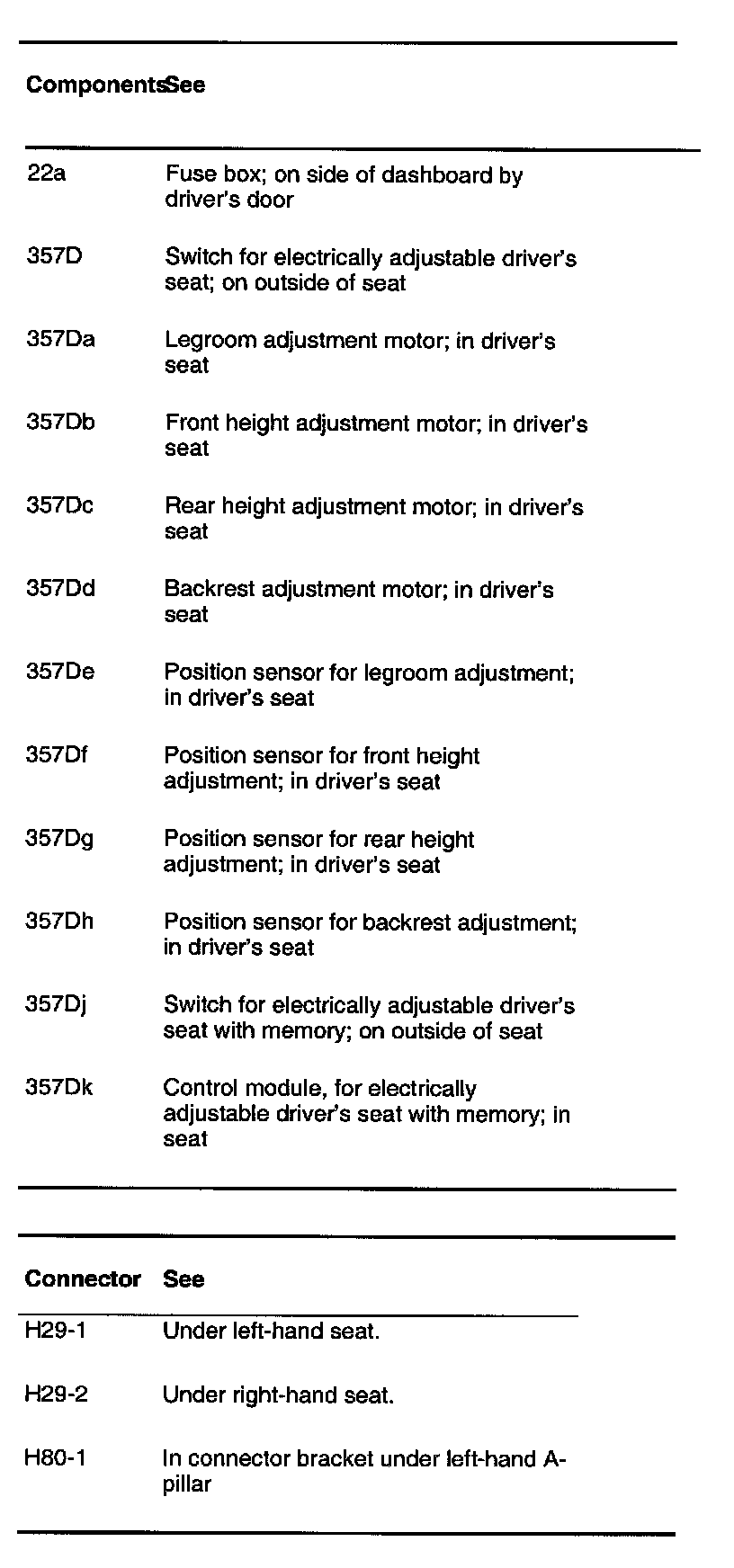

List Of Components, RHD, Part 1:

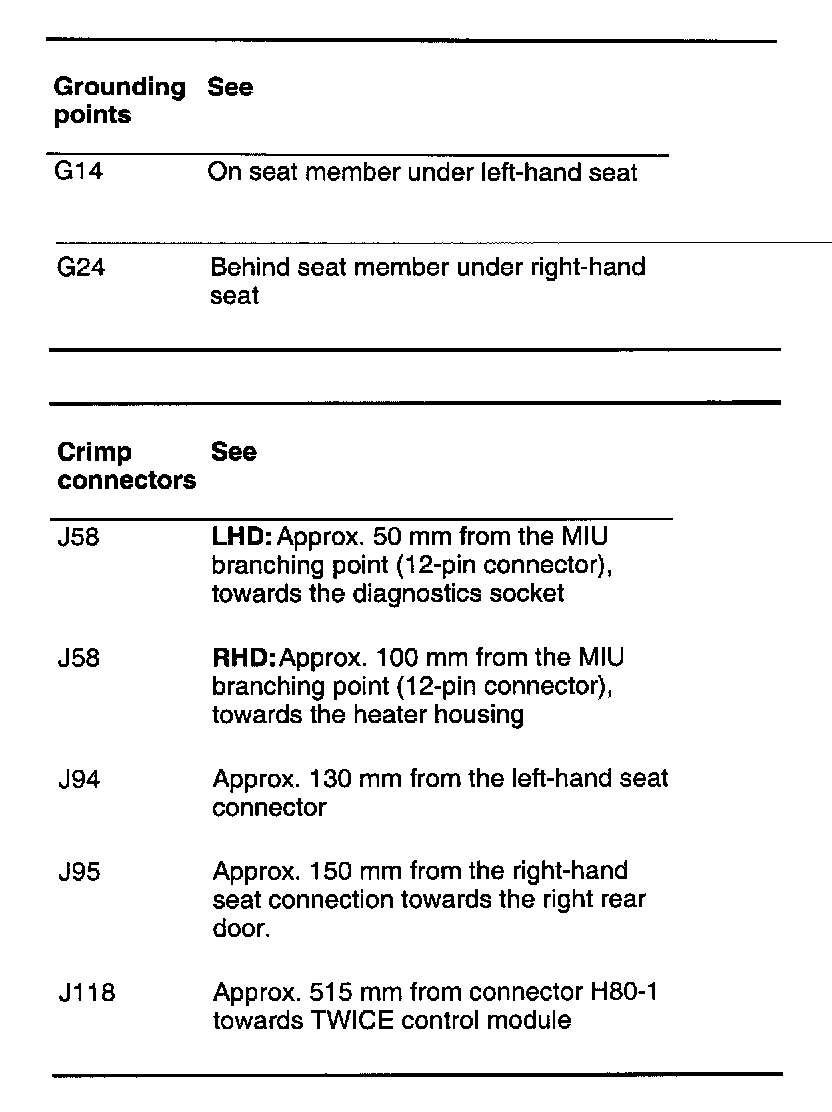

List Of Components, RHD, Part 2:
