Continuity Check - I

Continuity Check

















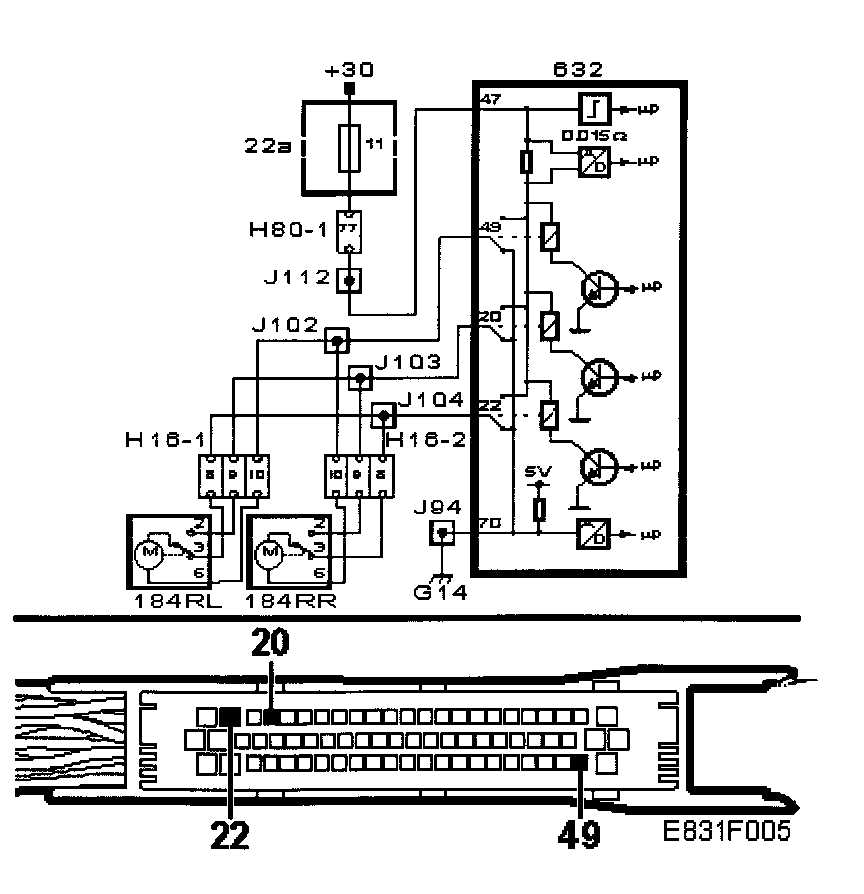

Take a resistance reading between

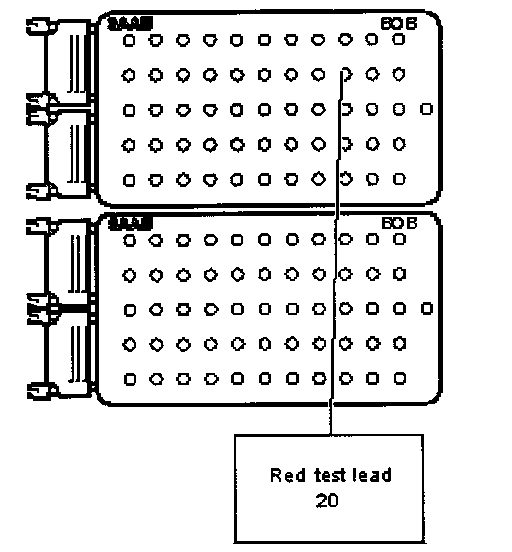

^ 20 - Breakout box

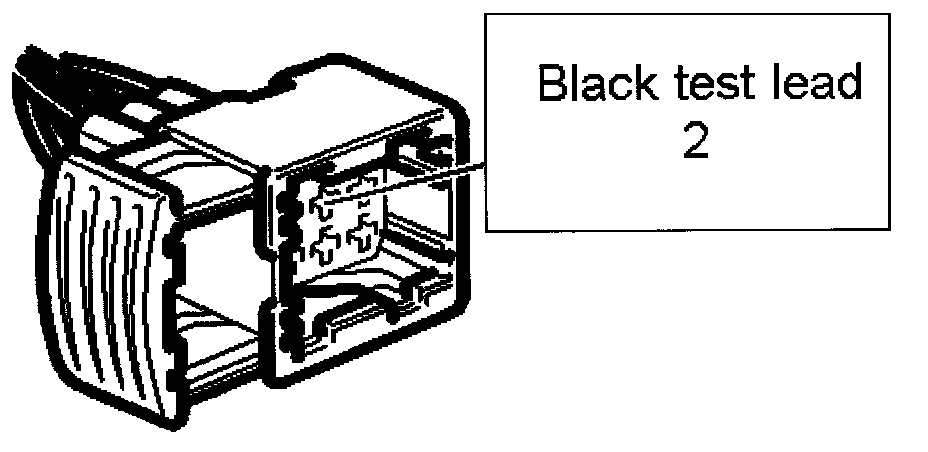

^ 2 - Central locking motor, rear right

The reading should be 0 Ohm - 1 Ohm

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO ^ Continuity Check - II

YES ^ Continue with Continuity Check

















Take a resistance reading between

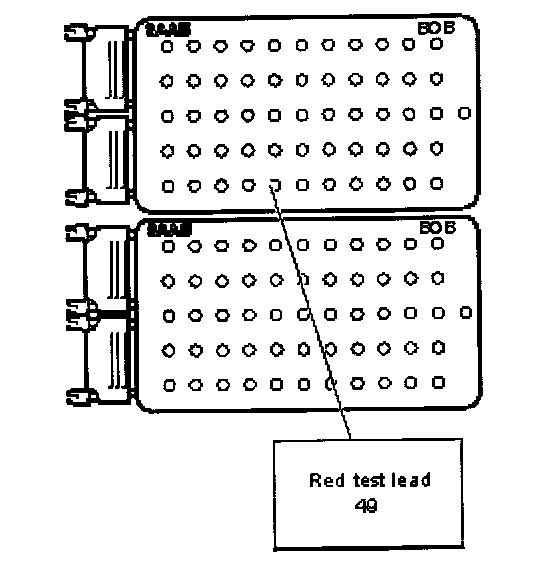

^ 49 - Breakout box

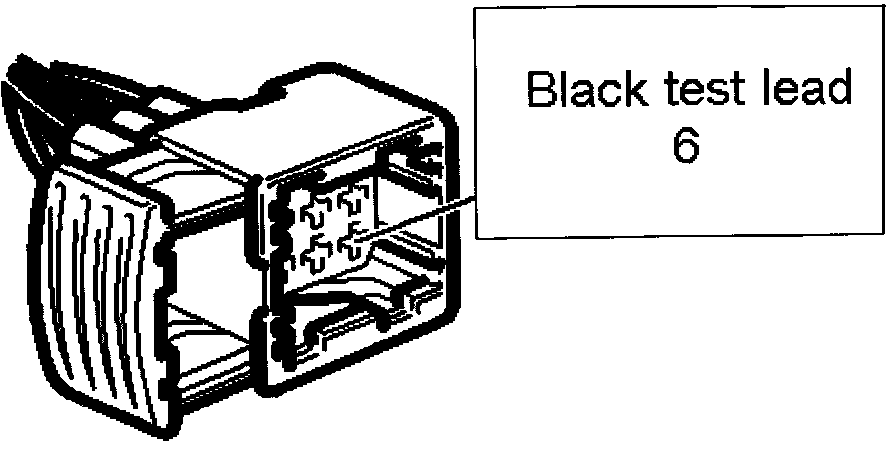

^ 6 - Central locking motor, rear right

The reading should be 0 Ohm- 1 Ohm

Checking the wiring harness.
Jiggle the leads and in-line connectors at several places and in different directions to reveal intermittent breaks and short circuits in the wiring harness. Observe the multimeter, test lamp or diagnostic tool while doing this.

Is the function correct?

NO ^ Continuity Check - II

YES ^ Check the Control Module
