Checking the I-Bus

- Turn the ignition switch to the ON position.

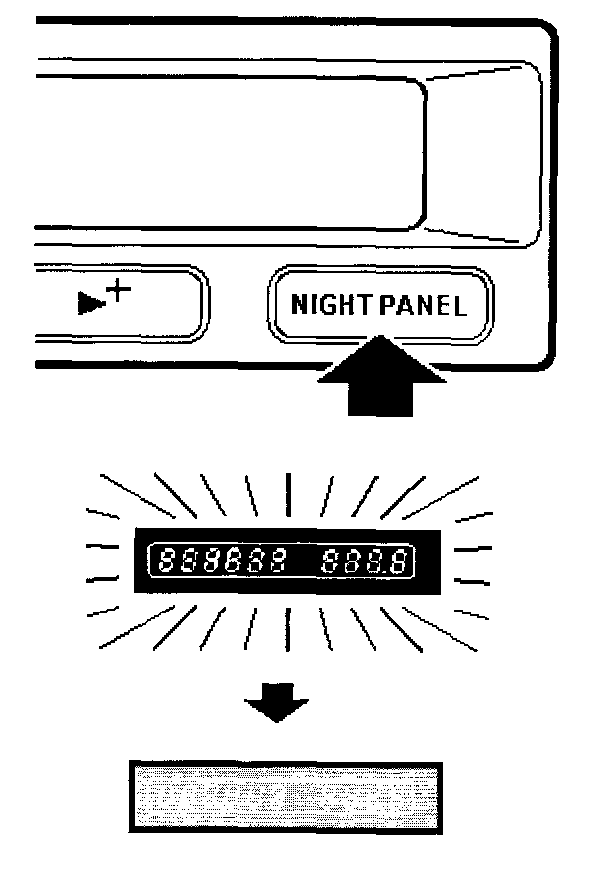

- Press NIGHT PANEL on the SID.

Checking the I-Bus

- The main instrument unit's odometer display should go out.

Is the function correct?

NO - Diagnostic Procedure For the Bus Wiring Harness

YES - Diagnostic Procedure For the DICE Bus Wiring Harness
