Conditions

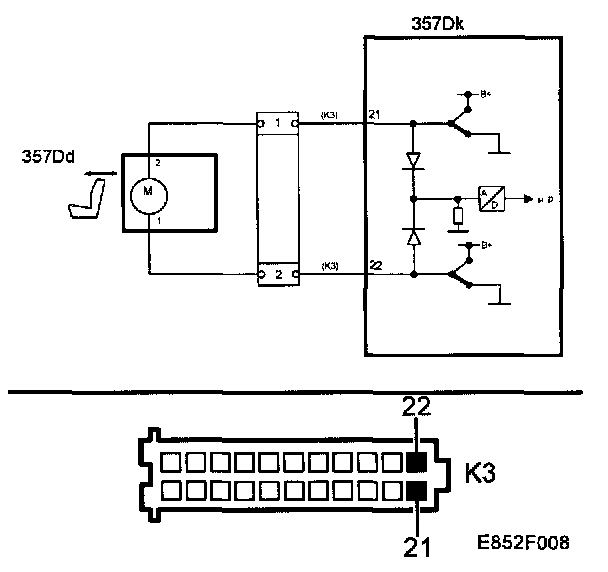

Backrest Motor. Open Circuit

Backrest Motor. Short to Ground.





Fault symptoms
The motor for the backrest adjustment cannot be operated either manually or via the memory settings.

Conditions
The voltage at the output of the relay that supplies the power to B+ is less than 6.9V.
