Brief Description

Brief Description

The turbocharger in the Saab 9-5 belongs to a new family of turbo Systems - Garett 17 (GT 17).

As distinct from a conventional normally aspirated engine, the supercharged engine fills the cylinders with a greater mass of air during the intake stroke, which means more efficient combustion, more power and higher torque. Engine performance is therefore comparable to that of a larger engine, but retains the advantages of a smaller engine as regards fuel economy, size, weight, etc.

Supercharging

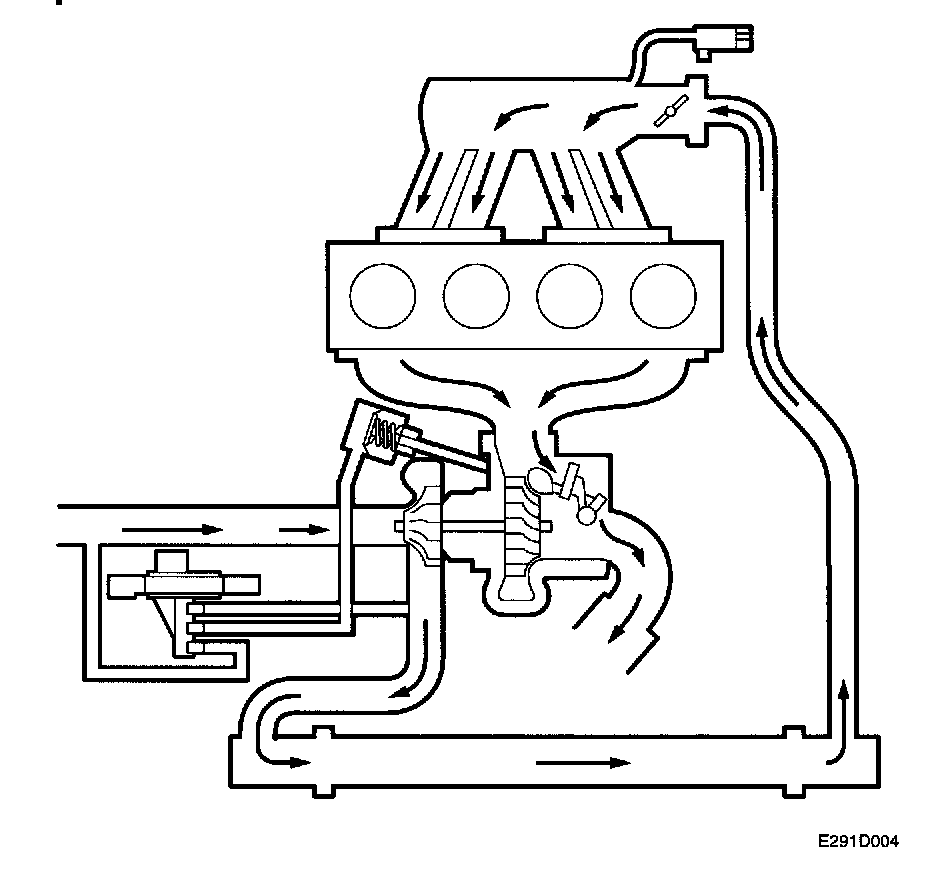

Supercharging is accomplished by means of a turbocharger. The exhaust gases from the engine pass through a turbine rotor driven by the exhaust gases. The turbine rotor is mounted on the same shaft as a compressor wheel and rotates at the same speed. The compressor wheel is located in the intake system and creates a higher pressure, which leads to better filling of the combustion chamber. The turbocharger is so designed that it begins to work even at low engine speeds and therefore produces high torque in the rpm ranges used under normal driving conditions.
