G7, 4 Cyl.

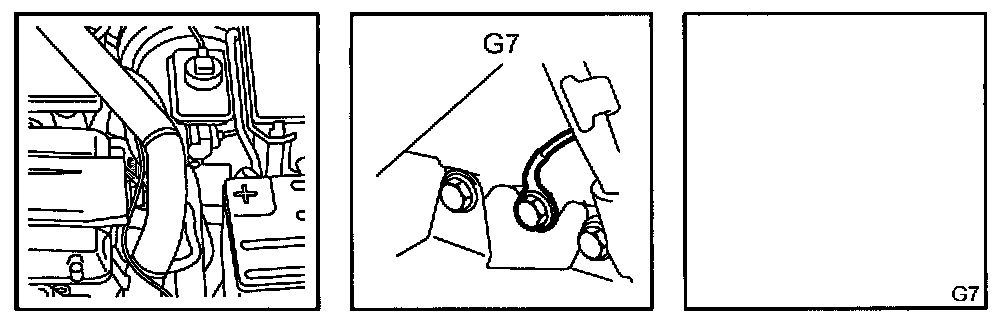

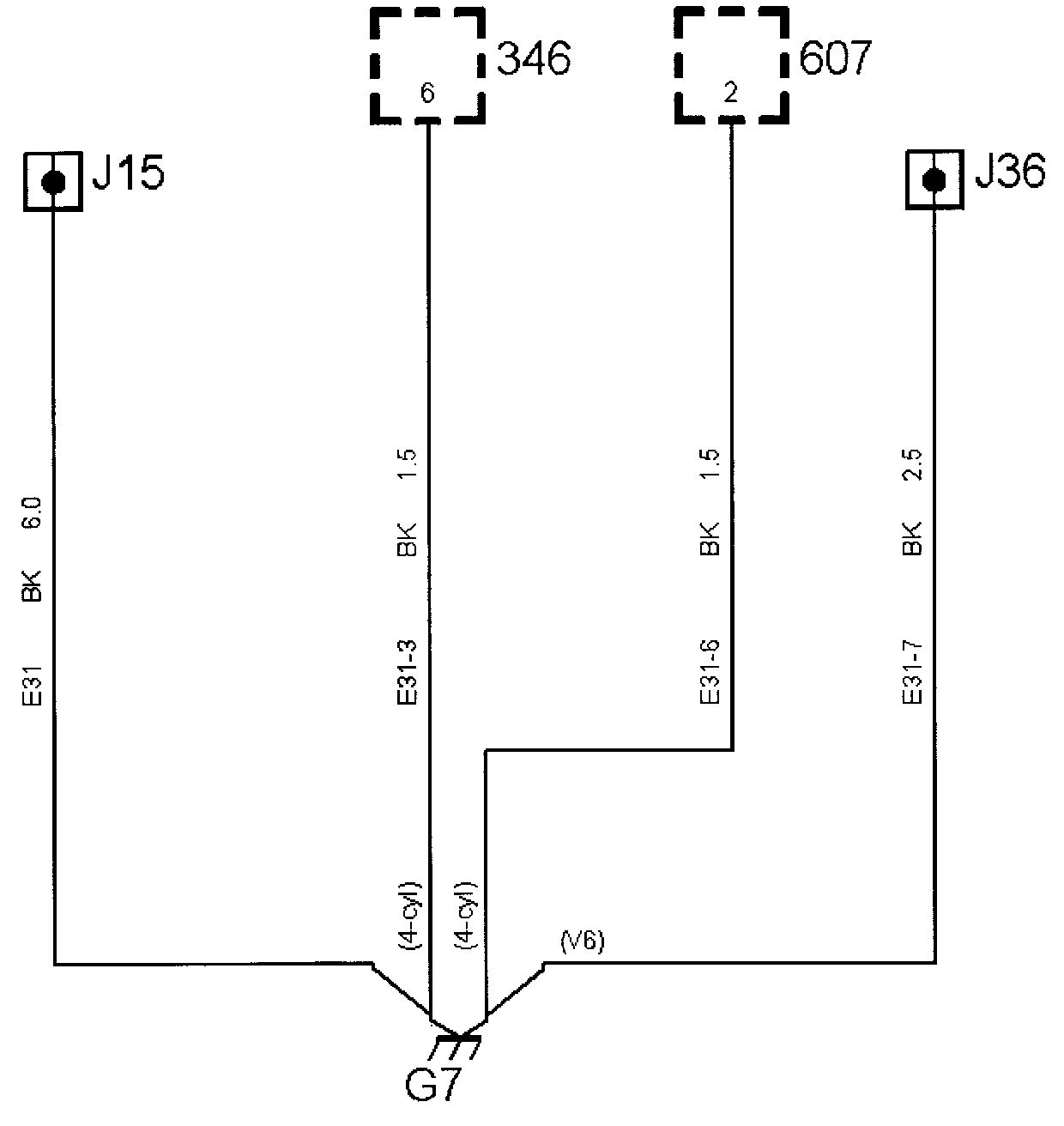

Location: On the side of the intake manifold to cylinder 4, Connected components:


346 Ignition discharge module
607 Solenoid, limp-home

Via crimp J15 See Splices.
205 Mass airflow sensor
430 Trionic engine control module, 4 cyl.
589 Trionic engine control module, 4 cyl. OBDII
