Cup Holder For Rear Seat Passengers

Cup Holder For Rear Seat Passengers

To remove





NOTE: Removal will be easier if done by 2 persons.

1. Lower the rear seat armrest and press the cup holder halfway out.

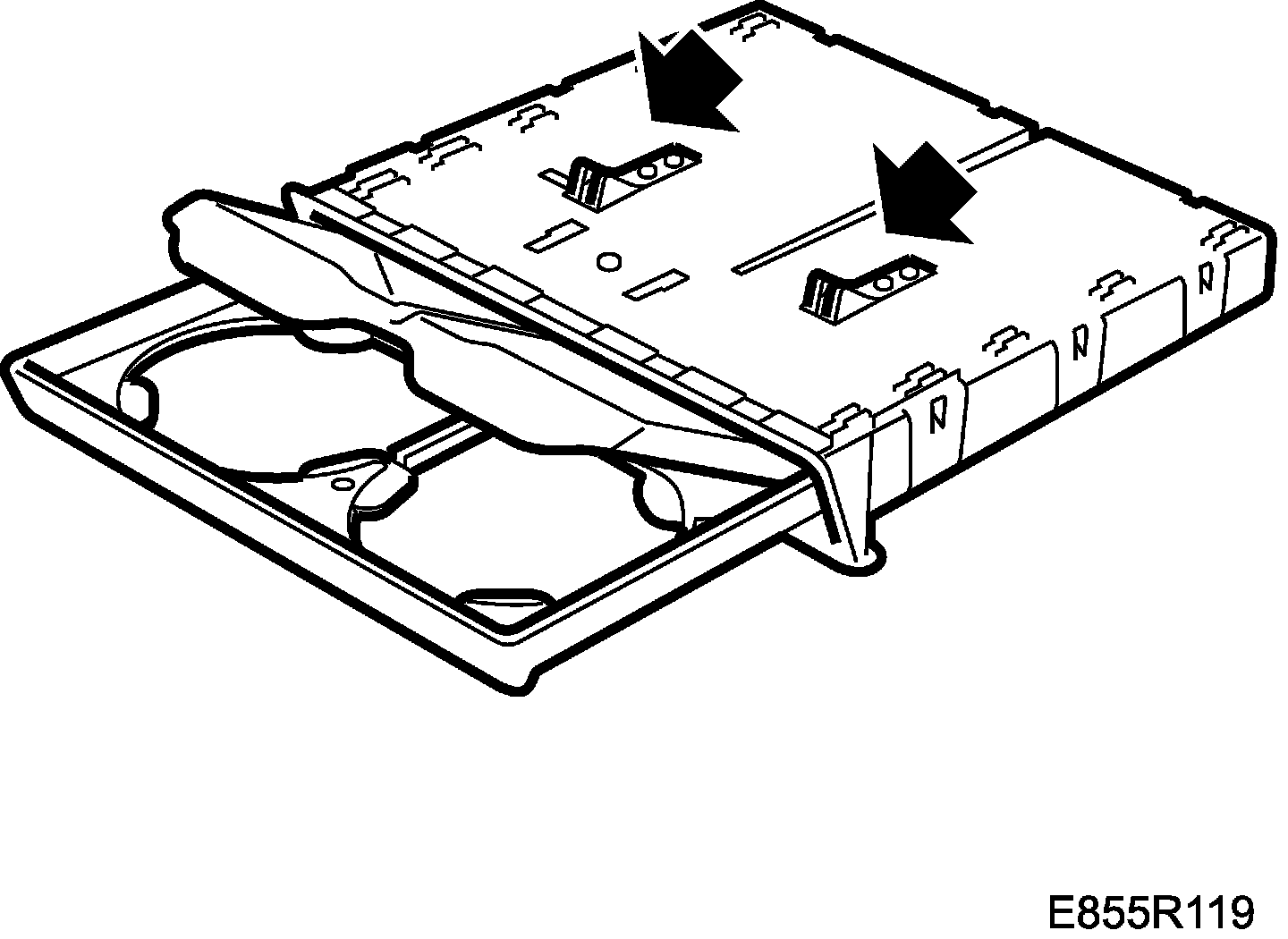

2. Use screwdrivers to bend aside the two locking tongues while pulling the cup holder out of the armrest.








1. Press the cup holder in place, making sure that the locking tongues engage.
2. Raise the armrest.
