5D (Wagon)

Check box C1 of the campaign plate before preceding. Continue as follows if the box has not been marked.

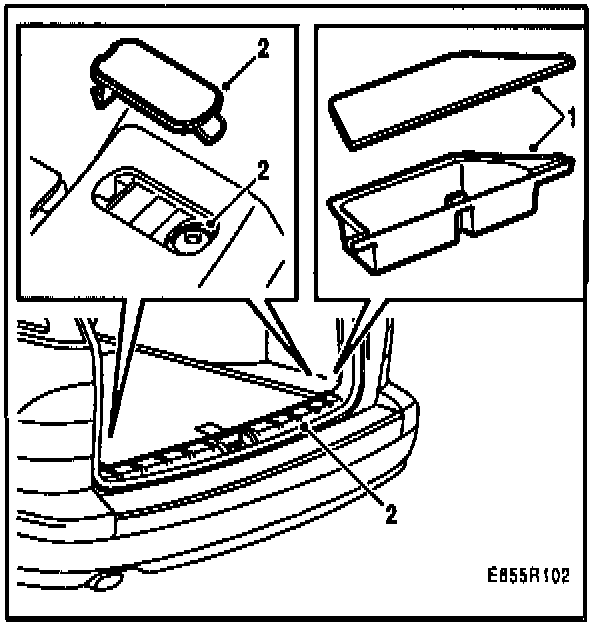

1. Open the tailgate, remove the cover from the storage - compartment and remove the storage box.





2. Remove the scuff plate (2 covers, screws and clips).

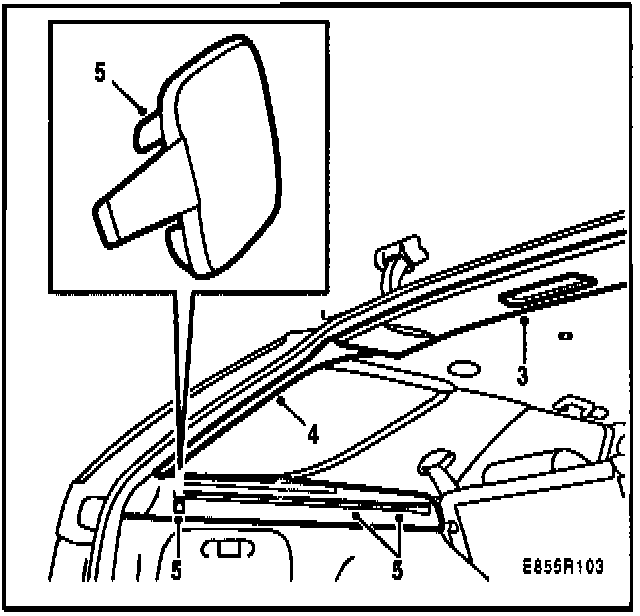

3. Detach the rear roof molding at the edges so that clearance for the D-pillar trim is obtained.

4. Remove the D-pillar trim (secured with clips).

5. Remove the parcel shelf support (1 cover and 3 screws).

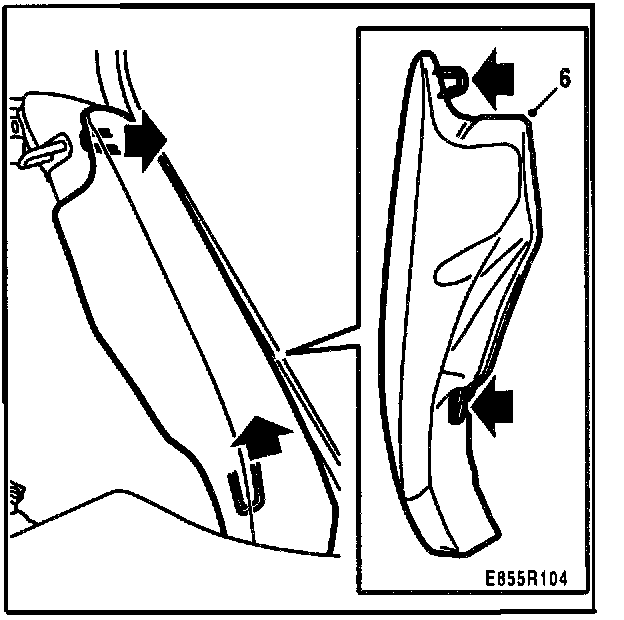

6. Remove the side bolster by pulling the upper edge of the bolster to release the lug. Then unhook the lower edge.

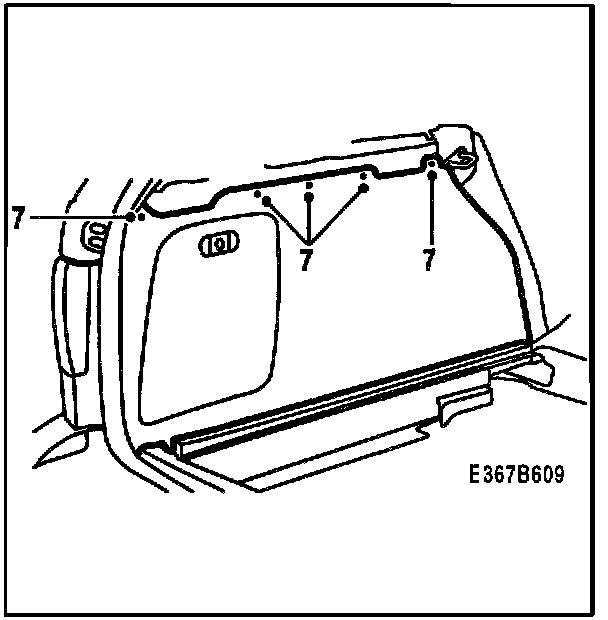

7. Remove the 5 screws securing the top edge of the side trim.

8. Lift out the side trim.

9. Cut the cable tie closest to the connector.

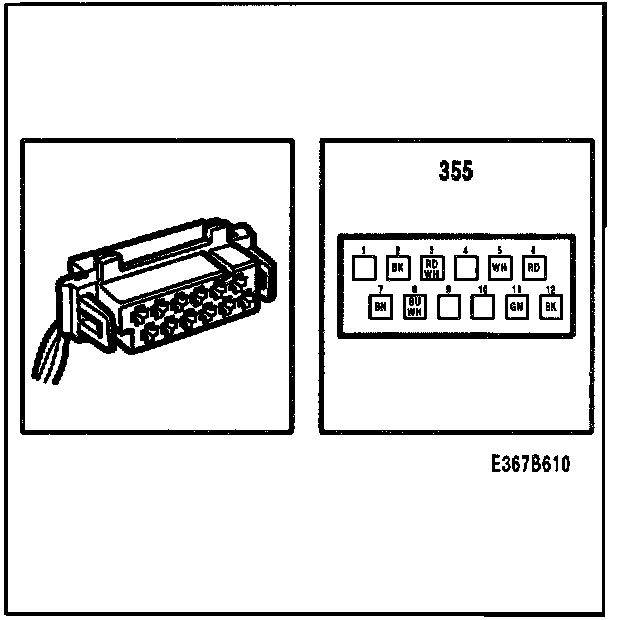

10. Check the connector for the CD changer and apply anti-corrosion protection (Kontakt 61). If the sleeves are green and oxidized, proceed as follows:

a. Remove the negative battery cable.

b. Unplug the connector and press out the sleeves.

c. Wipe out the connector and apply anti-corrosion protection (Kontakt 61).





d. Press in the sleeves as illustrated and plug the connector together.

11. Bend the connector upward as high as possible against the side panel of the wheel housing, and secure it to the regular wiring harness with a cable tie.

12. Lift in the side trim.

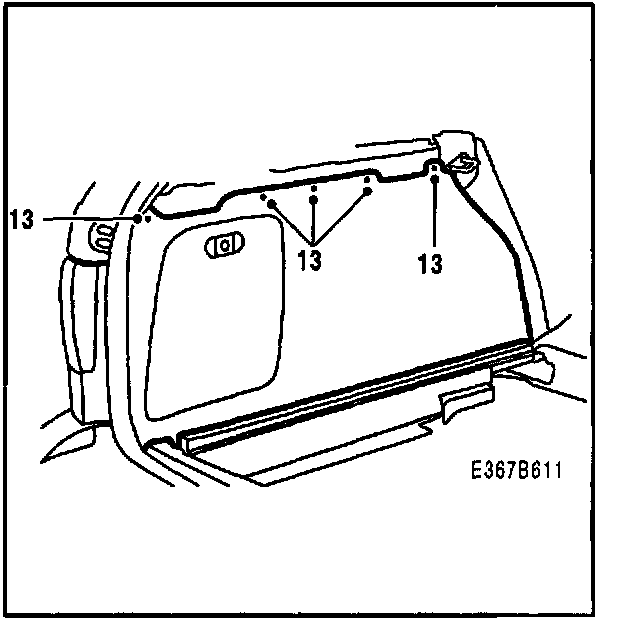

13. Fit the screws securing the top edge of the side trim. Start with the rearmost screw so that the trim is properly aligned.

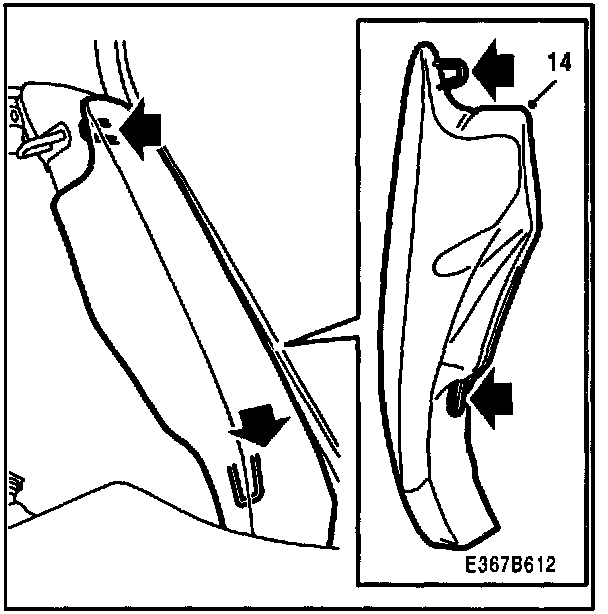

14. Fit the side bolster by first hooking in the lower edge and then securing the lug.

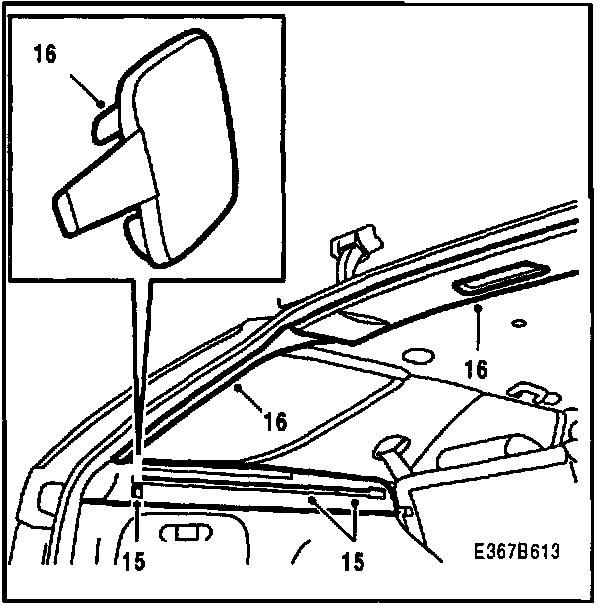

15. Fit the parcel shelf support (3 screws and 1 cover).

16. Fit the D-pillar trim, secured with clips. Press the rear roof molding into place.

Adjust the seal above the D-pillar trim and edges of the roof molding.

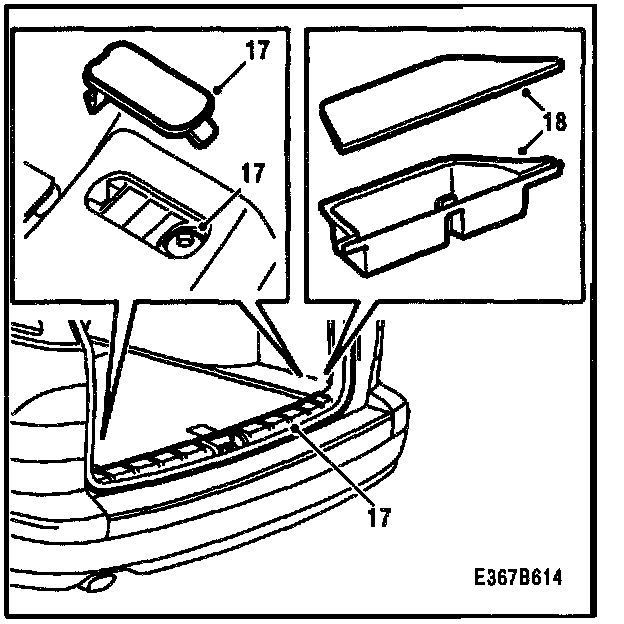

17. Fit the scuff plate (clips, 2 covers and screws). Adjust the position of the seal over the scuff plate.

18. Put back the storage box and fit the cover. Close the tailgate.

19. Connect the negative battery cable, adjust the time and date on the SID.

Stamping the campaign plate

After the car has been inspected and corrected, mark the campaign plate in box C1, using a numeral "8" (Saab Special Tool P/N 02 97 713). If needed, order this special tool directly from Kent-Moore at 1-800-345-2233.

Warranty/Time Information

See separate information, Alternative B.
