G5

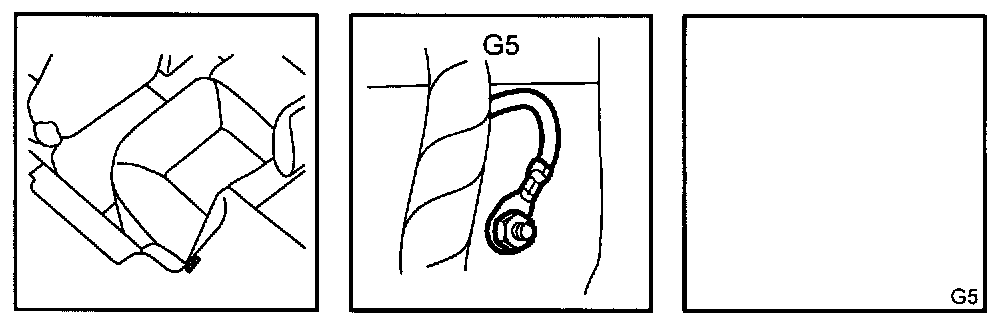

Location: Under the rear seat in the left-hand corner.

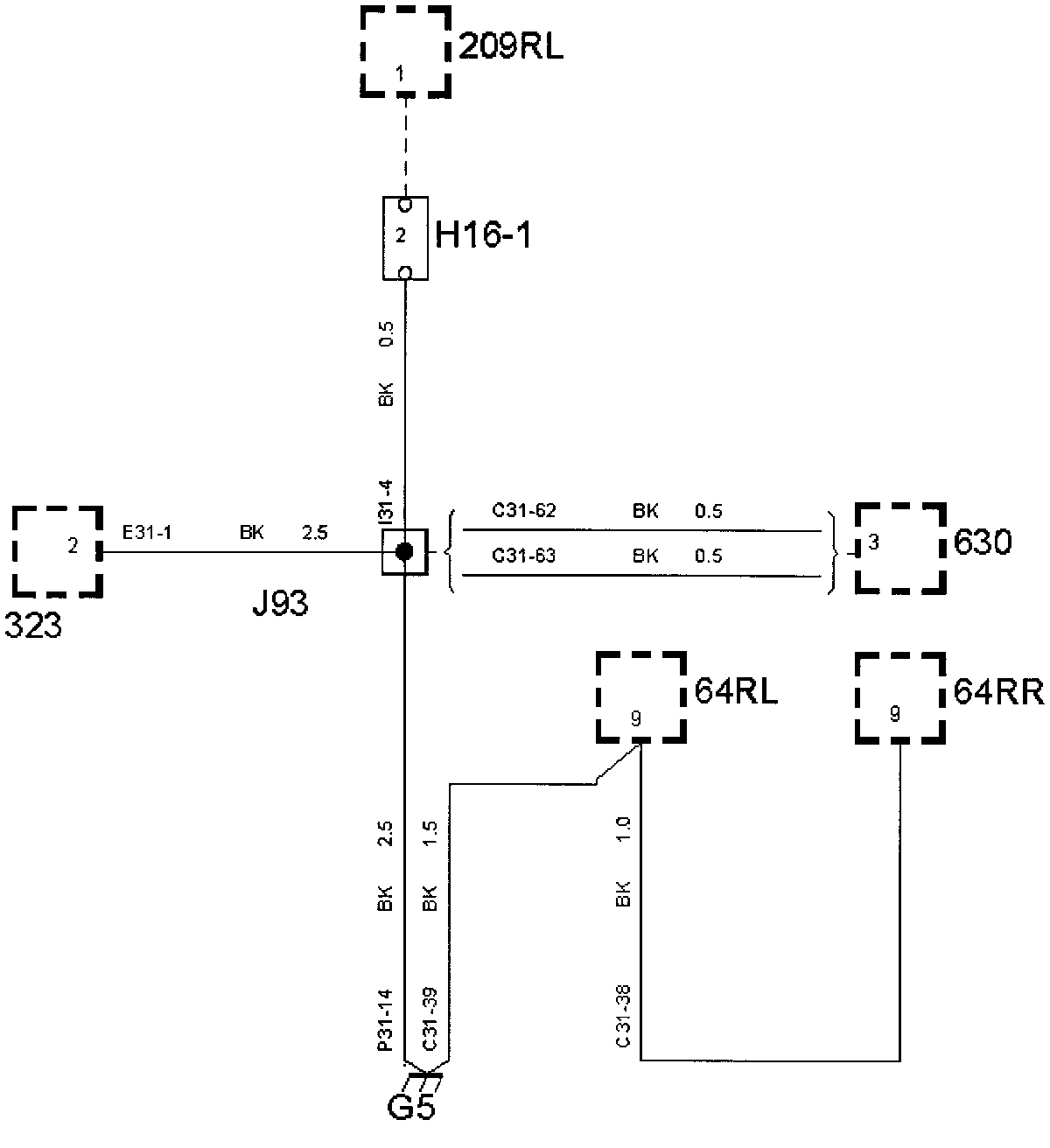

Connected components:
64RL Heating pad, cushion, rear seat, left
64RR Heating pad, cushion, rear seat, right

Via crimp J93 See Splices.
209RL Lamp, footwell lighting, rear, left
323 Motor, fuel pump
630 SPA control module
