G45 (5D Only)

Location: In roof above LH D-pillar.

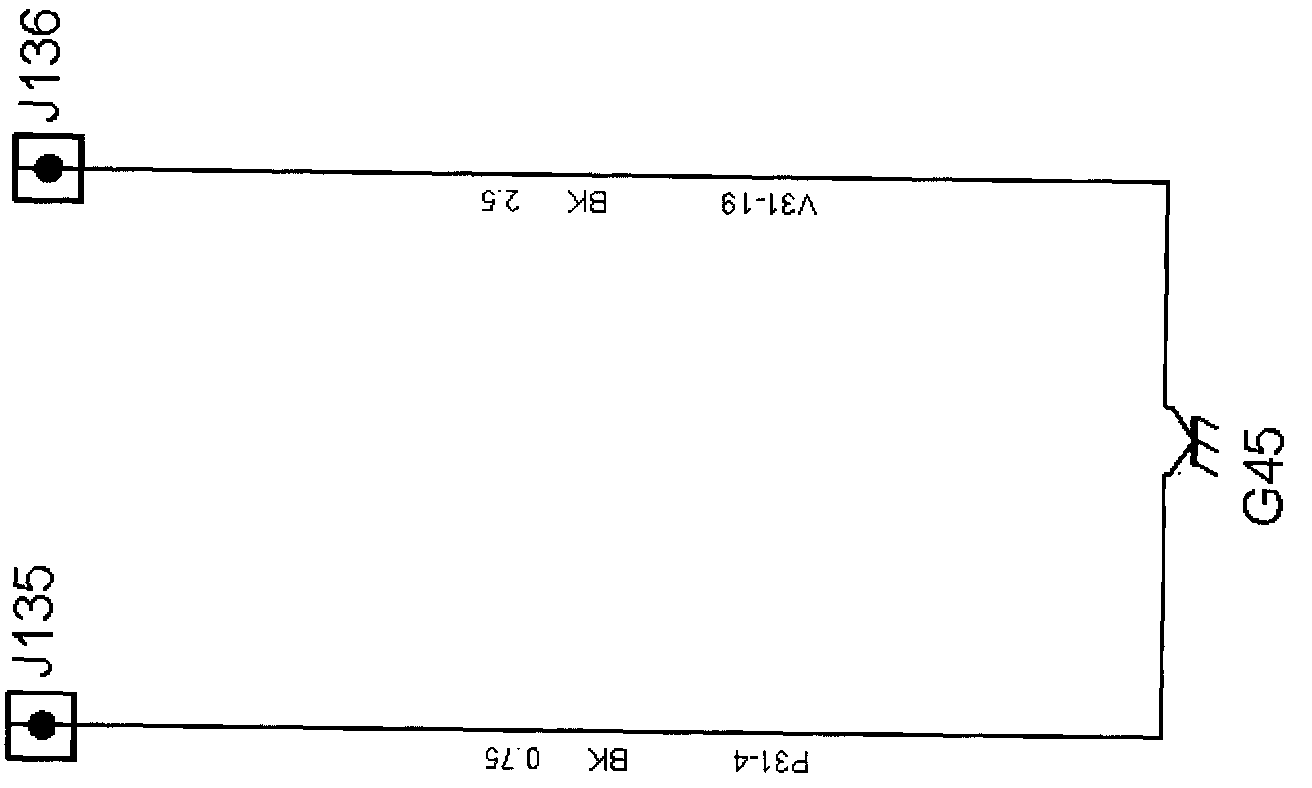

Connected components:

Via crimp J135 See Splices.
30RC Lamp, raised brake lights
32HL Lamp, reversing light, left
32HR Lamp, reversing light, right
33HL Lamp, rear fog light, left
33HR Lamp, rear fog light, right
62R Motor, rear window wiper

Via crimp J136 See Splices.
15 Lamp, number plate lighting
56 Switch, luggage compartment illumination
209HL Lamp, courtesy lighting, tailgate LH
209HR Lamp, courtesy lighting, tailgate RH
622 Microswitch, tailgate lock
624RR Antenna amplifier, radio, RH
