G42

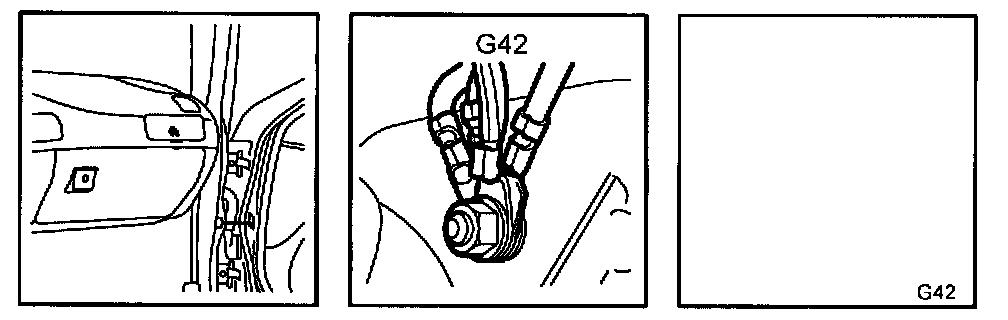

Location: On the right-hand side of the knee member.

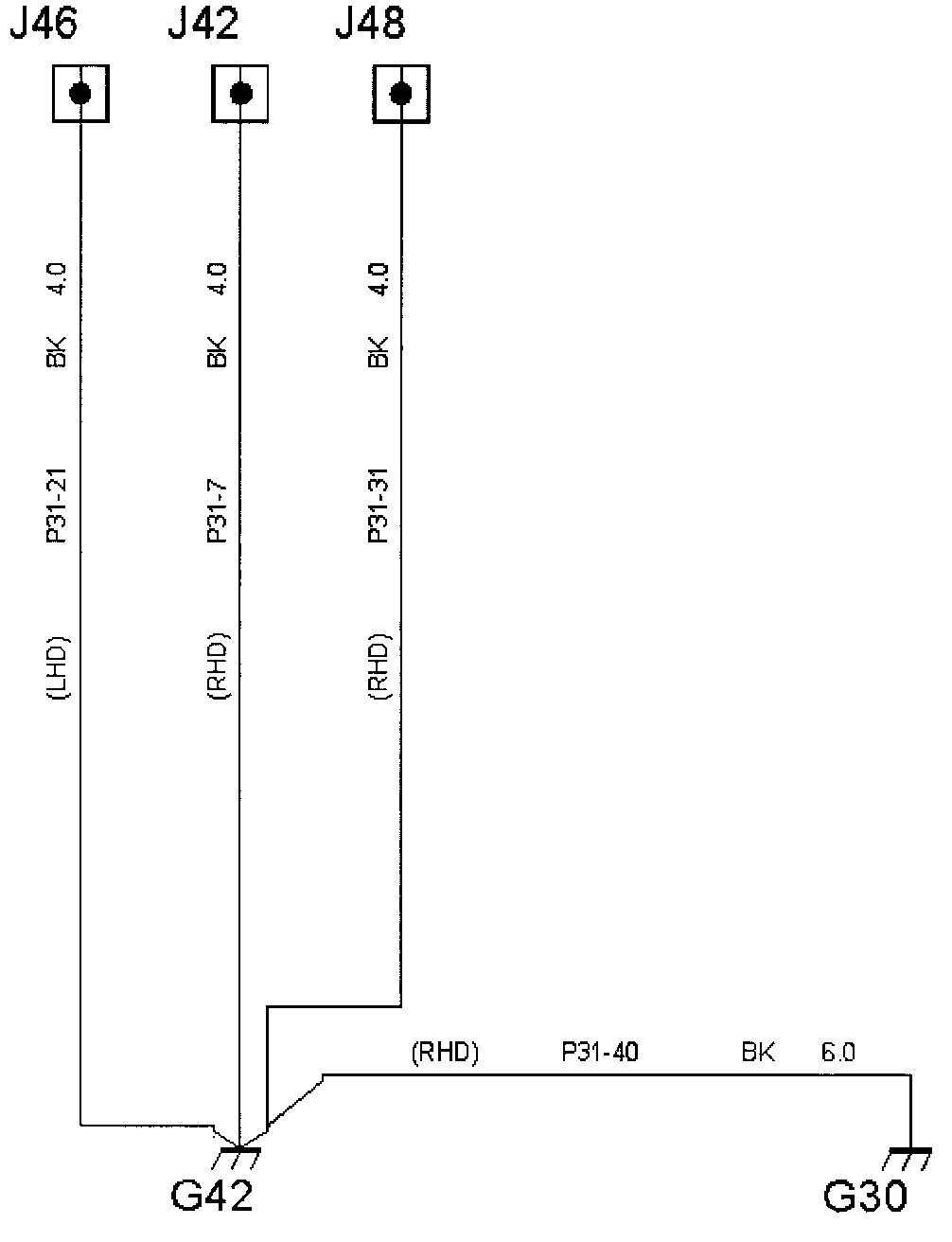

A. Connected components in LHD car

Via crimp J46 See Splices.
19 Lamp, glove compartment lighting
353 Main unit, audio system
354 Amplifier, audio system
359RH Lamp, lighting, vanity mirror, right
613FL Lamp, floor lighting, front, left
613FR Lamp, floor lighting, front, right
637 ADM control module

B. Connected components in RHD car

G30 Grounding point in the engine bay on the side section in front of the left-hand wheel housing

Via crimp J42 See Splices.
10 Switch, lamp
21 Relay, ignition switch
42 Level switch, brake fluid
242 Level switch, coolant
628 Control module, DICE

Via crimp J48 See Splices.
62F Motor, windscreen wipers
88 Switch, fog lights
276 Bonnet switch, anti-theft alarm
282 Switch, headlamp beam adjustment
405 Relay, reversing lights, automatic transmission
453 Motor, pump, engine coolant circulation
461 Connection, electronic road tolls
