G41S














Location: On the left-hand ground screw in the middle of the knee member (in the interior).

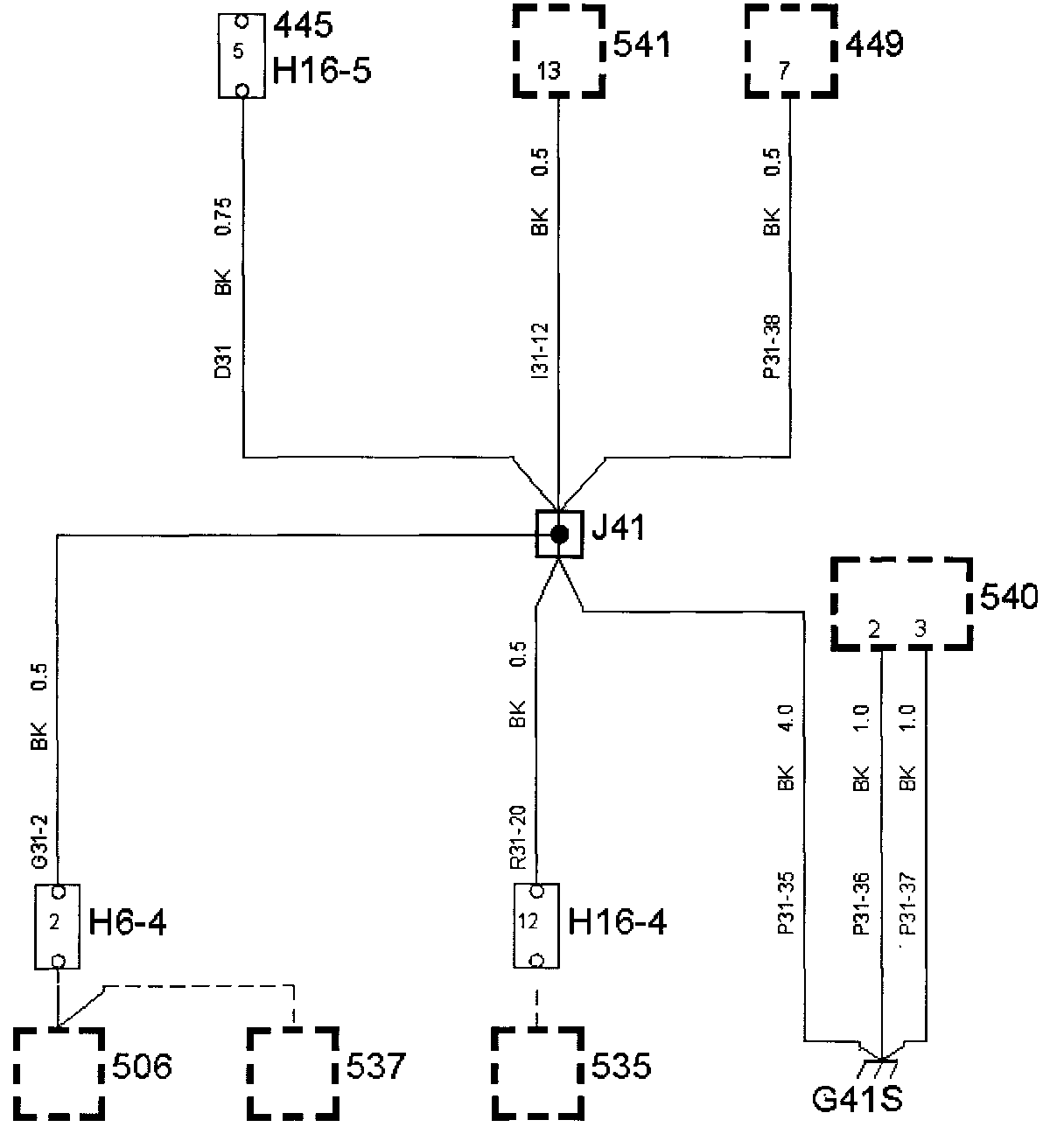

Connected components:
540 Main instrument display panel

Via crimp J41 See Splices.
445 Data link connector, 16-pin, CARB
449 Switch, TCS
506 Switch, WINTER
535 Transmission fluid temperature sensor
537 Switch, SPORT
541 SID
