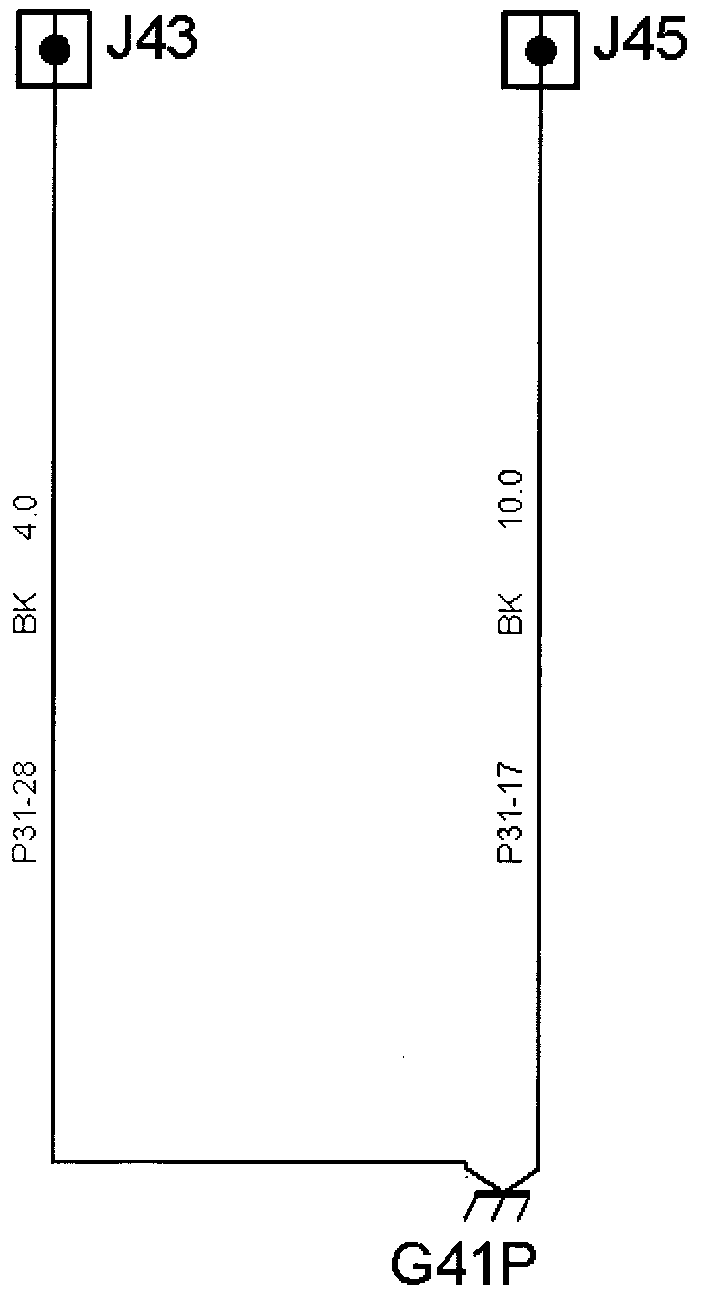

G41P

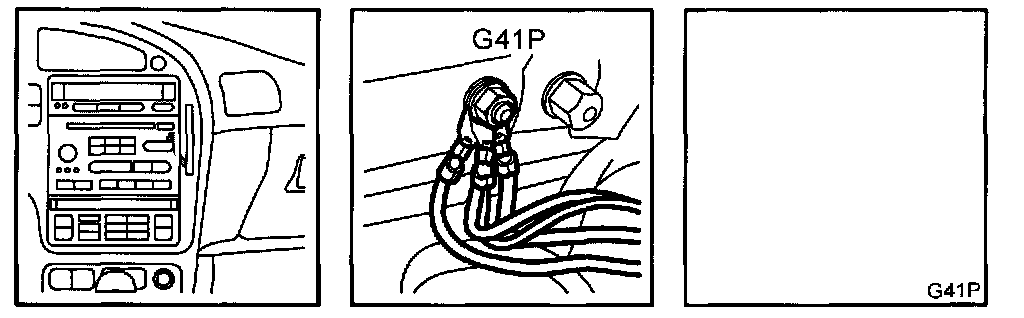

Location: On the center ground screw in the middle of the knee member (in the interior).

Connected components:

Via crimp J43 See Splices.
25 Switch, hazard warning flashers
61 Switch, windscreen wipers
61 a Switch, rear window wiper
91 Lamp, lighting, selector lever position indicator
252R Switch, electrically heated rear seat
375 Connection, mobile phone
439 Solenoid, selector lever, SHIFT LOCK
445 Data link connector, 16-pin, CARB
615LH Switch, seat ventilation, left-hand seat
615RH Switch, seat ventilation, right-hand seat

Via crimp J45 See Splices.
48F Cigarette lighter, front
48R Cigarette lighter, rear (LHD)
148F Lamp, lighting, ashtray/cigarette lighter, front
148R Lamp, lighting, cigarette lighter, rear (LHD)
216 Control module, ACC
220 Fan control module
504 Control panel, heating and ventilation
