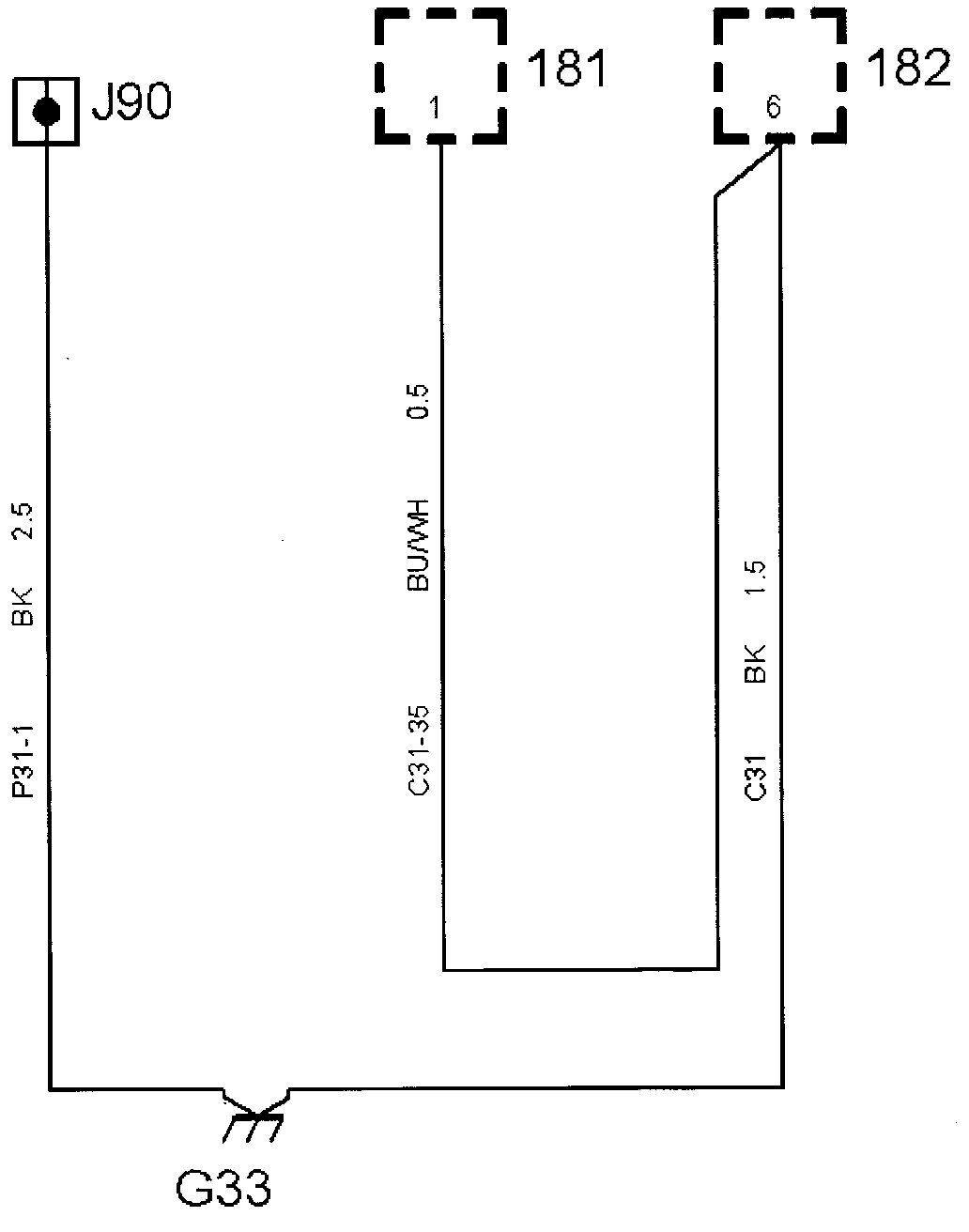

G33

Location: Under the left-hand A-pillar.


A. Permanently connected components

181 Switch, electrically operated sunroof
182 Motor, electrically operated sunroof

Via crimp J90 See Splices.
30RC Lamp, raised brake lights
50C Lamp, roof lighting, center
50F Lamp, root lighting, front
89LH Lamp, side direction indicator, left
225FC Lamp, spotlight, front, center
359LH Lamp, lighting, vanity mirror, left

B. Additional components for left-hand-drive cars

Via crimp J130 See Splices, which is connected to crimp J90
124 Switch, rear-view mirrors
184D Motor, central locking system, driver's side
207D Heater, rear-view mirror, driver's door
209D Lamp, footwell lighting, driver's door
388 Switch, tailgate
623 Switch, filler cap lock

C. Additional components for right-hand-drive cars

Via crimp J131 See Splices, which is connected to crimp J90
207P Heater, rear-view mirror, passenger door
209P Lamp, footwell lighting, passenger door
