G31

Location: On the right-hand structural member behind the headlamp

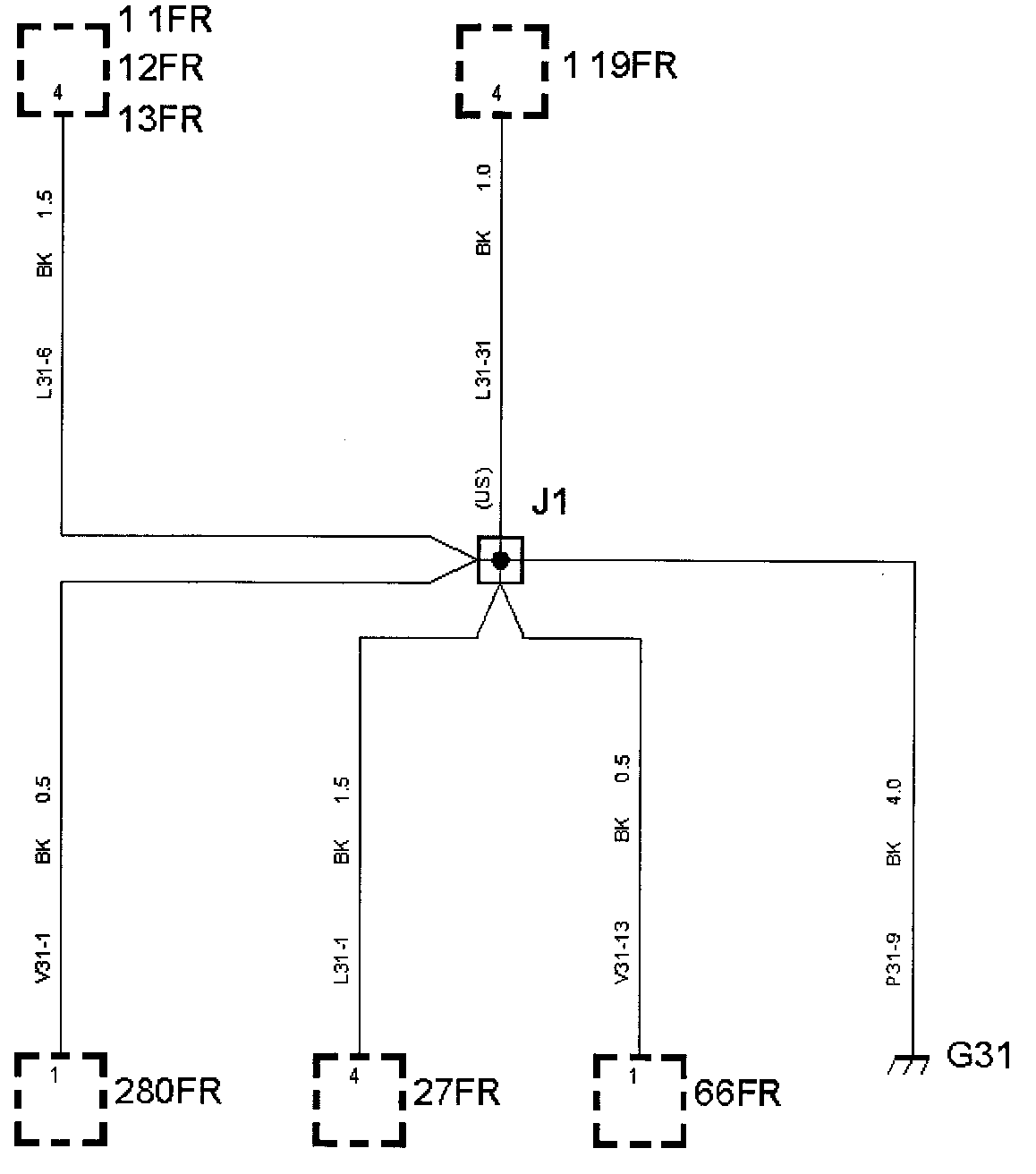

Connected components:

Via crimp J1, See Splices.
11FR Lamp, main beam, right
12FR Lamp, dipped beam, right
13FR Lamp, parking light, front, right
27FR Lamp, direction indicator, front, right
66FR Motor, headlamp wipers, right
119FR Lamp, side reversing light, right
234FR Lamp, side marker light, RH
280FR Motor, headlamp beam adjustment, right
