G3

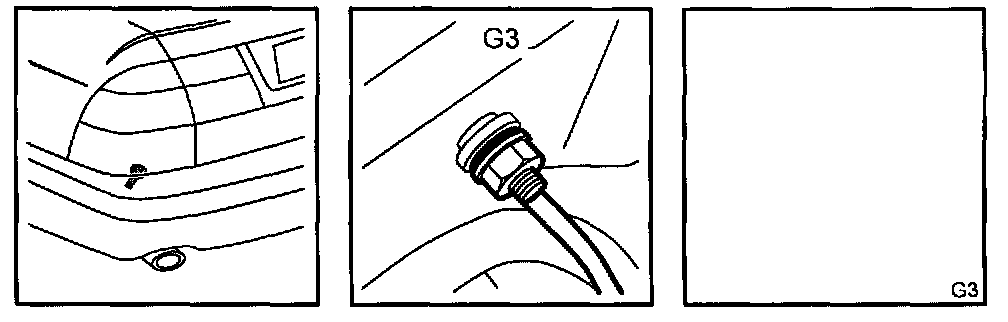

Location: In the luggage compartment under the left-hand light cluster.

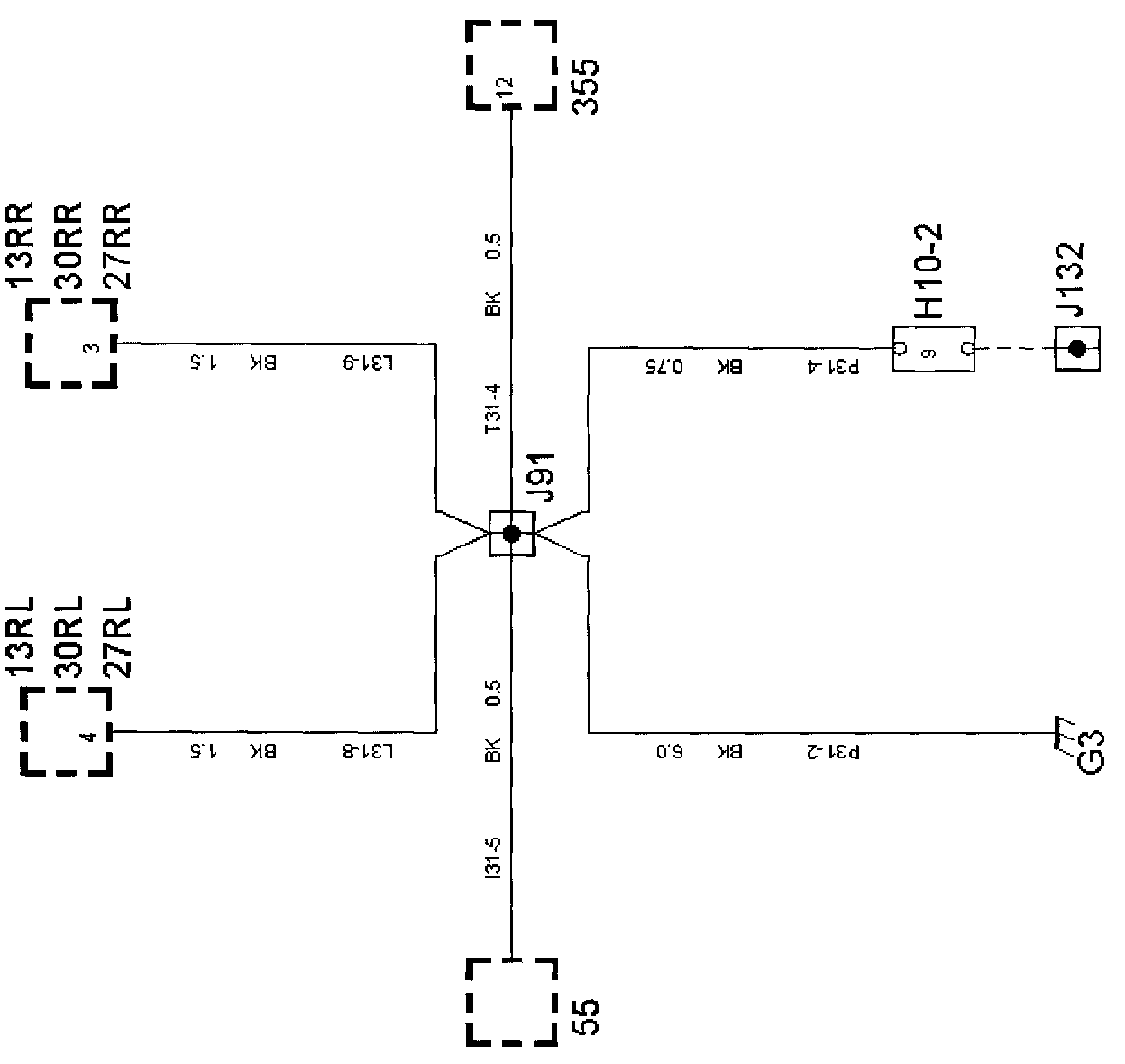

Connected components 4D:

Via crimp J91 See Splices.
13RL Lamp, parking light, rear, left
13RR Lamp, parking light, rear, right
27RL Lamp, direction indicator, rear, left
27RR Lamp, direction indicator, rear, right
30RL Lamp, brake light, rear, left
30RR Lamp, brake light, rear, right
55 Lamp, lighting, luggage compartment
355 CD changer

Via crimp J132 (boot lid See Splices, which is connected to crimp J91
15 Lamp, number plate lighting
32HL Lamp, reversing light, left
32HR Lamp, reversing light, right
33HL Lamp, rear fog light, left
33HR Lamp, rear fog light, right
56 Connector, luggage compartment illumination
622 Microswitch, tailgate lock


Connected components 5D:
Via crimp J120 See Splices.
13RL Lamp, parking light, rear, left
13RR Lamp, parking light, rear, right
27RL Lamp, direction indicator, rear, left
27RR Lamp, direction indicator, rear, right
30RL Lamp, brake light, rear, left
30RR Lamp, brake light, rear, right
355 CD changer
