G24

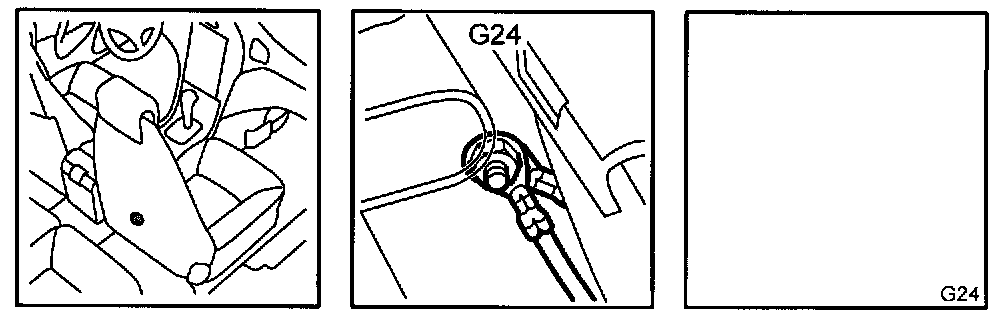

Location: On the seat member under the right-hand seat.


A. Permanently connected components

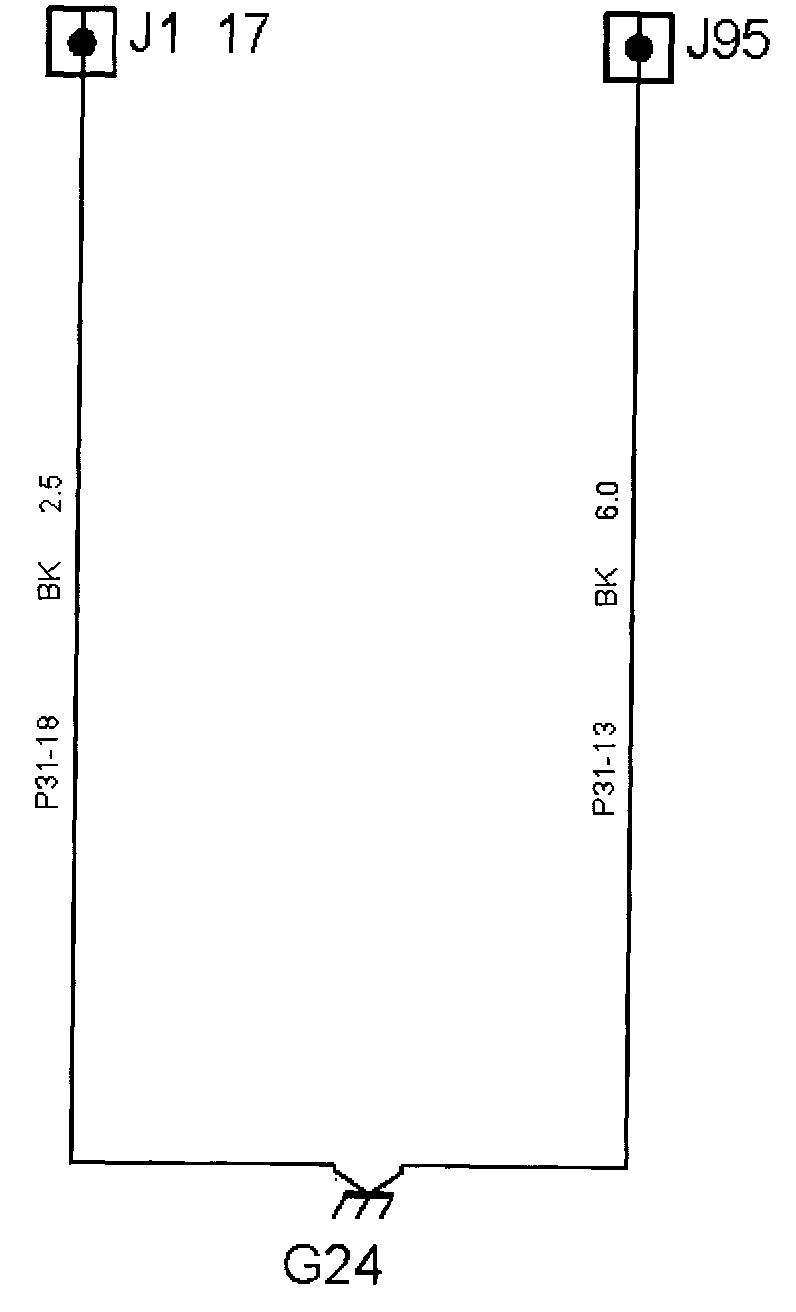

Via crimp J95 See Splices.
64FR Heating pad, right-hand seat
70 Seat-belt switch, right-hand seat
89RH Lamp, side direction indicator, right
209RR Lamp, footwell lighting, right-hand rear door
254 Temperature sensor, heating pad, right-hand seat
357D Switch, electrically adjustable driver's seat (RHD)
357Dk Control module, electrically adjustable seat with memory, driver's seat (RHD)
357P Switch, electrically adjustable seat, passenger (LHD)
386 Switch unit, electric window lifts
446D Relay, electrically adjustable driver's seat (RHD)

Via crimp J117 See Splices.
463 Aerial unit, immobilizer
514a Switch, simultaneous central locking system
611 Control module PMM
616LH Motor, fan, backrest ventilation, left-hand seat
616RH Motor, backrest ventilation fan, RH seat
617LH Motor, fan, seat ventilation, left-hand seat
617RH Motor, seat ventilation fan, RH seat

B. Connected components in LHD car

Via crimp J131 See Splices, which in turn is connected to crimp J95
207P Heater, rear-view mirror, passenger door
209P Lamp, footwell lighting, passenger door

C. Connected components in RHD car

Via crimp J130 See Splices, which in turn is connected to crimp J95
124 Switch, rear-view mirrors
184D Motor, central locking system, driver's side
207D Heater, rear-view mirror, driver's door
209D Lamp, footwell lighting, driver's door
388 Switch, boot lid/tailgate
623 Switch, filler cap lock
