G2

Grounding Point G2:

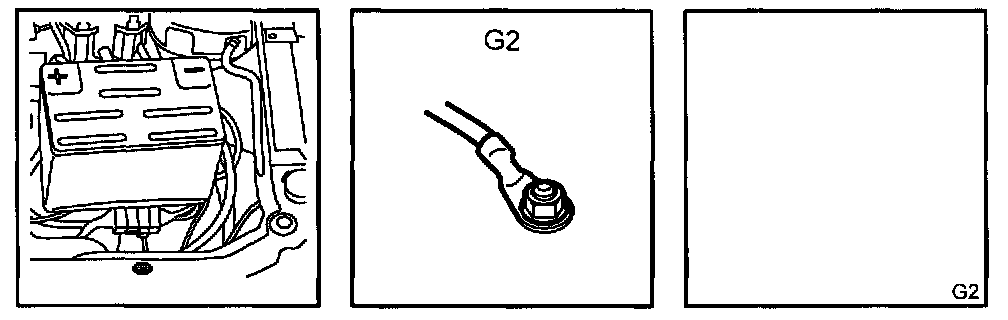

Location:On the left-hand structural member behind the headlamp (battery ground).

Connected components:

1 Battery
382 Control module, TC-ABS (signal ground) via crimp J4
547 Control module, ABS (signal ground) via crimp connection J4
