G14

Location: On the seat member under the left-hand seat.

Connected components:

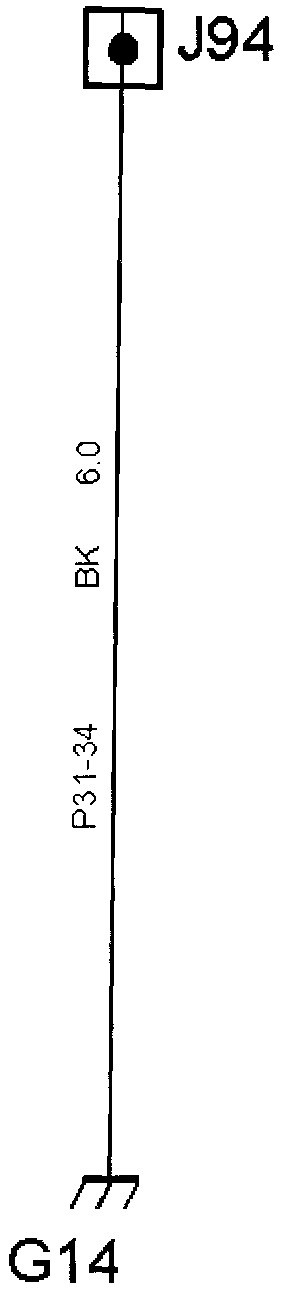

Via crimp J94 See Splices.
64FL Heating pad, left-hand seat
70 Seat-belt switch, left-hand seat
252FL Switch, heating pad, left-hand seat
252FR Switch, heating pad, right-hand seat
254 Temperature sensor, heating pad, left-hand seat
357D Switch, electrically adjustable driver's seat (LHD)
357Dk Control module, electrically adjustable seat with memory, driver's seat (LHD)
357P Switch, electrically adjustable seat, passenger (RHD)
446D Relay, electrically adjustable driver's seat (LHD)
632 Control module, TWICE
