Main Unit, Popular

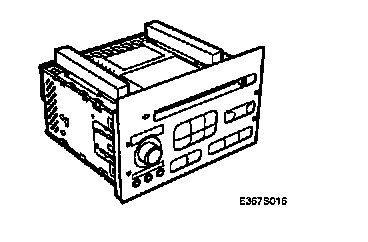

Main Unit, Popular:

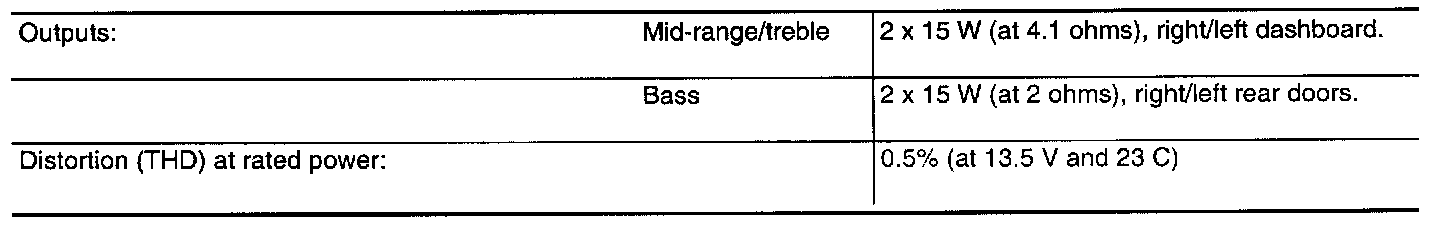

Amplifier, Internal:






Radio:






CD Player
Type: Single, 1 x CD (8 and 12 cm diam. discs).
Frequency response: 20-20,000 Hz, 0.5 dB, nom.


WARNING
The CD player in the main unit is a Class 1 laser product.
- The CD player in the main unit should be serviced and repaired by a qualified technician only.
- If the casing on the main unit is damaged, laser radiation can occur with risk of injury.
