Antenna Amplifier, System 1 (4D)

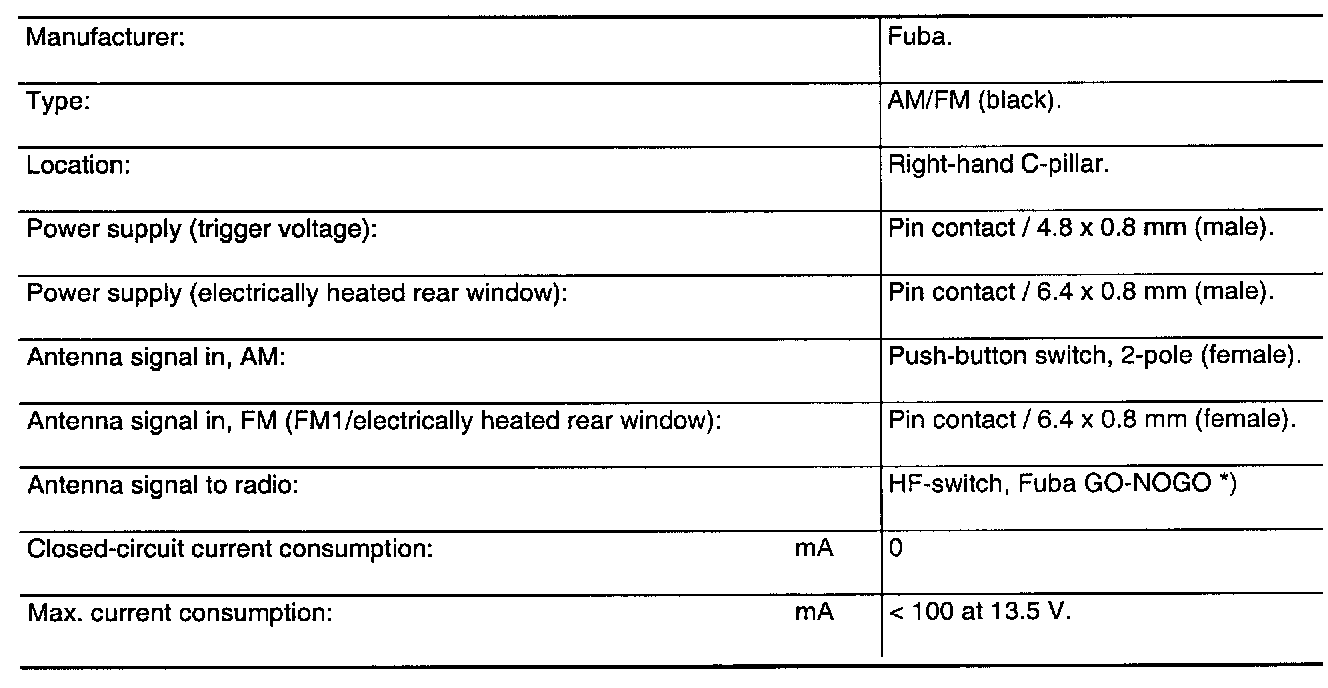

Antenna Amplifier, System 1 (4D):











WARNING
Exercise care when undoing the high frequency connector, Fuba GO-NOGO. Disconnection must be performed correctly so as not to damage the connector. See Antenna amplifier (4D) under Service and Repair
