Power Seat Motor Position Sensor: Service and Repair

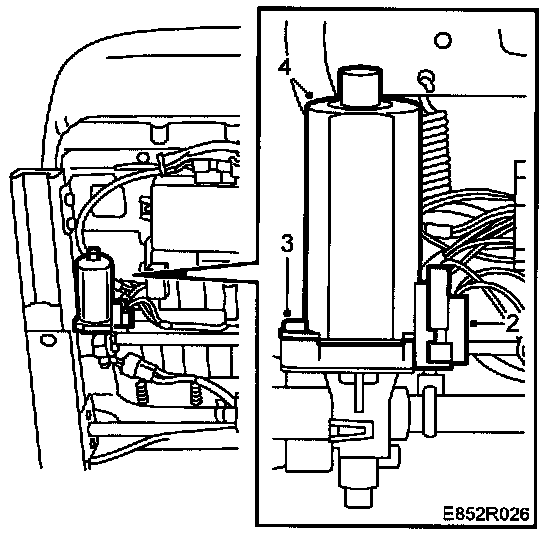

Motor and sensor, legroom adjustment

To remove







1 Remove the front seat from the car.
2 Unplug the connector for the legroom adjustment motor.
3 Remove the legroom adjustment motor, 2 screws.
4 Lift the motor off the gear wheel.

To fit
Fit in reverse order.

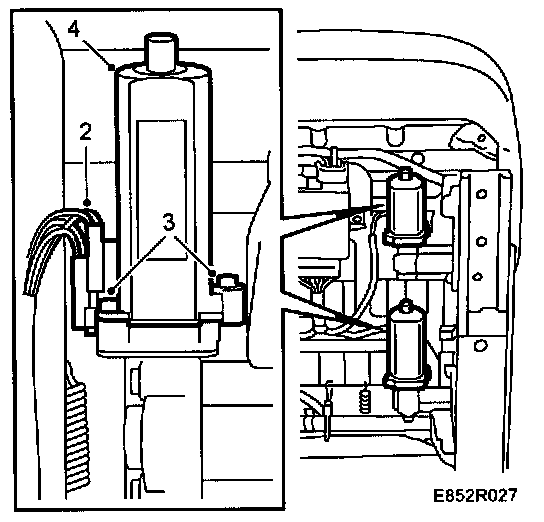

Motor and sensor, front and rear height adjustment

To remove







1 Remove the front seat from the car.
2 Unplug the connector for the height adjustment motor.
3 Unscrew the motor, 2 screws.
4 Lift the motor off the gear wheel.

To fit
Fit in reverse order.

Motor and sensor, backrest adjustment

To remove







1 Take the front seat out of the car.
2 Undo the straps holding the backrest upholstery at the bottom.
Undo the cables and cable ties. Extract the cables from the hole.
3 Release the upholstery strips on the underside.
4 Pull out the sheet from the backrest upholstery.

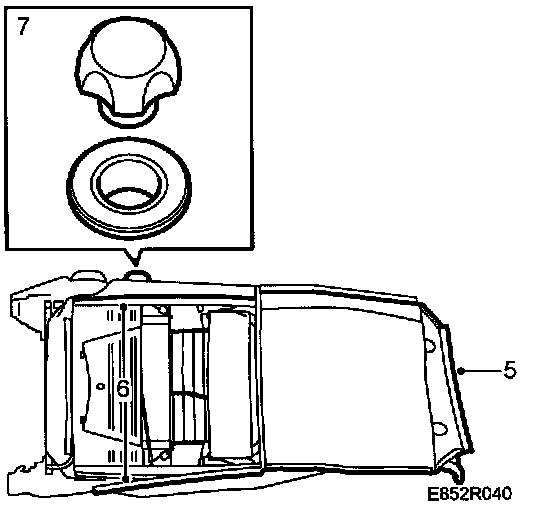

5 Undo the rear of the backrest upholstery by releasing the upholstery strips along the sides and folding back the upholstery.







6 Release the upholstery strips along one side at the rear of the backrest frame.
7 Remove the knob for the lumbar support adjustment.
8 Detach the upholstery hooks in the underside of the backrest
9 Fold aside the upholstery and cushion at the side of the backrest.

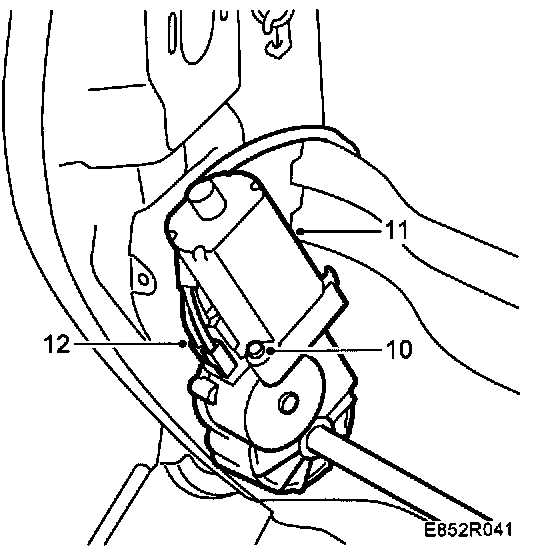

10 Unscrew the motor for the backrest adjustment, 2 screws.







11 Lift the motor off the gear wheel.
12 Unplug the connector for the backrest adjustment motor

To fit
Fit in reverse order.
