Power Seat Motor Position Sensor: Locations

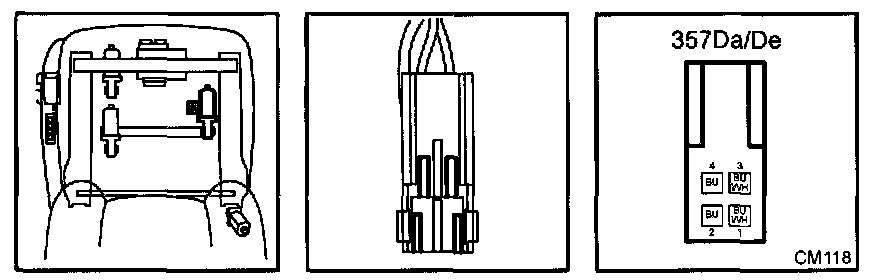

Hall Sensor, Legroom Adjustment (357De):

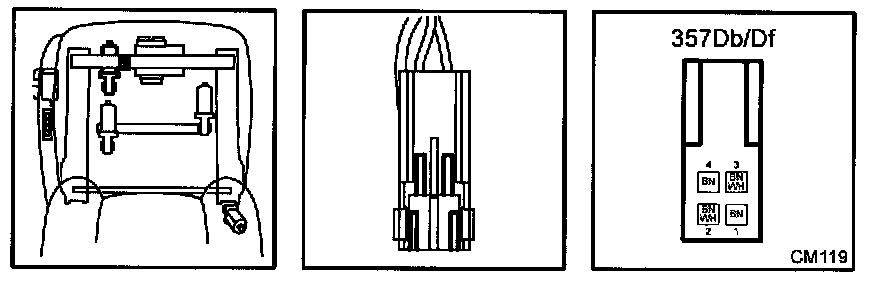

Hall Sensor, Front Height Adjustment (357Df):






Hall Sensor, Rear Height Adjustment (357Dg):

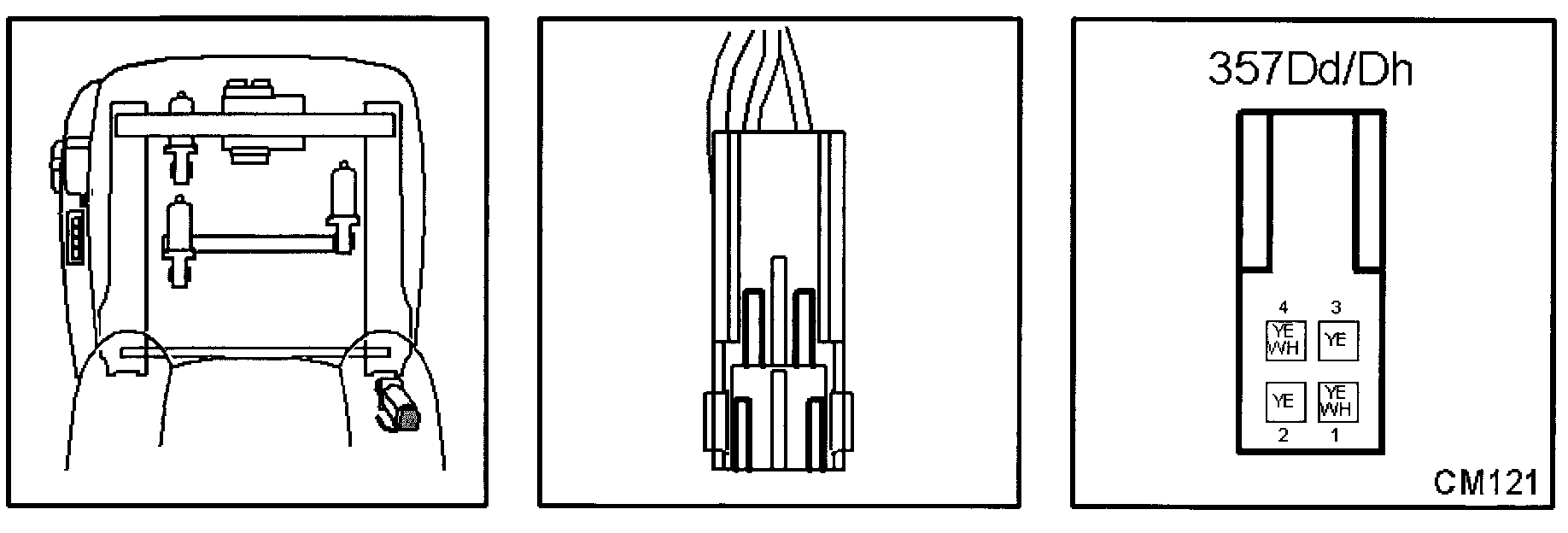

Hall Sensor, Backrest Adjustment (357Dh):
