EVAP Canister Shut-Off Valve (Vehicles Without ORVR)

To remove
1 Raise the car.





2 Remove the right-hand front wheel.

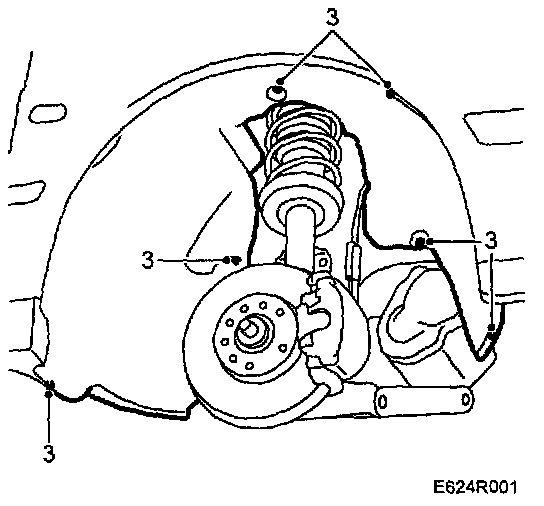

3 Remove the wing liner from the wheel housing. Press in the plastic wing and fold it down to remove

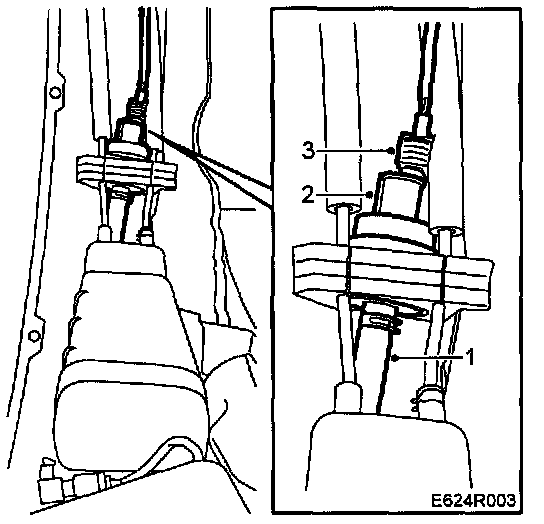

4 Lower the close valve and unplug the connector.

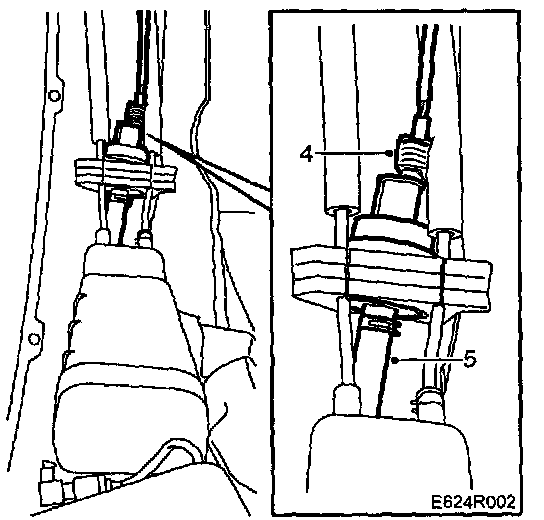

5 Remove the clip and detach the connecting hose.

To fit





1 Connect the hose to the valve.
2 Lift up the valve into position.
3 Spray the connector with Kontakt 61 (part no.30 21 763). Plug in the connector.

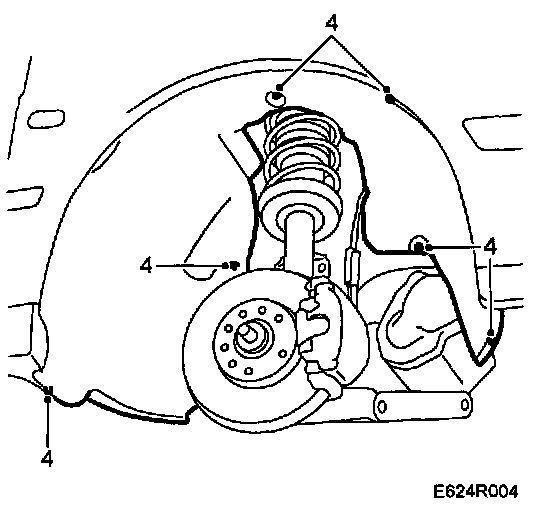

4 Fit the wing liner and tighten the screws.





5 Fit the wheel.
Tightening torque: 110 Nm (80 lbf ft)

IMPORTANT
The wheels must be hanging freely when tightening the wheel bolt

6 Lower the car.
