Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Diagnostic Trouble Code Menu

Diagnostic trouble codes

Read Values/Activate

Snapshot

System information

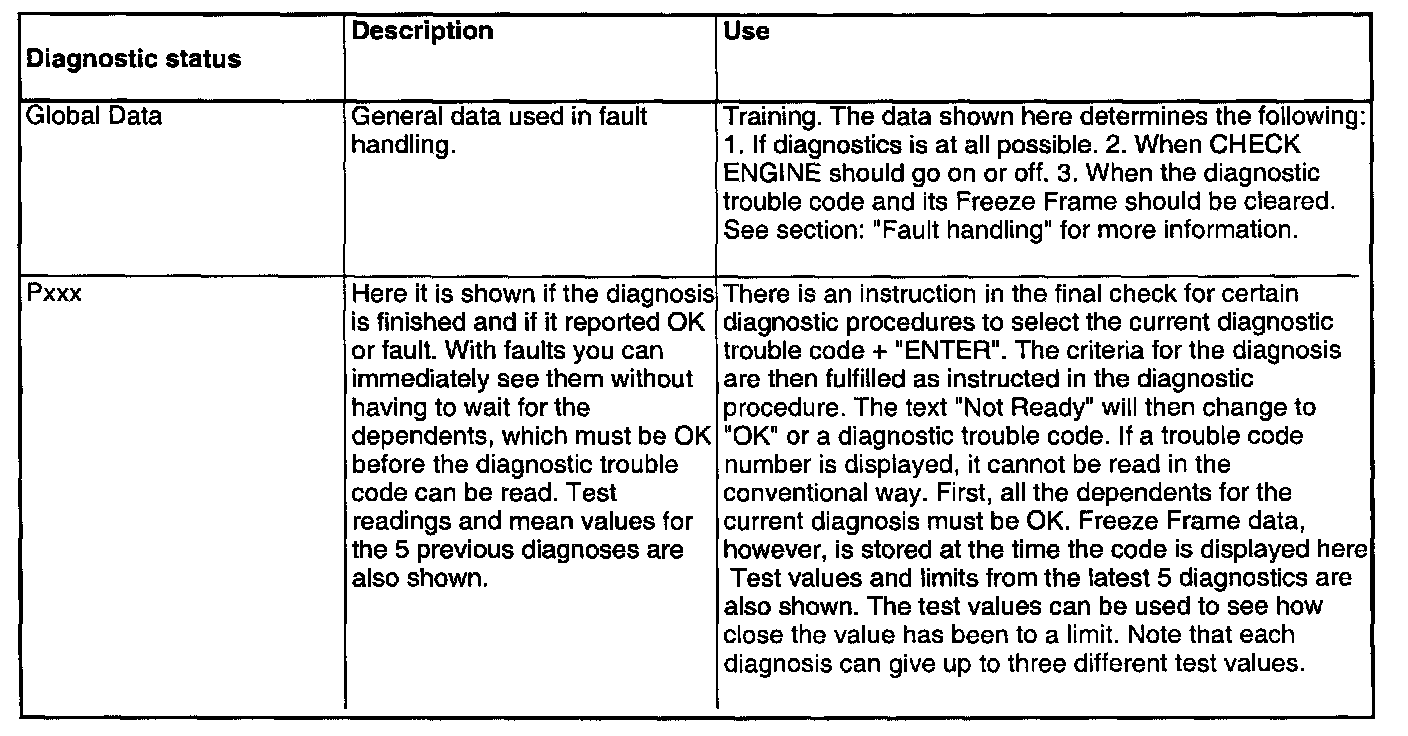

Diagnostic Status
Current information and history from diagnostics with dependents.

Freeze Frame:

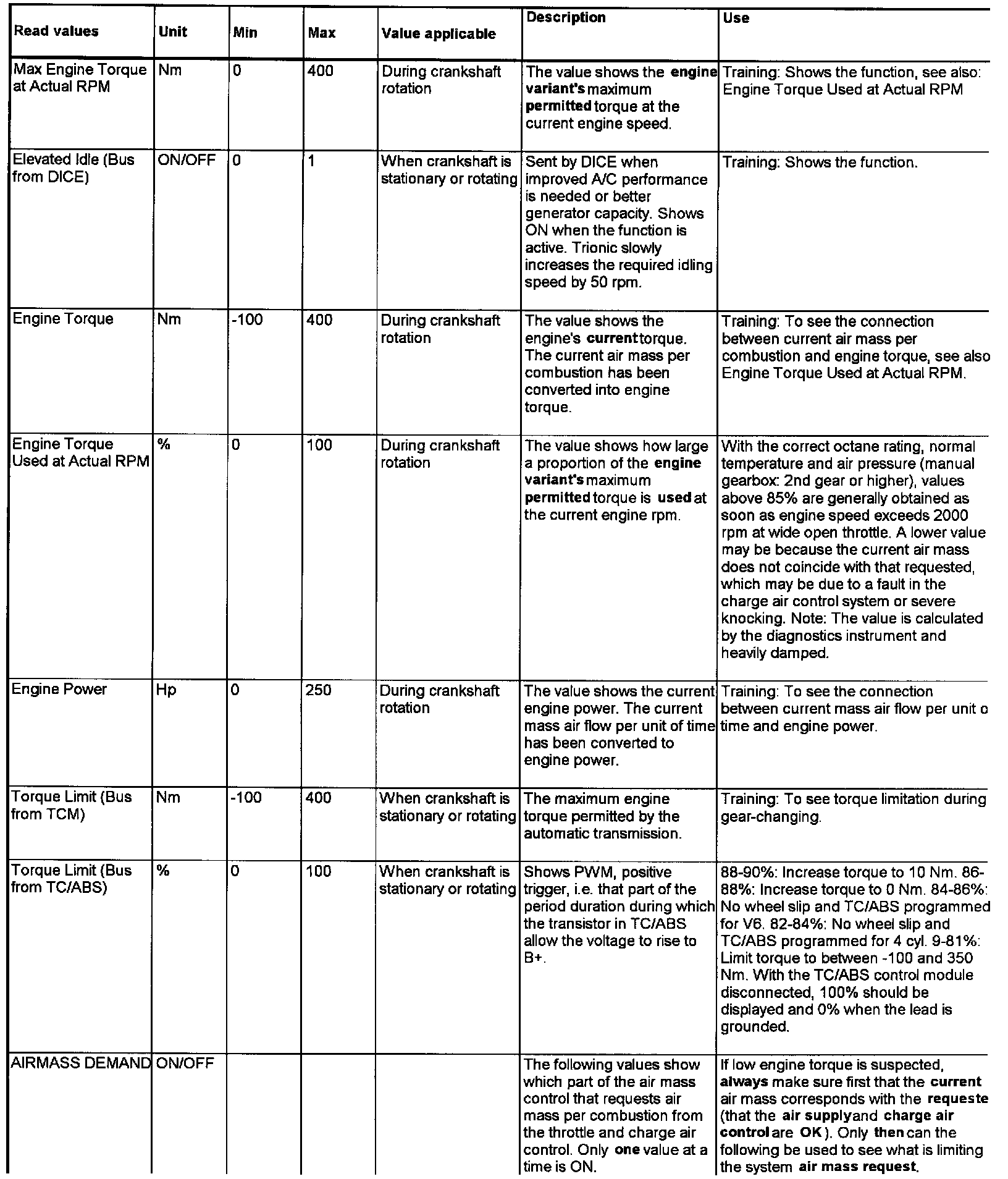

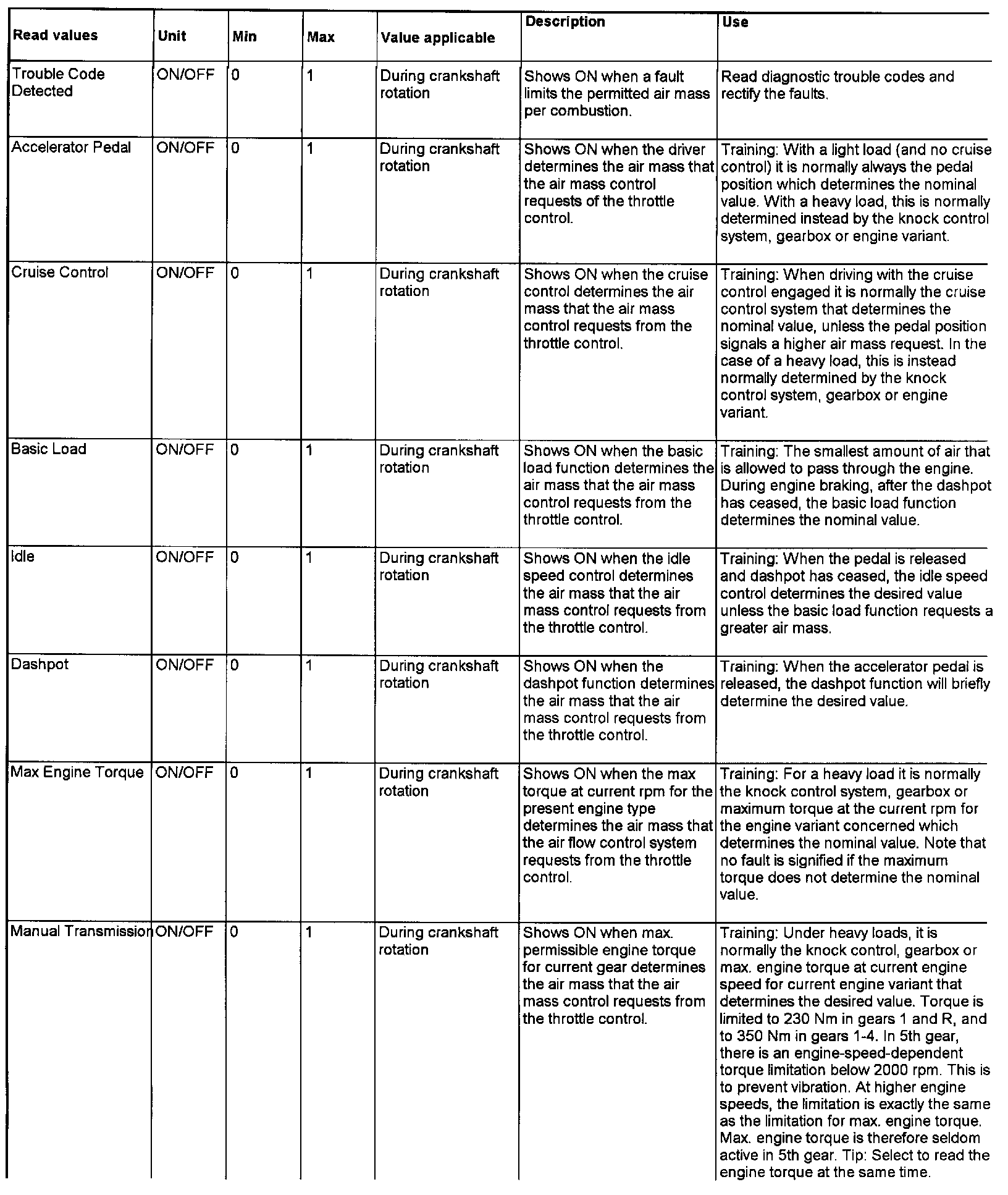

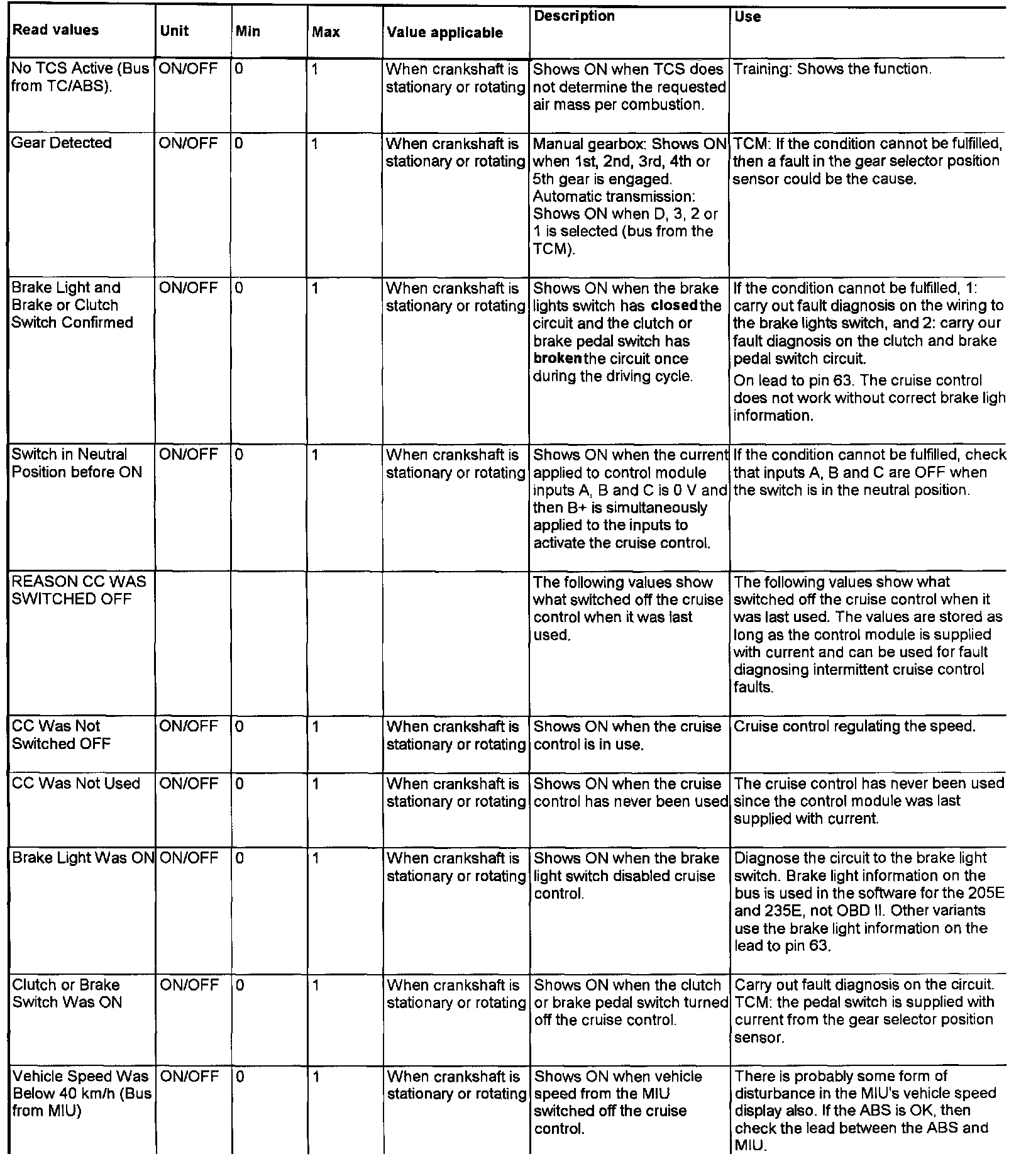

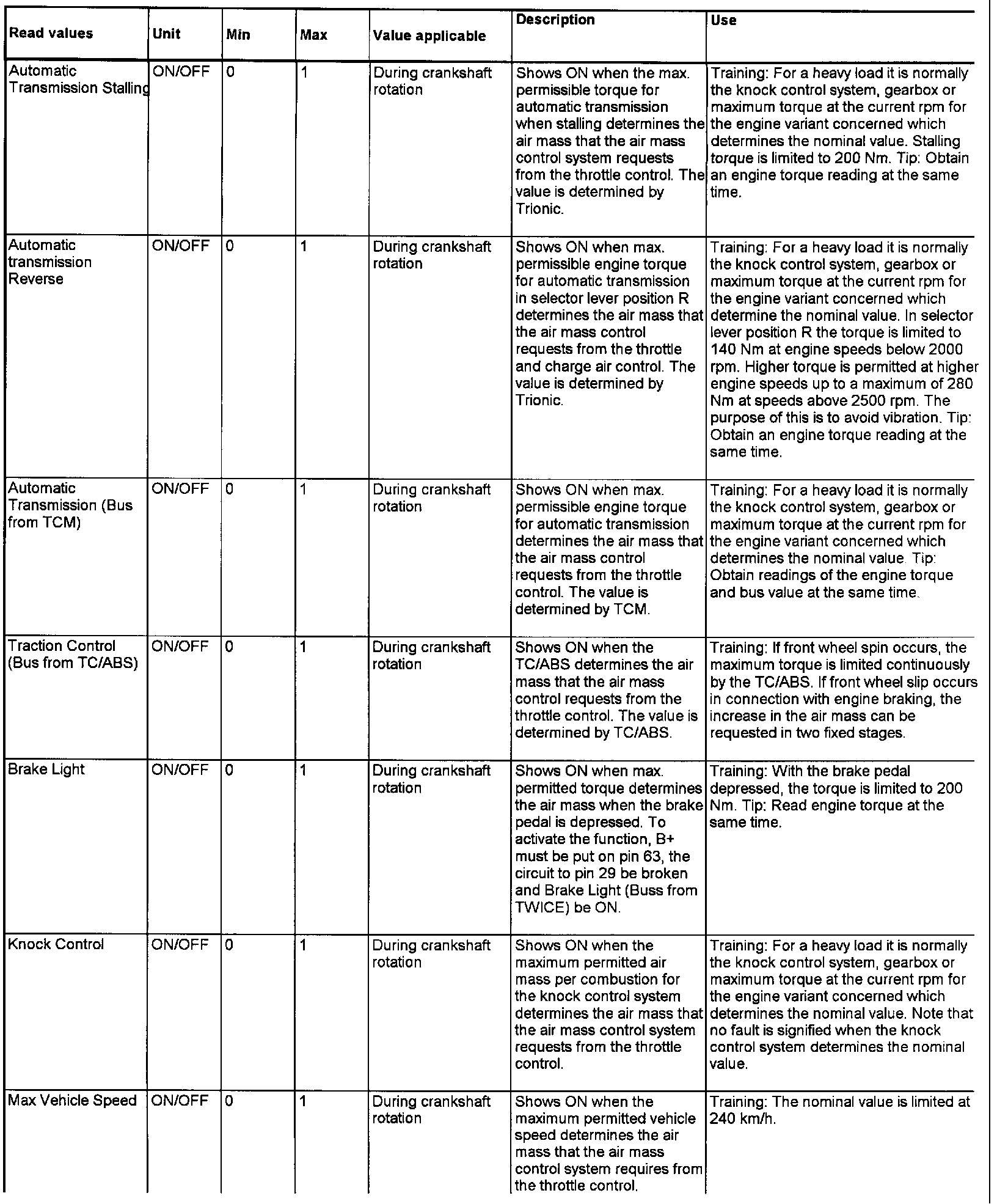

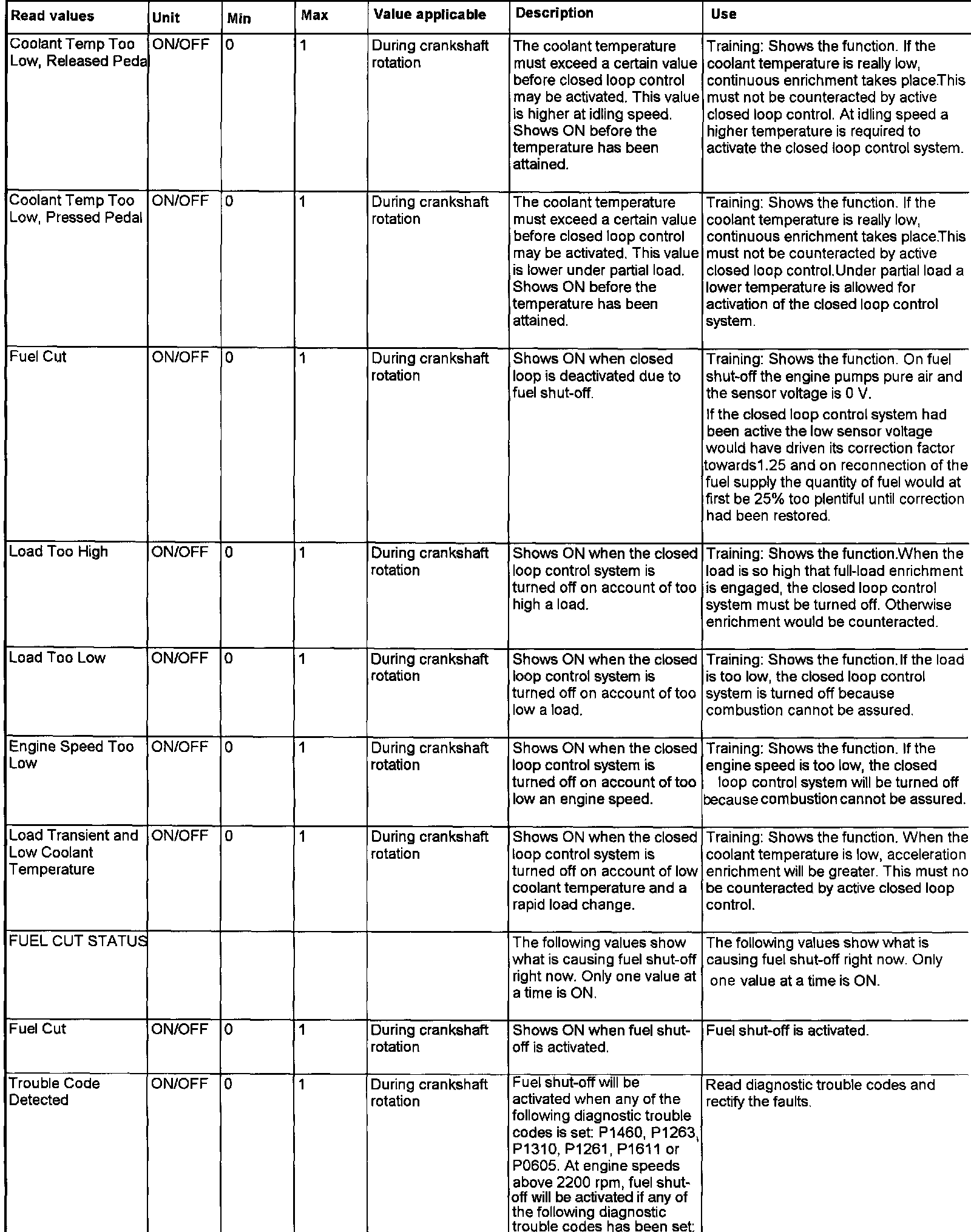

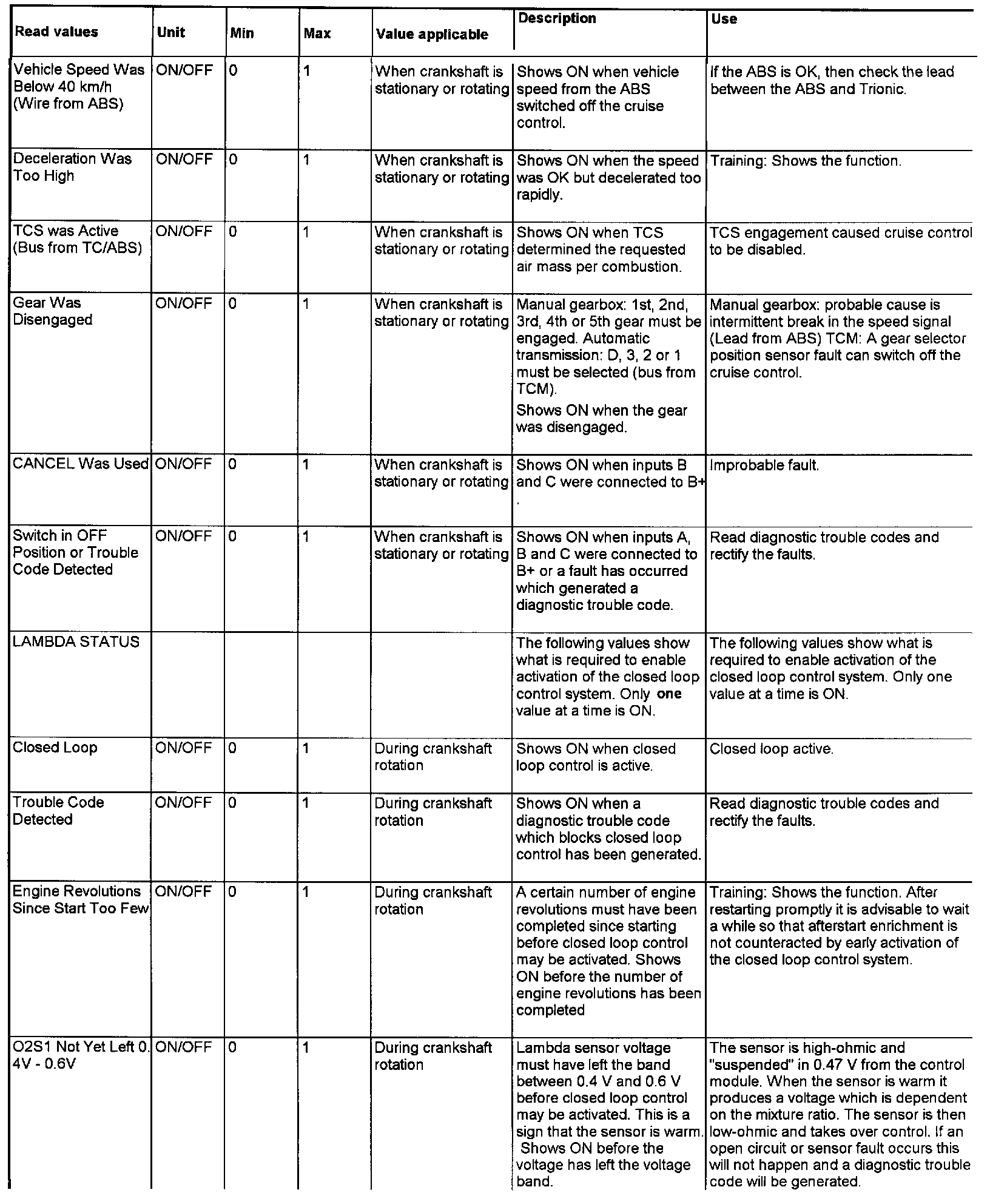

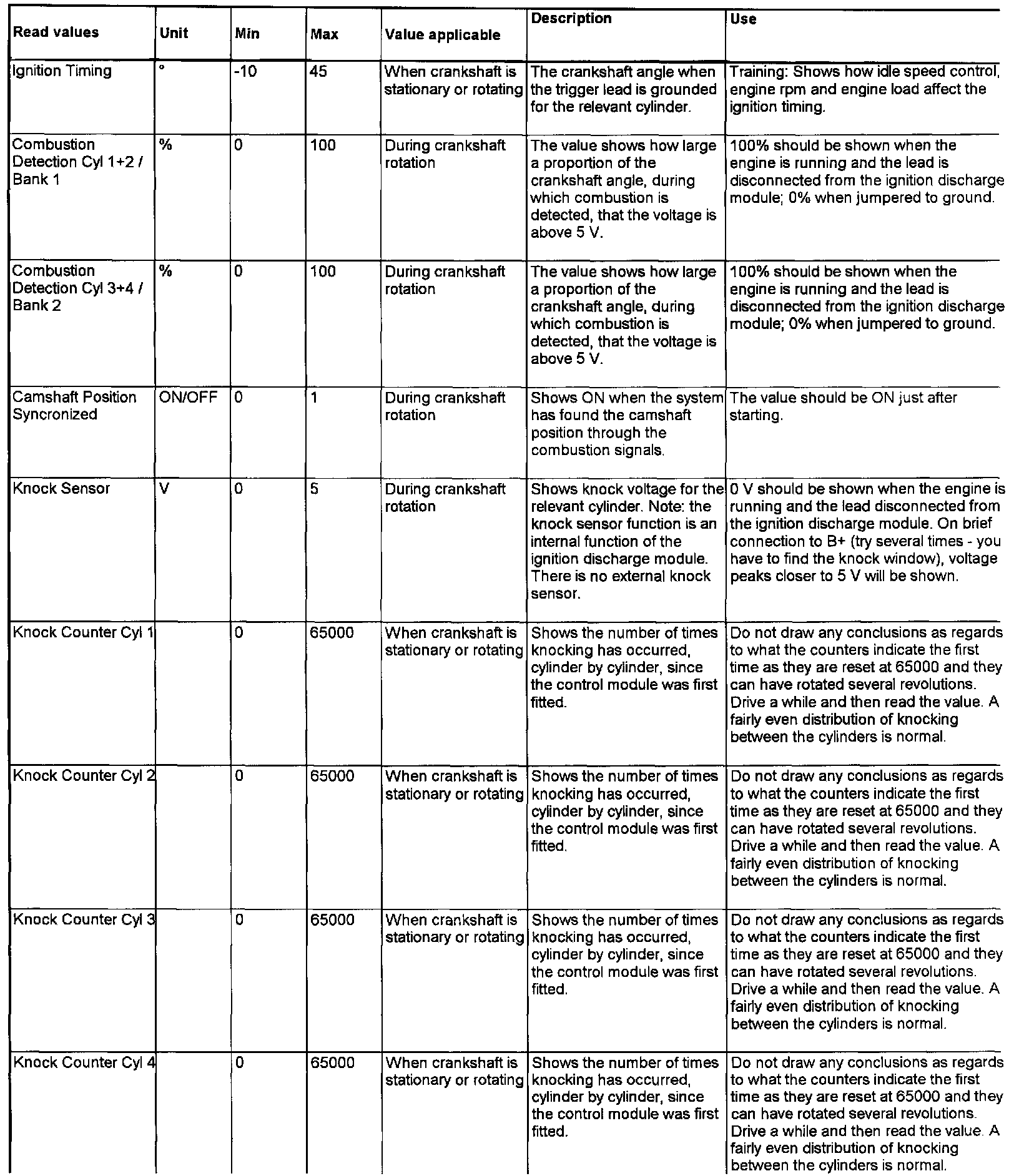

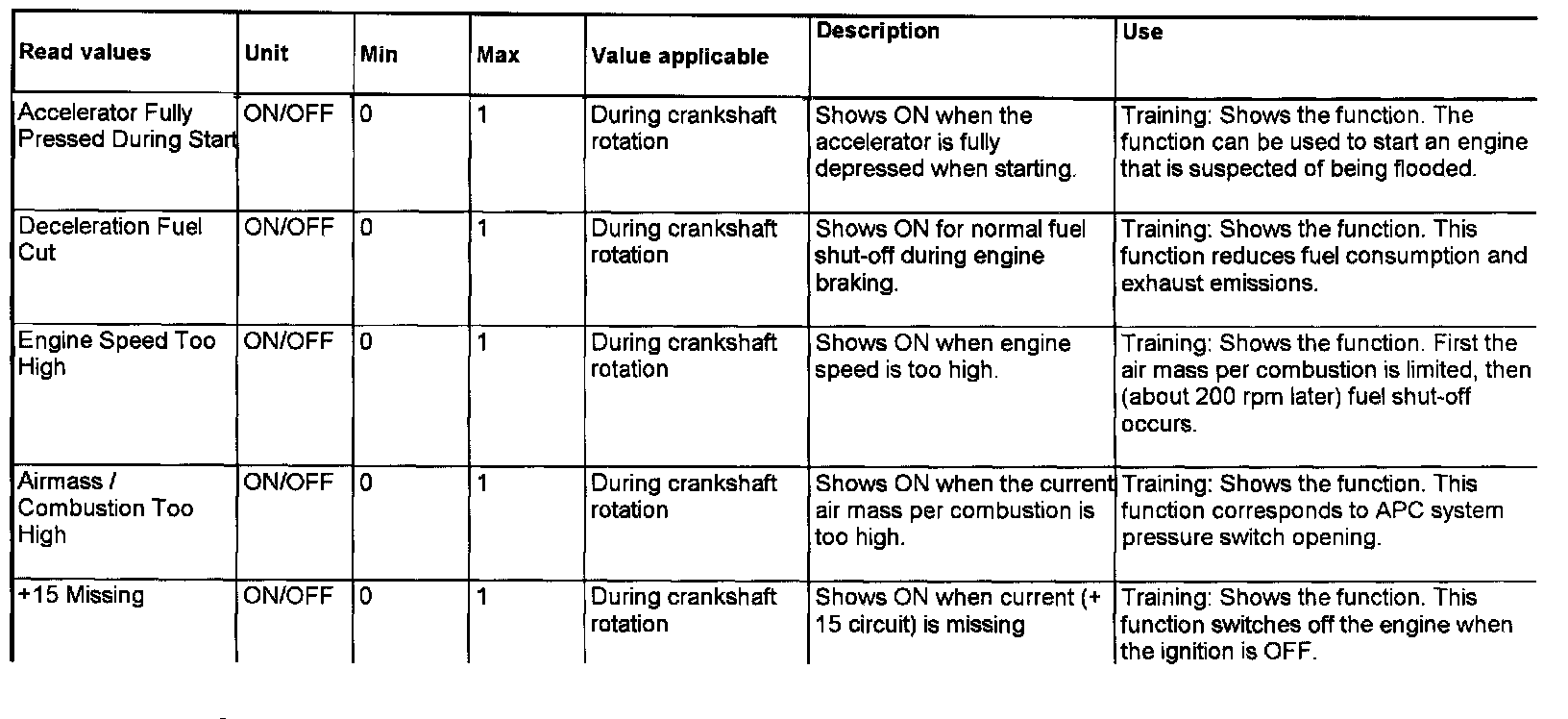

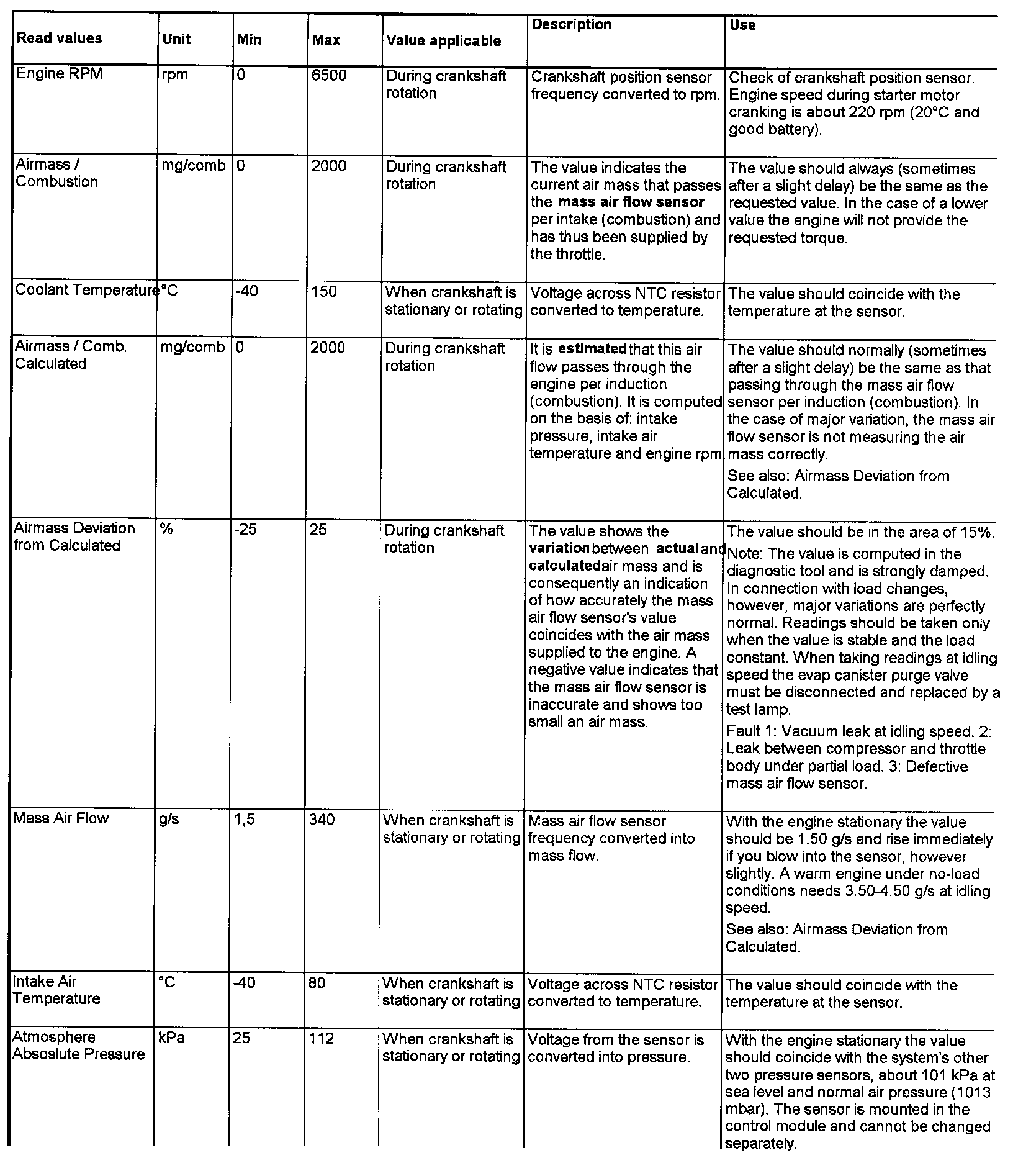

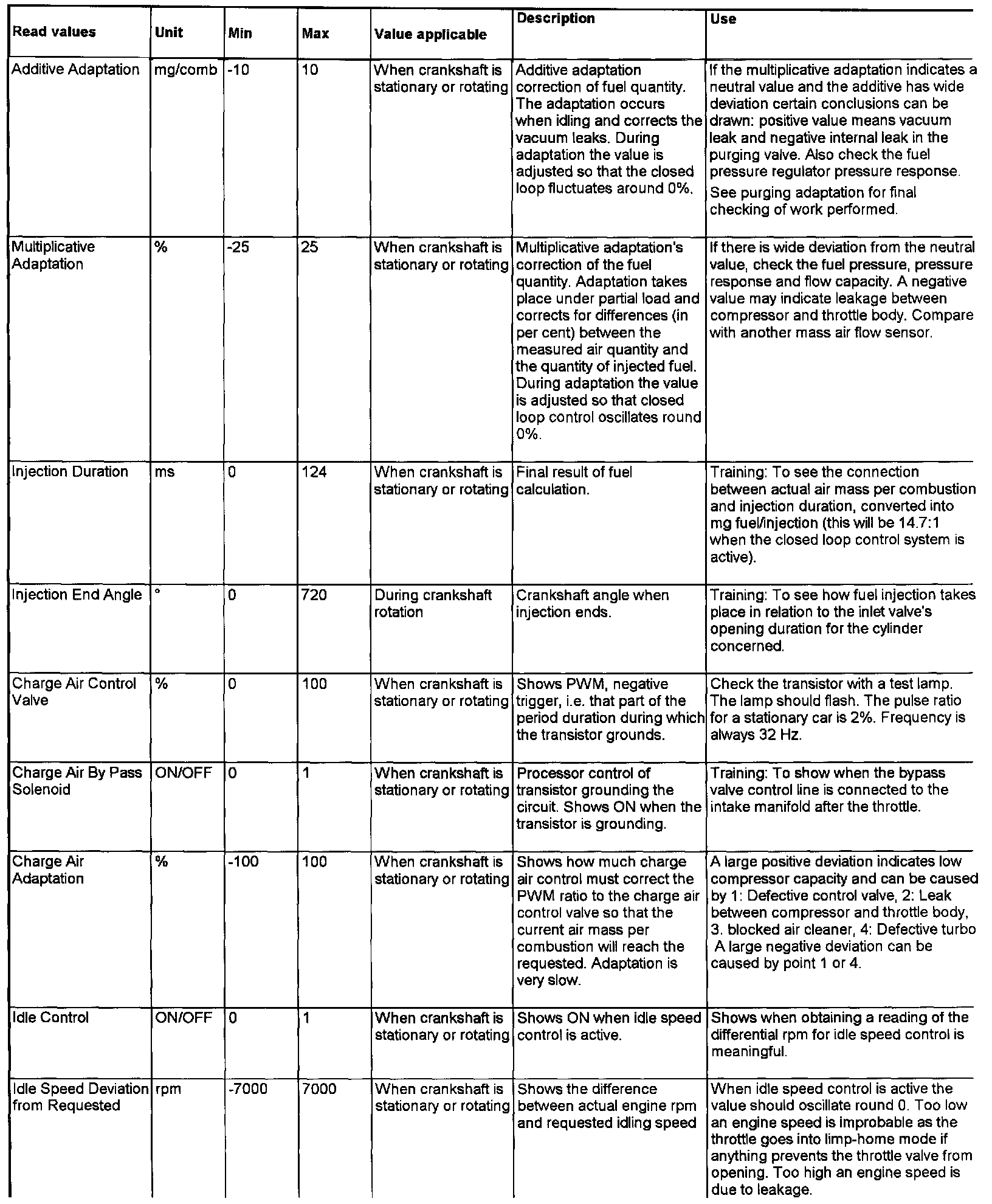

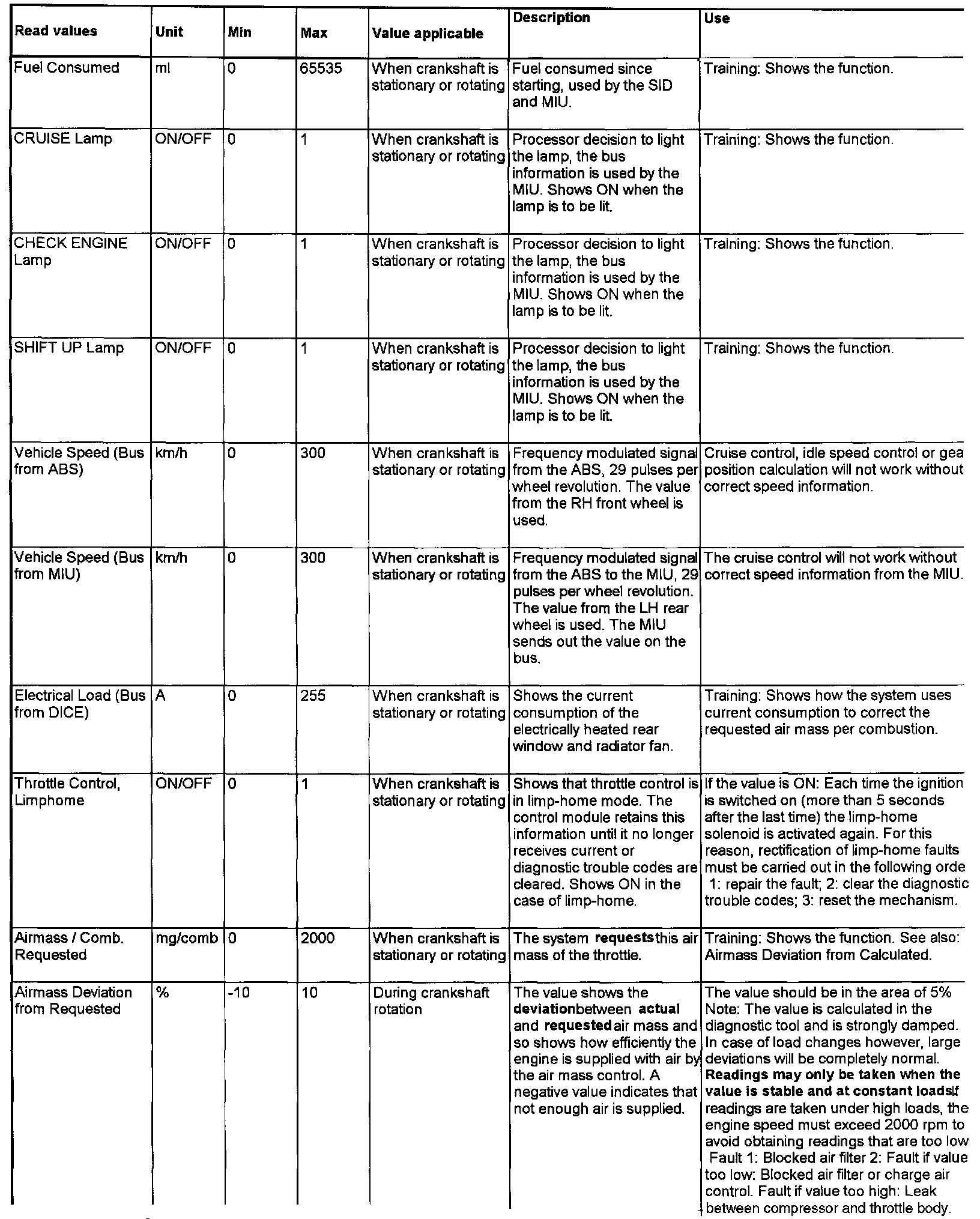

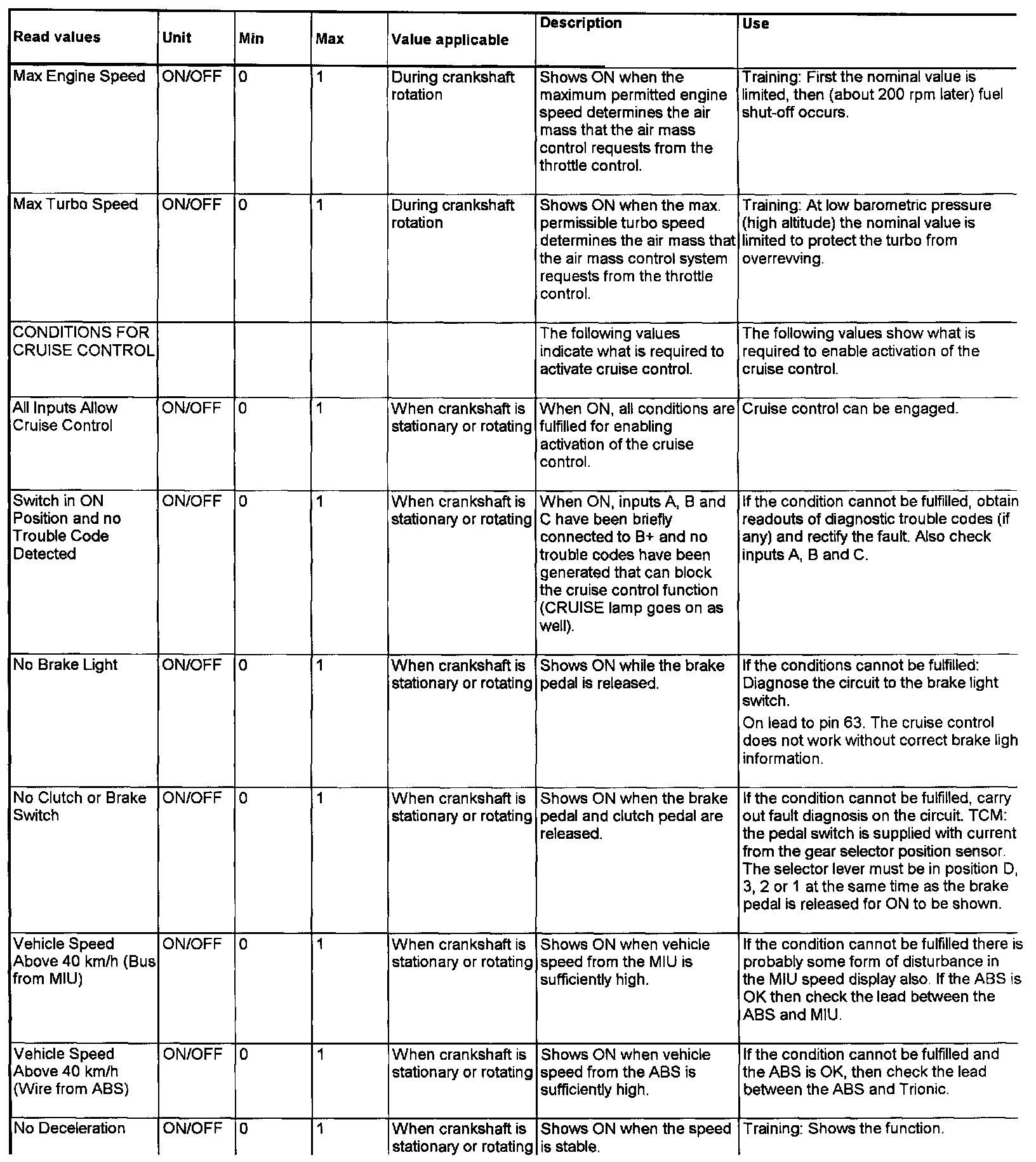

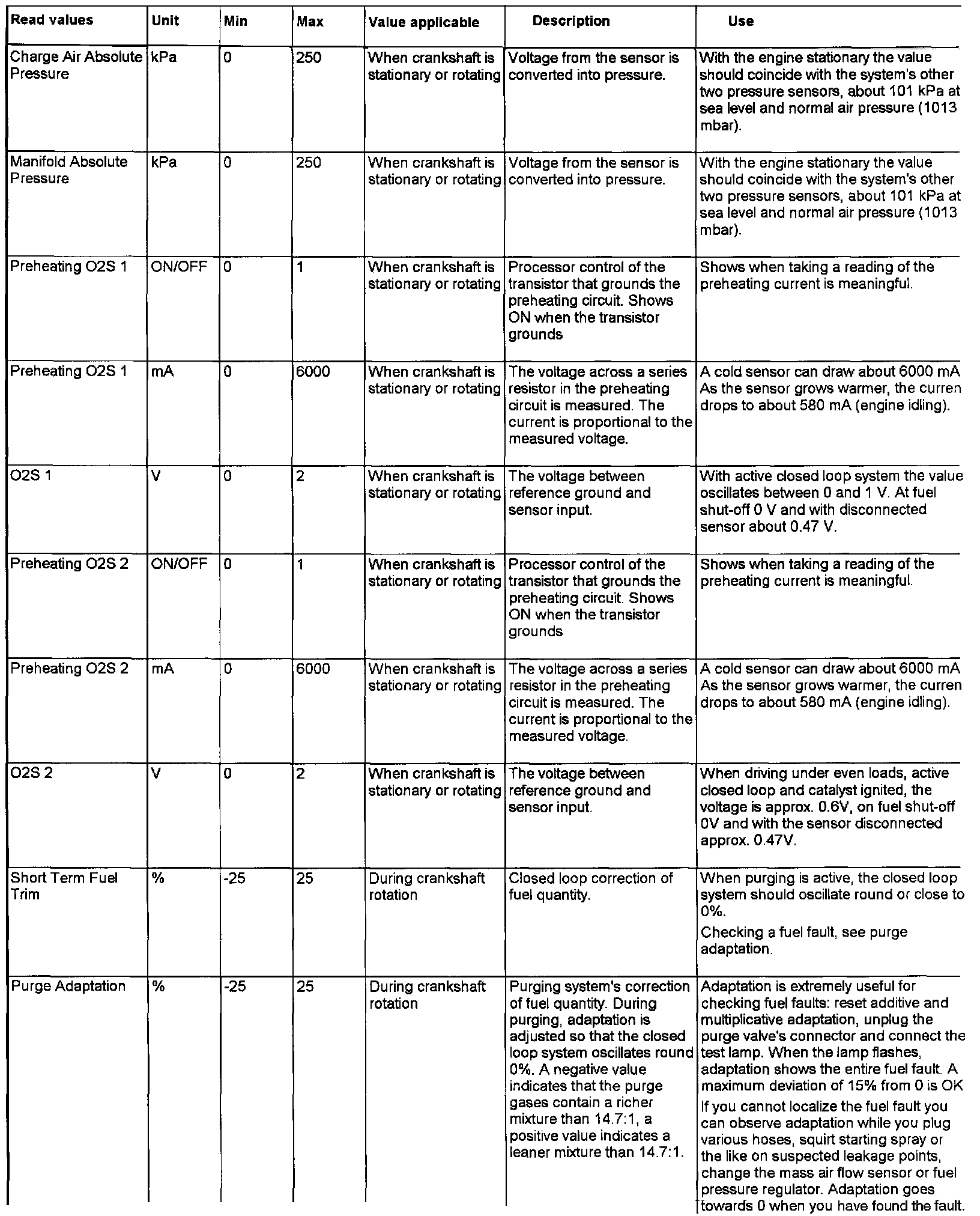

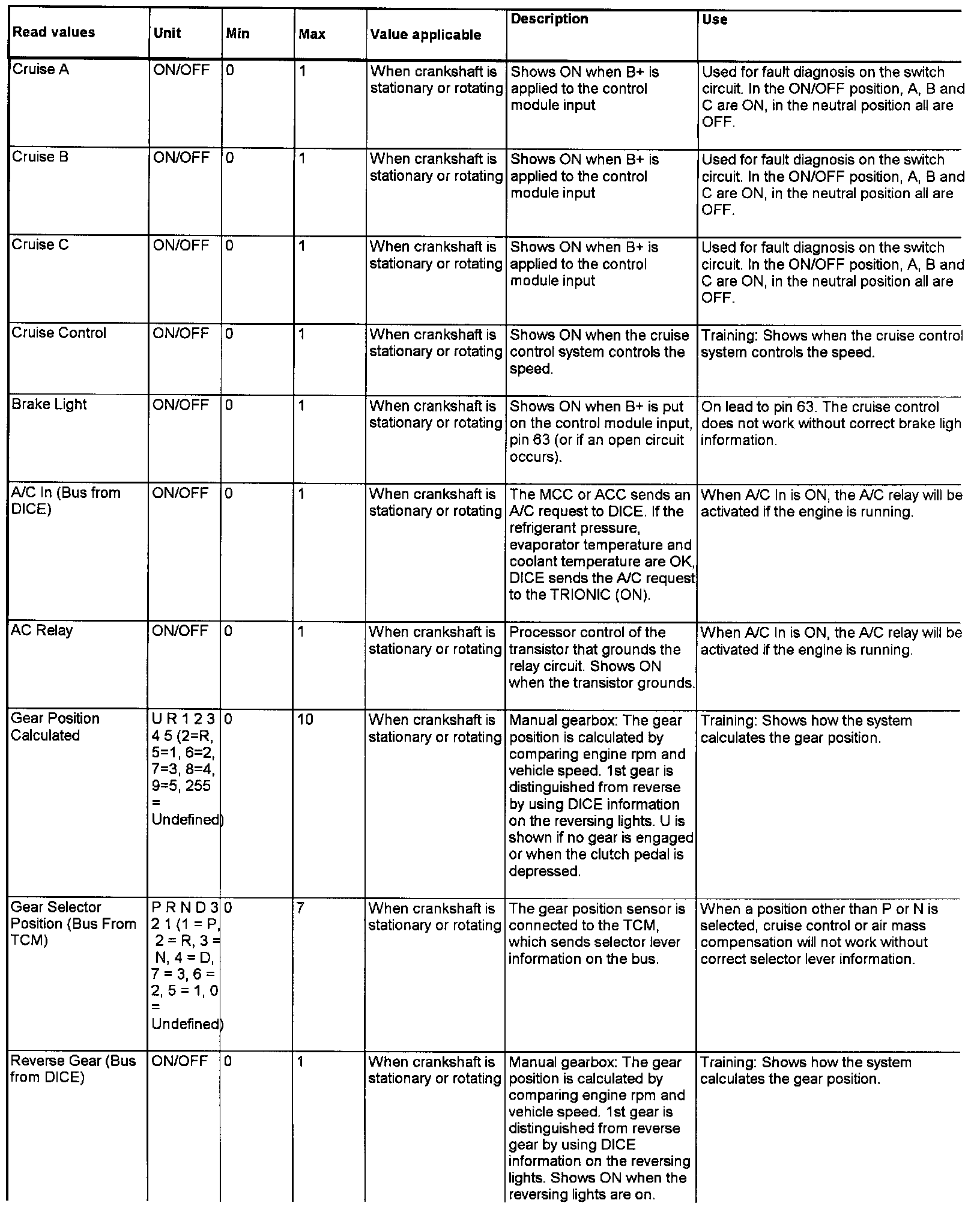

Menu "Read Values"

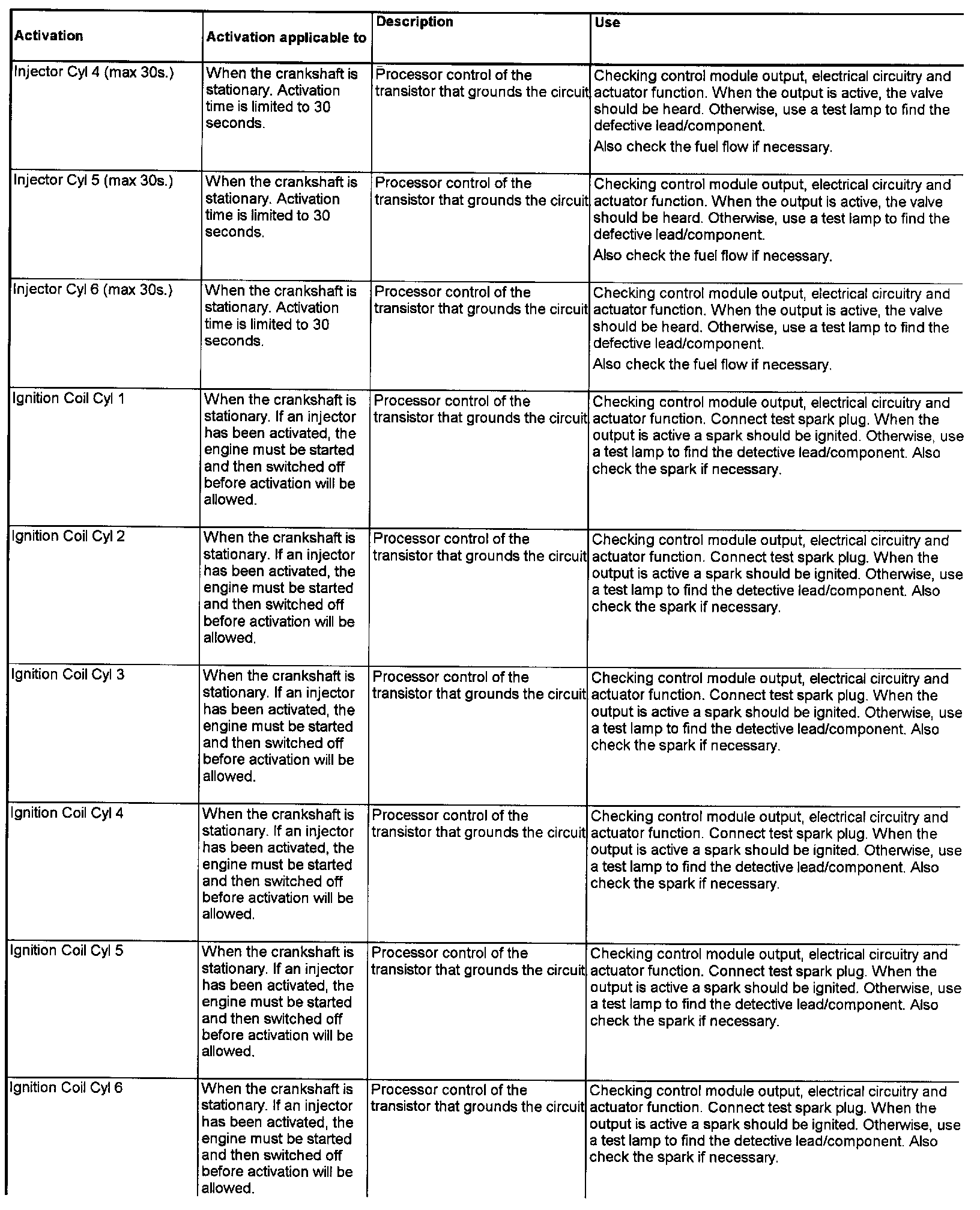

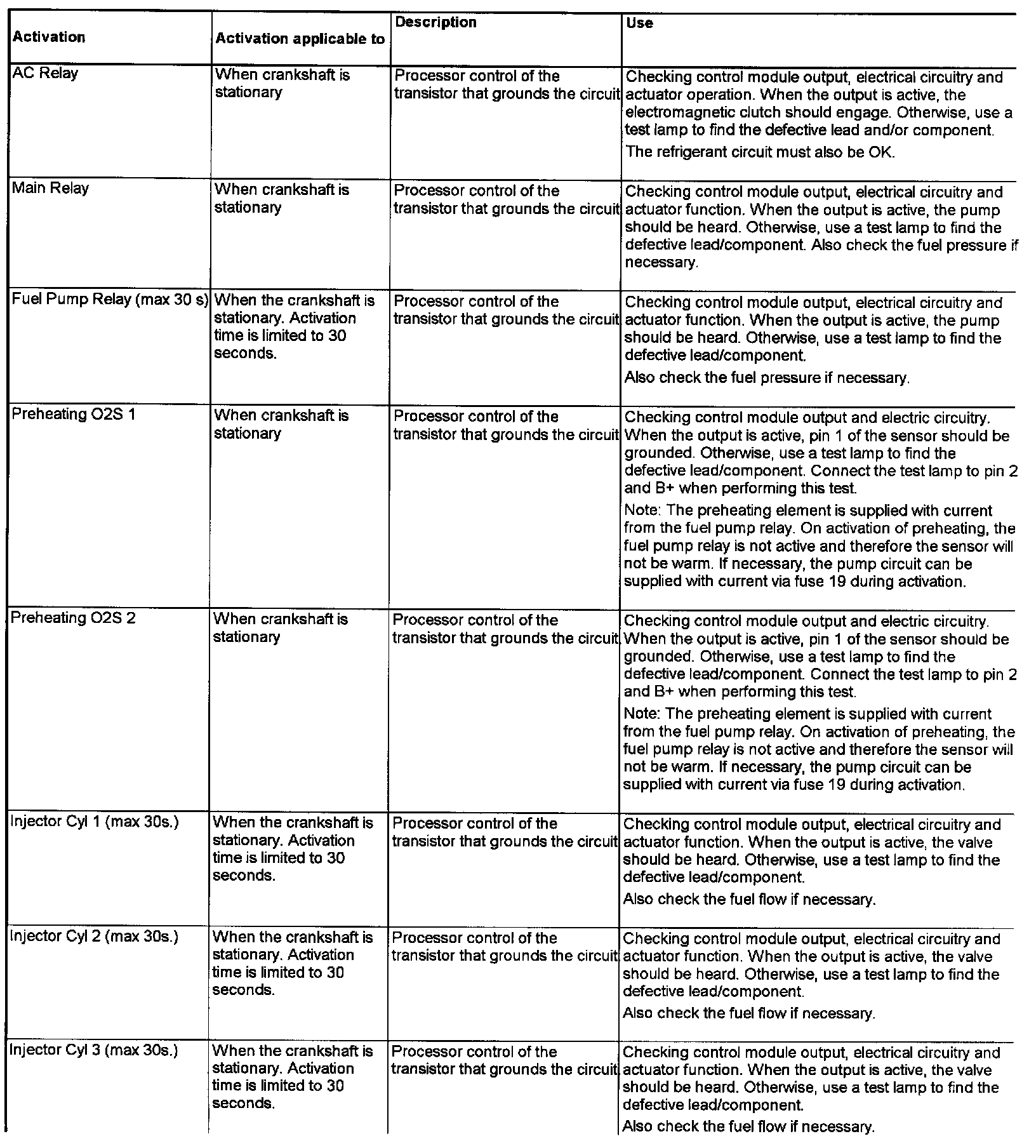

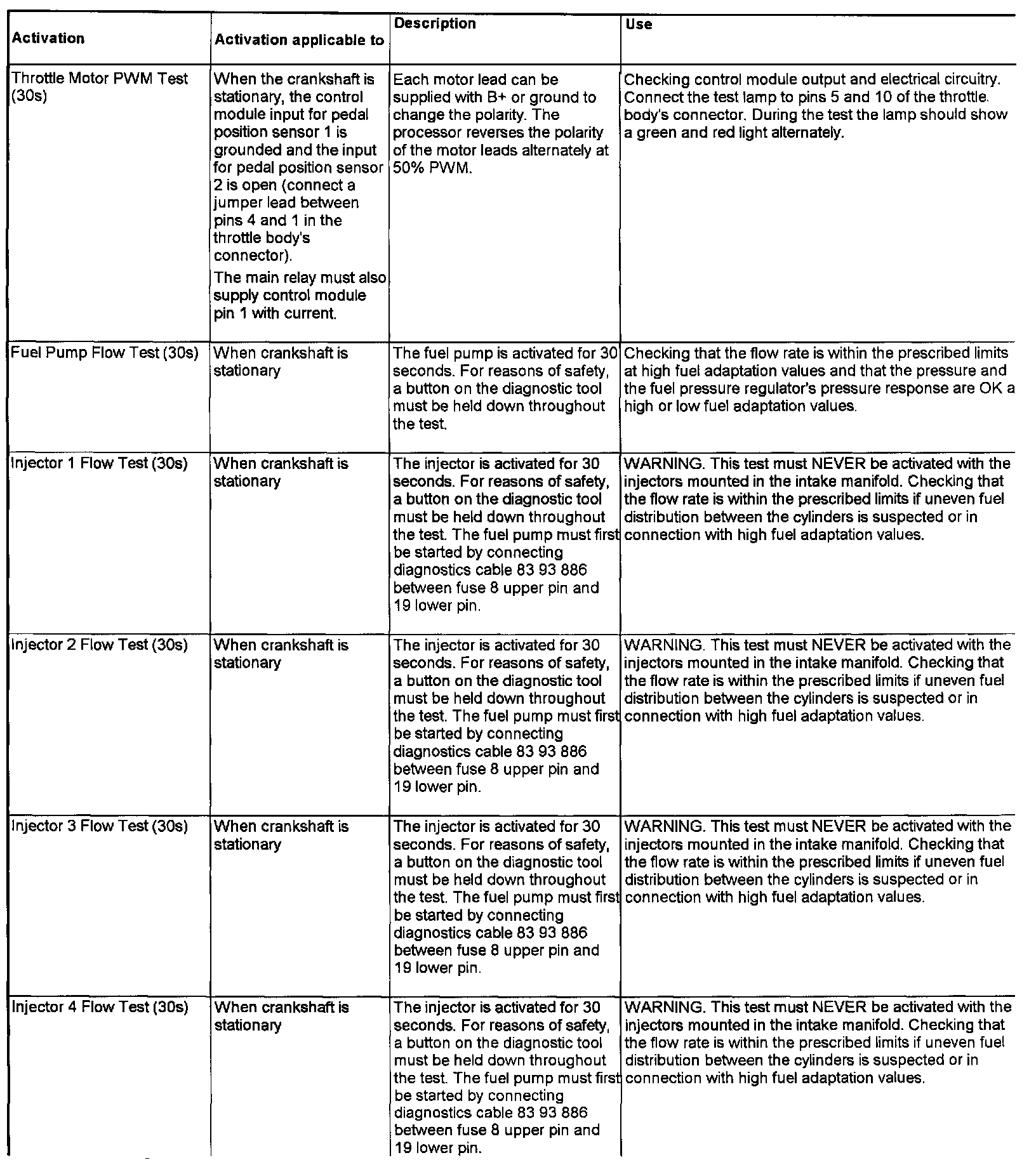

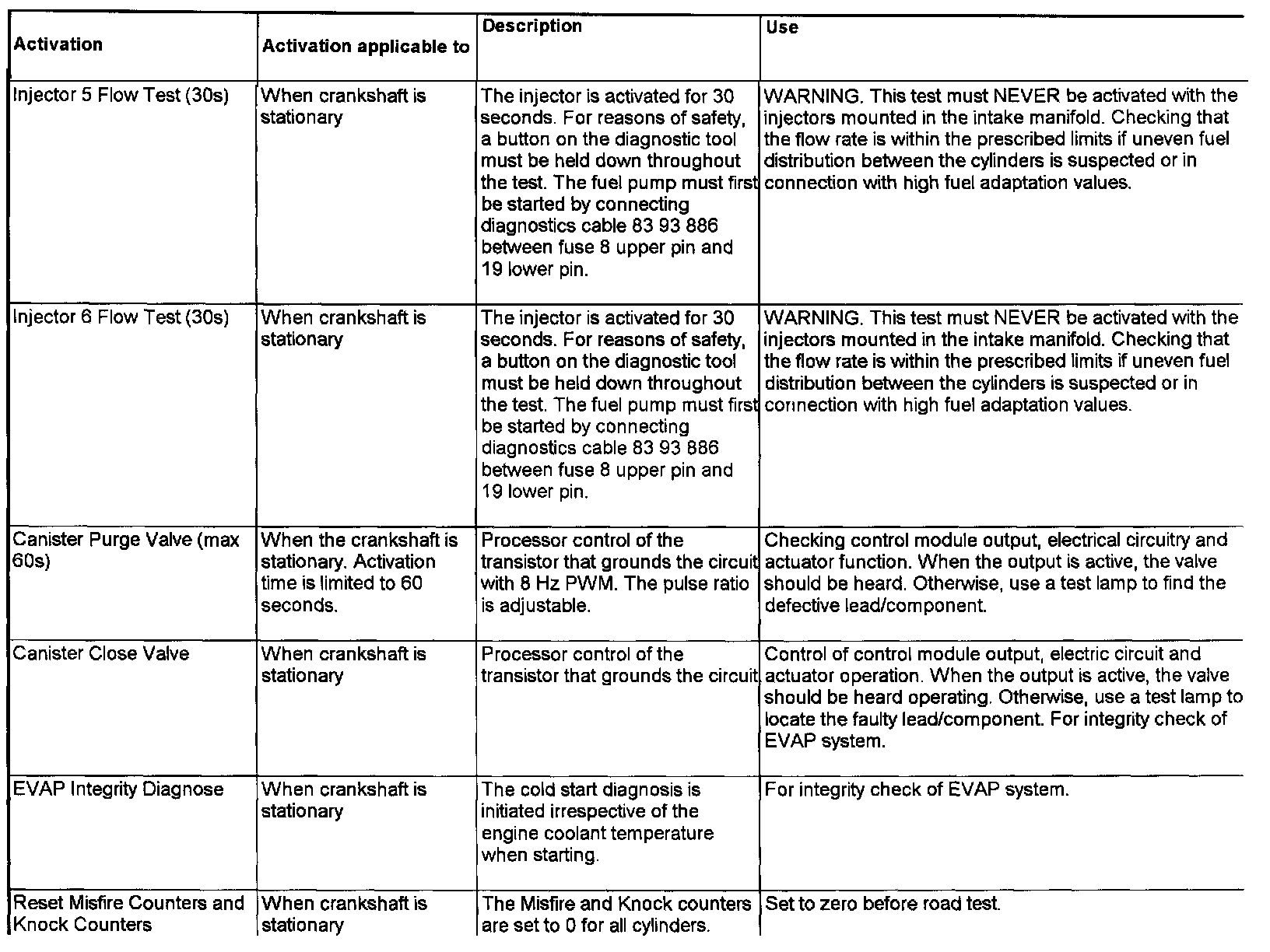

Menu "Activation"

















Menu "System Information"

Text Function
Vehicle Identification Number Vehicle Identification Number
SAAB Part Number: Saab part number for programmed control module.
Hardware Number: Suppliers serial number
Hardware Version Number: Saab hardware pan number.
Software Number: Saab software part number.
Software Version Number: Name of the data file programmed in the control module.
System Name: Engine type the program is intended for.
Repair Shop Code or Tester Serial #: Identity number assigned to the repair shop or diagnostic tool (Tech 2).
Programming Date: Latest programming date.
Diagnostic data Identifier: Shows the engine type and diagnostics version for which the software is intended:
