Direction Indicators, Front

Direction indicators, front

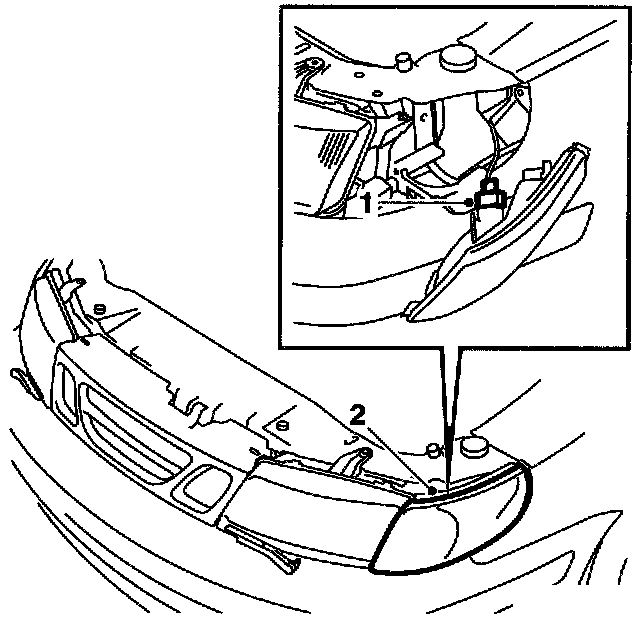

To remove





1 Unscrew the light cluster and pull the lamp forwards.
2 Turn the lamp holder anti-clockwise and lift it out completely.
3 Remove the light cluster.

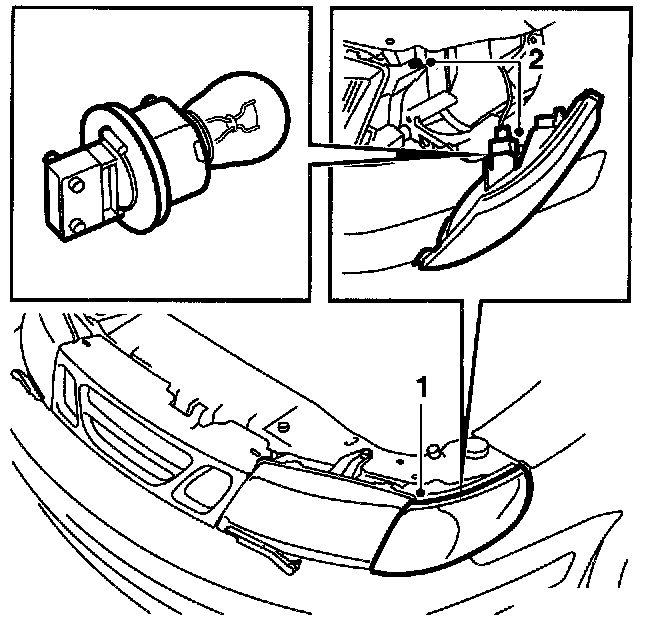

To fit





1 Insert the lamp and lampholder into the light cluster and turn it clockwise to fasten it.
2 Position the light cluster correctly and screw it in place. Make sure the plate nut is in the correct position.
