Outer Light Cluster, Rear 5D

To remove

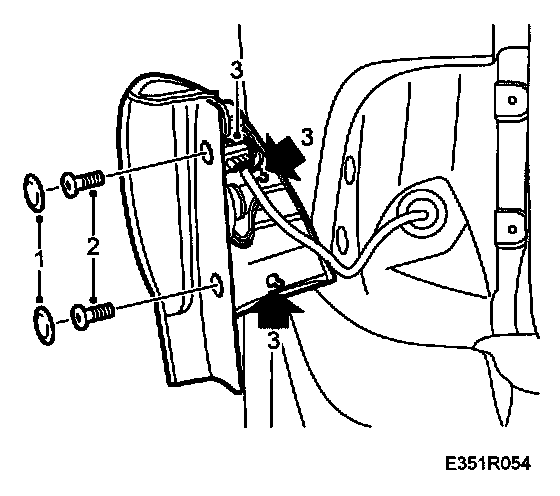

1 Remove the covers on the screws
2 Remove the screws.
3 Loosen the light cluster at an angle and pull out the retaining clips.
Unplug the connector.





4 Press in the clips and remove the plastic cover plate.
a Yellow lampholder: direction indicators
b Black lampholder: tall and brake lights

To fit





1 Press in the hooks and snap on the plastic cover plate.





2 Plug in the connector and push in the light cluster retaining clips. Screw on the light cluster.
3 Fit the covers.
