Light Cluster In Boot Lid 4D

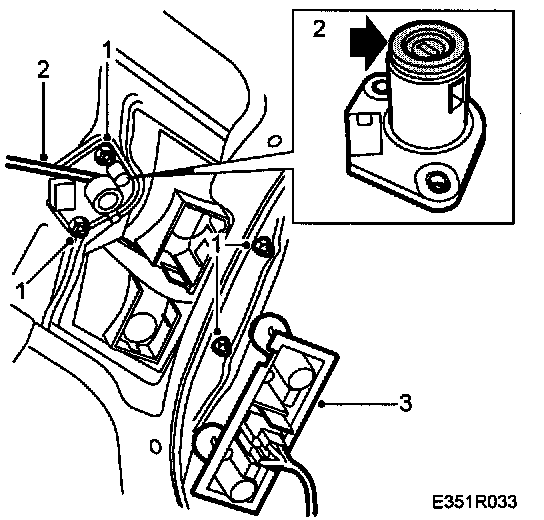

To remove
1 (RH side) Remove the handle
2 Remove the trim on the side in question.
3 Loosen the lamp holder.





4 (RH side) Loosen the lock arm and remove the lock with gasket.
5 Unscrew the lamp retaining nuts.

To fit





1 Fit the lamp and its retaining nuts.
2 (RH side) Fit the lock with gasket and the lock arm.
3 Fit the lamp holder.





4 (RH side) Fit the handle.
5 Fit the trim.

Replacement of lamp bulb





1 (RH side) Remove the handle.
2 Remove the trim on the side in question.





3 Loosen the lamp holder.
4 Remove and change bulb.
5 Fit the bulb holder.
6 (RH side) Fit the handle.
7 Fit the trim.
